SIMET SCB 25 Al/Cu 80110 SIMBLOCK μπλοκ διακλάδωσης διανομής, μαύρο 81501007

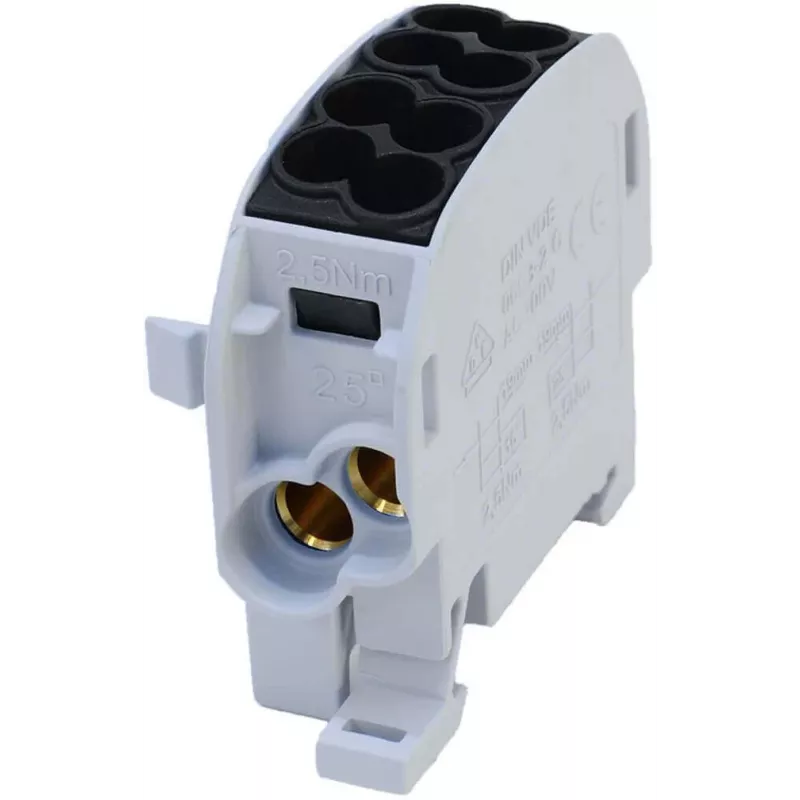

The SIMET SCB 25 Al/Cu 80110 SIMBLOCK is a high-quality branch distribution block designed for reliable power distribution in electrical installations. It accommodates main conductors up to 25 mm² and branch conductors from 1.5 to 10 mm², compatible with both aluminum and copper conductors. This block features one main input and four branch outputs, rated at 100 A and 1000 V AC/DC, making it suitable for a wide range of industrial and commercial applications.

Advantages

Robust construction with a polyamide housing and tinned copper internal conductor ensures excellent conductivity and durability. The screw terminals provide secure and easy connections, while the black color offers a professional appearance. The block can be mounted on DIN rail (TH35) or directly with screws, offering flexibility in installation.

Suitable for

• Power distribution in electrical panels and cabinets
• Branching of main conductors in industrial and commercial settings
• Use with aluminum or copper conductors

Key specifications

• Main conductor cross-section: 25 mm²
• Branch conductor cross-section: 1.5 - 10 mm²
• Rated current: 100 A
• Rated voltage: 1000 V AC/DC
• Number of poles: 1
• Number of main inputs: 1
• Number of branch outputs: 4
• Mounting type: DIN rail (TH35) / screw mount
• Terminal type: Screw terminals
• Housing material: Polyamide (PA)
• Internal conductor material: Tinned copper
• Color: Black
• Degree of protection: IP20
• Operating temperature range: -25°C to +70°C

Recommendations

For optimal performance, ensure proper tightening torque as per manufacturer guidelines. Suitable for use in dry indoor environments only.
