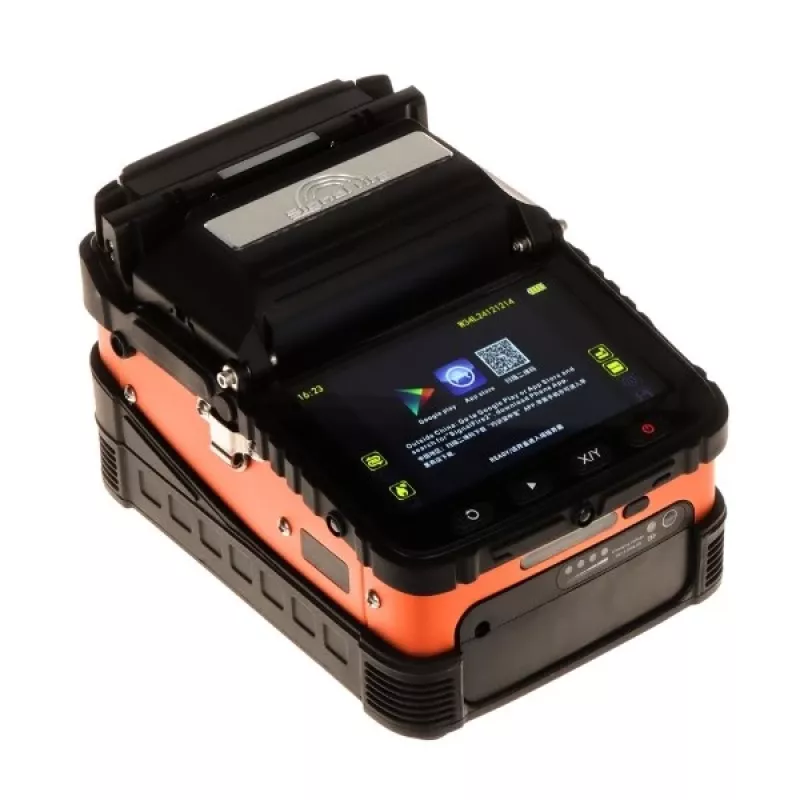

Signal Fire AI-5 Συσκευή συγκόλλησης ινών με ευθυγράμμιση πυρήνα

The Signal Fire AI-5 is a high-performance fiber optic fusion splicer designed for professional field and laboratory use. Featuring advanced core alignment technology with 6 motors, it delivers low splice loss and high return loss for single-mode and multimode fibers. The AI-5 is built to withstand harsh environments with dust, water, and shock resistance, making it ideal for FTTH, backbone, and data center installations.

Advantages

Fast 6-second splice time and 15-second heating cycle maximize productivity. The 7800 mAh lithium battery supports up to 240 splice/heating cycles per charge, ensuring all-day operation. The 5-inch TFT color LCD provides clear 300x magnification for precise fiber alignment. Durable design with IP rating ensures reliability in outdoor and demanding conditions.

Suitable for

• FTTH (Fiber to the Home) deployment and maintenance
• Telecommunication backbone network splicing
• Data center fiber optic cabling
• CATV and LAN fiber optic installations
• Emergency restoration and field repair

Key specifications

• Splicing Method: Fusion Splicing with Core Alignment (6 Motors)
• Applicable Fibers: SM (G.652, G.657), MM (G.651), DS (G.653), NZDS (G.655)
• Typical Splice Loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS)
• Return Loss: >60dB
• Splicing Time: 6 seconds (typical)
• Heating Time: 15 seconds (typical for 60mm sleeve)
• Electrode Life: 3000 arcs
• Battery: 7800 mAh Lithium, up to 240 cycles
• Display: 5-inch TFT Color LCD, 300x magnification
• Fiber Diameter: Cladding 80-150 μm, Coating 100-1000 μm
• Tension Test: 2.0N
• Operating Temperature: -15 to +50 °C
• Power Supply: AC 100-240V, DC 13.5V/4A
• Data Interface: USB 2.0
• Durability: Dust, Water, and Shock Resistant

Recommendations

For optimal performance, use with Signal Fire brand cleavers and protection sleeves. The AI-5 is a reliable choice for technicians requiring fast, accurate splicing in challenging environments. Regular electrode maintenance will extend service life.
