Siemens SIRIUS ACT Μονάδα LED με ενσωματωμένο LED AC/DC 24V Λευκό

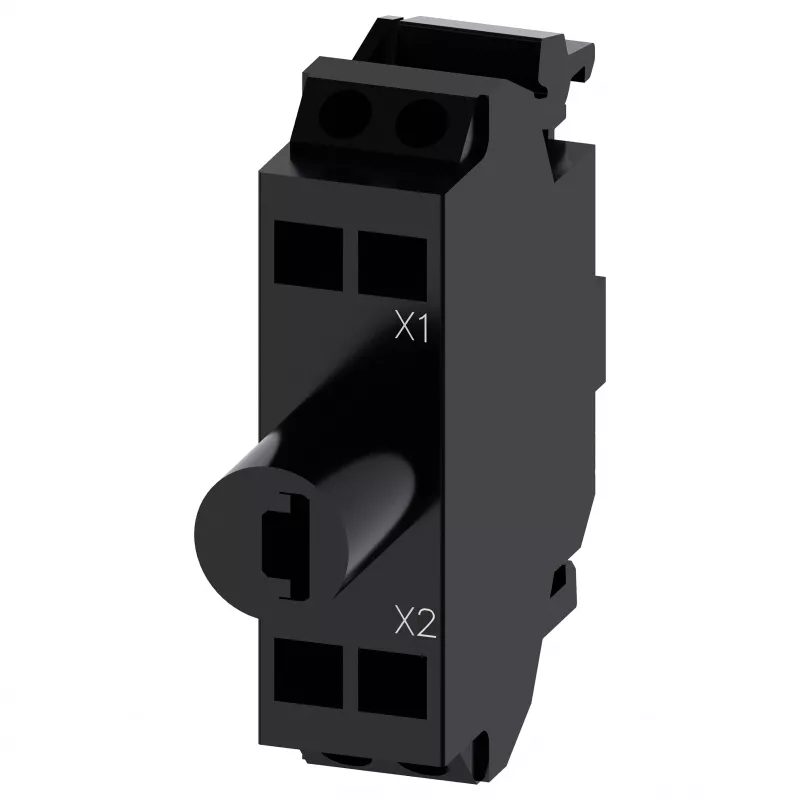

The Siemens SIRIUS ACT LED Module with integrated LED is a high-quality illumination component designed for use with SIRIUS ACT command devices. Operating at 24 V AC/DC, this white LED module provides clear visual indication for industrial control panels and machinery. With a long lifespan of 100,000 hours and low power consumption of 0.43 W, it offers reliable and energy-efficient performance.

Advantages

Integrated LED eliminates the need for separate light sources, simplifying installation and reducing maintenance. The screw terminal connection ensures secure and easy wiring. With IP20 protection, it is suitable for indoor use in control cabinets and panels.

Suitable for

• Industrial control panels
• Machine building
• Process automation
• Building automation

Key specifications

• Product Type: LED Module
• Series: SIRIUS ACT
• Light Source: Integrated LED
• Operating Voltage: 24 V AC/DC
• Light Color: White
• Current Consumption: 18 mA
• Power Consumption: 0.43 W
• Connection Type: Screw Terminal
• Mounting Type: Base Mounting (for holder)
• Compatibility: SIRIUS ACT Command Devices
• Operating Temperature: -25 to +70 °C
• Storage Temperature: -40 to +80 °C
• Protection Class (IP): IP20
• Lifespan: 100,000 hours
• Housing Material: Plastic
• Number of LEDs: 1
• Terminal Design: Screw-type
• Approvals: CE, UL, CSA, CCC, EAC

Recommendations

For optimal performance, use with Siemens SIRIUS ACT mounting bases and actuators. Ensure proper voltage supply within specified range.
