Siemens SIMATIC RF MDS D100 Δίσκος πομποδέκτη 6GT2600-0AE00

In industrial environments, tracking assets and products reliably is a constant challenge. The Siemens 6GT2600-0AE00 transponder disk solves this by providing a robust, high-frequency RFID tag that attaches directly to items, enabling automated identification and production control.

Who is it for

This transponder is for system integrators and manufacturing engineers who need to track workpieces, tools, or containers in automated production lines. It works with SIMATIC RF200, RF300, and RF600 readers, making it suitable for asset tracking and production control applications.

Main features

• High-frequency RFID technology at 13.56 MHz, compliant with ISO 15693
• 2 KB FRAM memory for fast, high-endurance data storage
• Rugged disk design with IP68 protection for harsh industrial conditions
• Mounts by gluing or screwing to flat surfaces
• Operates in temperatures from -25 to +85 °C

Specifications

• Product type: Transponder
• Series: SIMATIC RF200/RF300/RF600

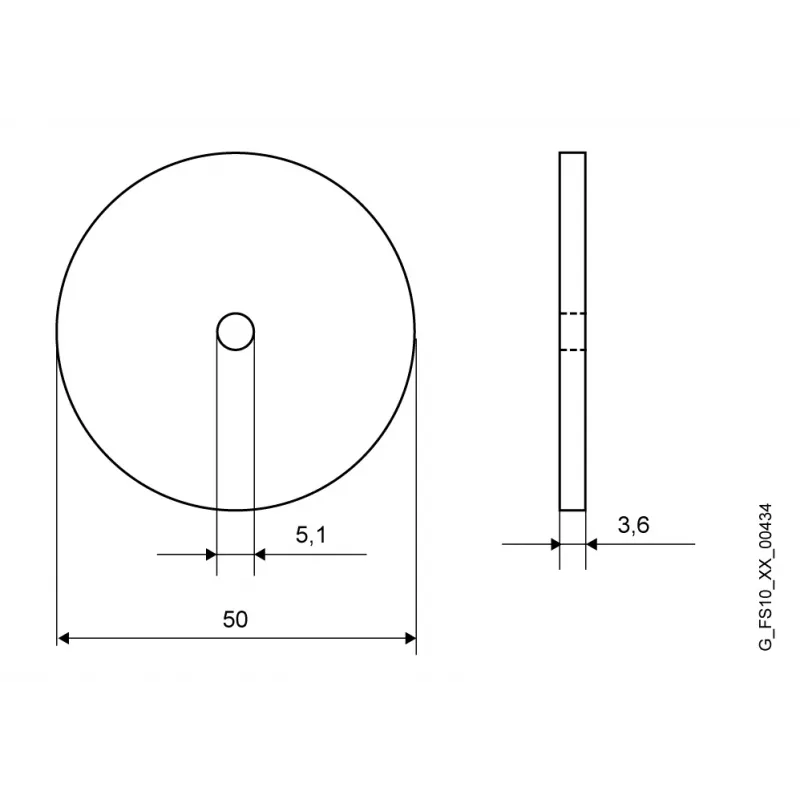

• Form factor: Disk (MDS D100)
• Operating frequency: 13.56 MHz
• RFID standard: ISO 15693
• Memory type: FRAM
• Memory size: 2048 bytes
• Read/write cycles: 10^10
• Data retention: 10 years
• Protection class: IP68
• Operating temperature: -25 to +85 °C
• Storage temperature: -25 to +85 °C
• Housing material: PBT
• Mounting: Glue, screw
• Compatibility: SIMATIC RF200, RF300, RF600 readers

Tips

For optimal performance, mount the transponder on a non-metallic surface or use a spacer if metal is unavoidable. Ensure the reader antenna is aligned within the specified read range for reliable communication.
