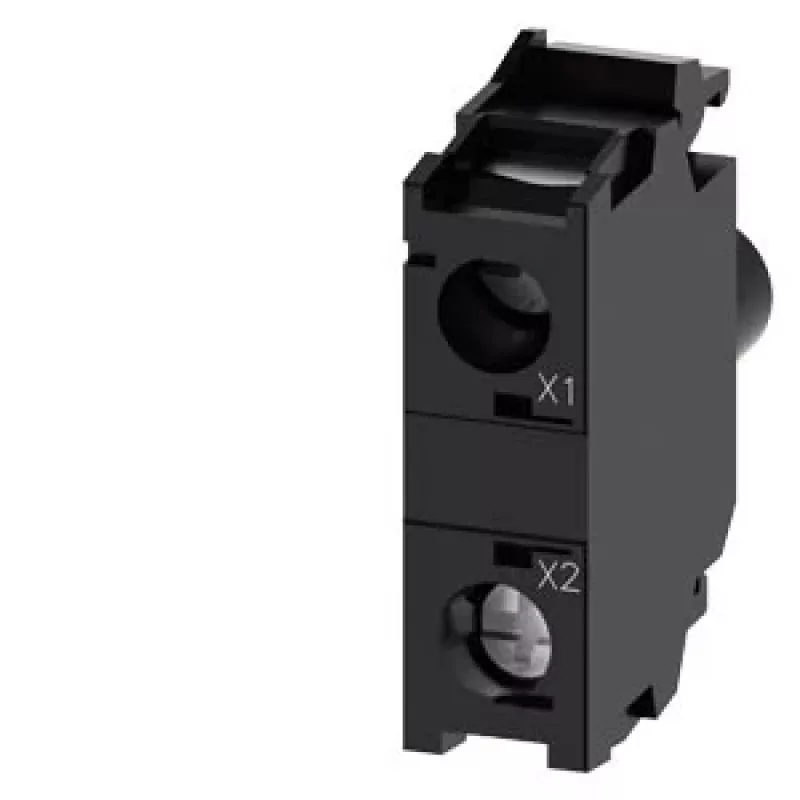

Siemens Μονάδα LED με ενσωματωμένο LED AC 230V Λευκό

The Siemens LED Module with integrated LED is a high-quality illumination component designed for the SIRIUS ACT 3SB3 series. It provides clear visual indication for control devices in industrial environments, operating directly on AC 230V supply without external driver. The module features a long electrical service life of over 100,000 hours and is built to withstand harsh conditions.

Advantages

Integrated LED eliminates the need for separate light source replacement. Screw terminal connection ensures secure and reliable wiring. Compact design allows rear panel mounting for space-saving installation. Wide operating temperature range from -25 to +70 °C ensures performance in demanding applications.

Suitable for

• Industrial control panels
• Machine building
• Process automation
• Signaling and status indication

Key specifications

• Product Type: LED Module
• Light Source: Integrated LED
• Light Color: White
• Operating Voltage: AC 230V
• Rated Current: 15 mA
• Rated Power: 1.5 W
• Connection Type: Screw Terminals
• Mounting Type: Rear Panel Mounting
• Compatibility: Siemens SIRIUS ACT 3SB3 Series
• Operating Temperature: -25 to +70 °C
• Storage Temperature: -40 to +80 °C
• Protection Class (IP): IP20 (module only)
• Electrical Service Life: >100,000 hours
• Housing Material: Plastic
• Standards: IEC 60947-5-1, EN 60947-5-1
• Number of LEDs: 1

Recommendations

For optimal performance, use with Siemens SIRIUS ACT 3SB3 series pushbuttons and selector switches. Ensure proper mounting and wiring according to manufacturer guidelines.
