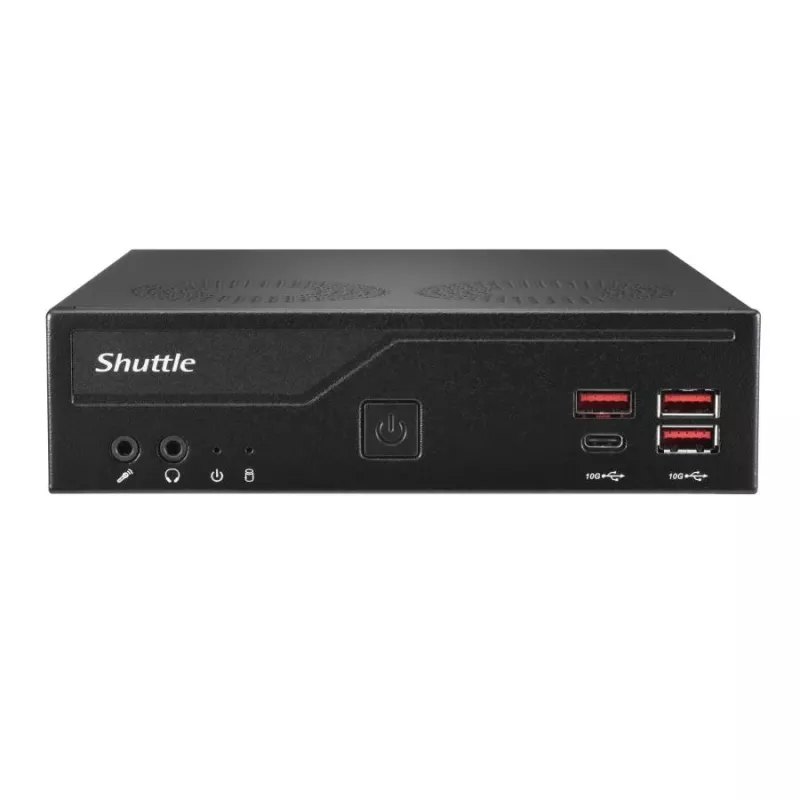

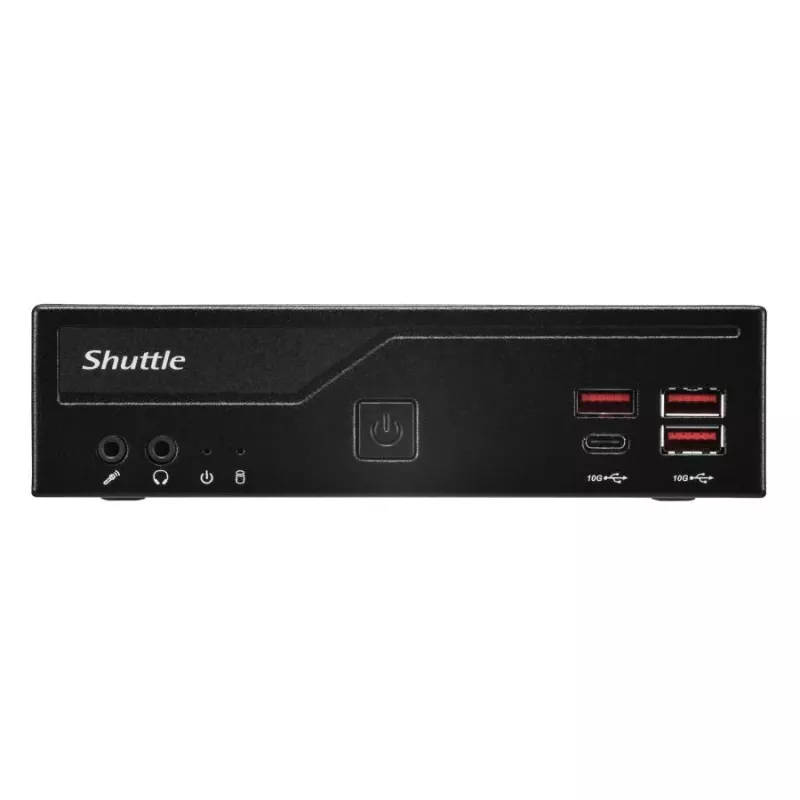

Shuttle XPC slim DB860 Barebone (Intel LGA1851, DDR5)

The Shuttle XPC slim DB860 is a compact 1.3-litre barebone PC built for Intel Core Ultra 200 series processors on the LGA1851 socket. In a slim metal chassis it offers room for up to 96 GB of DDR5 memory, fast M.2 and 2.5-inch storage, quad-display output and dual Ethernet - ready to be configured into a tidy, powerful small-form-factor system. CPU, RAM, storage and OS are not included.

Advantages

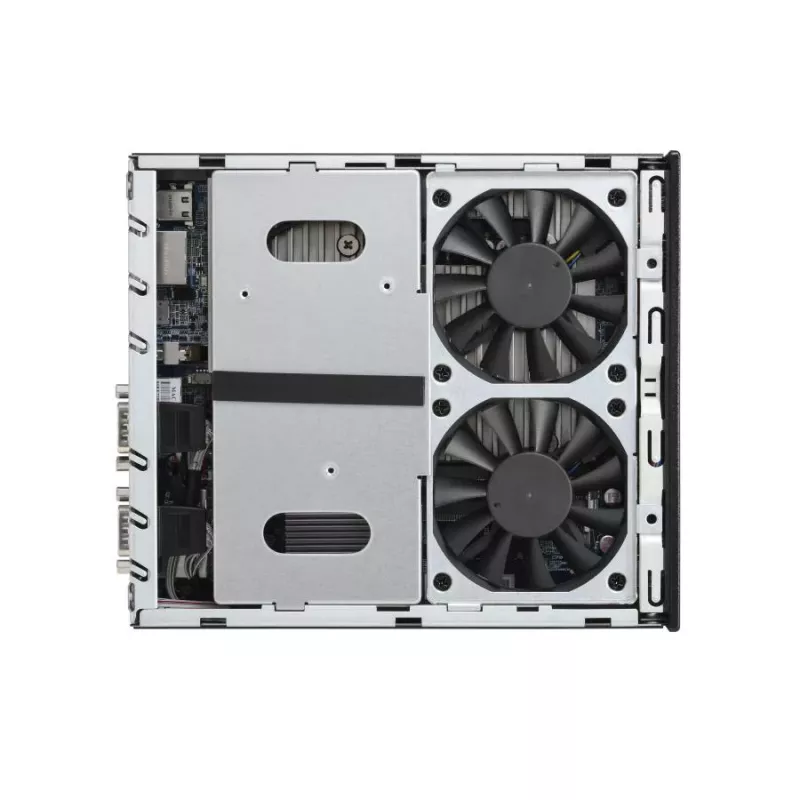

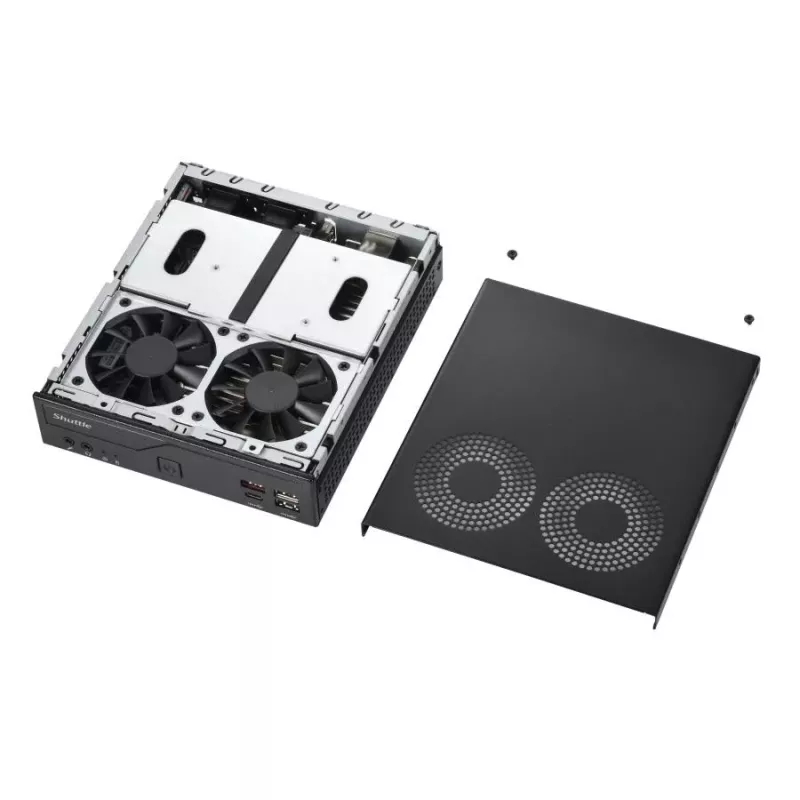

Supporting up to 24-core Core Ultra 200 CPUs (with an NPU for on-device AI), the DB860 packs desktop-class performance into a tiny footprint. HDMI 2.1 drives displays up to 8K at 60 Hz, and with HDMI 2.0, DisplayPort and a USB-C (DP/USB4) output it can run up to four independent screens. Heatpipe cooling with dual fans keeps it stable, while VESA mounting lets you hide it behind a monitor.

Suitable for

• Compact office, signage and kiosk PCs
• Multi-display workstations (up to 4 screens)
• System builders configuring a custom mini PC
• AI-capable Core Ultra 200 builds with an NPU

Key specifications

• Brand: Shuttle
• Model: DB860 (XPC slim)
• EAN: 887993008196
• Socket: Intel LGA1851 (Core Ultra 200, up to 65 W)
• Memory: 2x DDR5 SO-DIMM, up to 96 GB (5600)
• Storage: 1x M.2 2280 PCIe 5.0/SATA + 1x 2.5" SATA

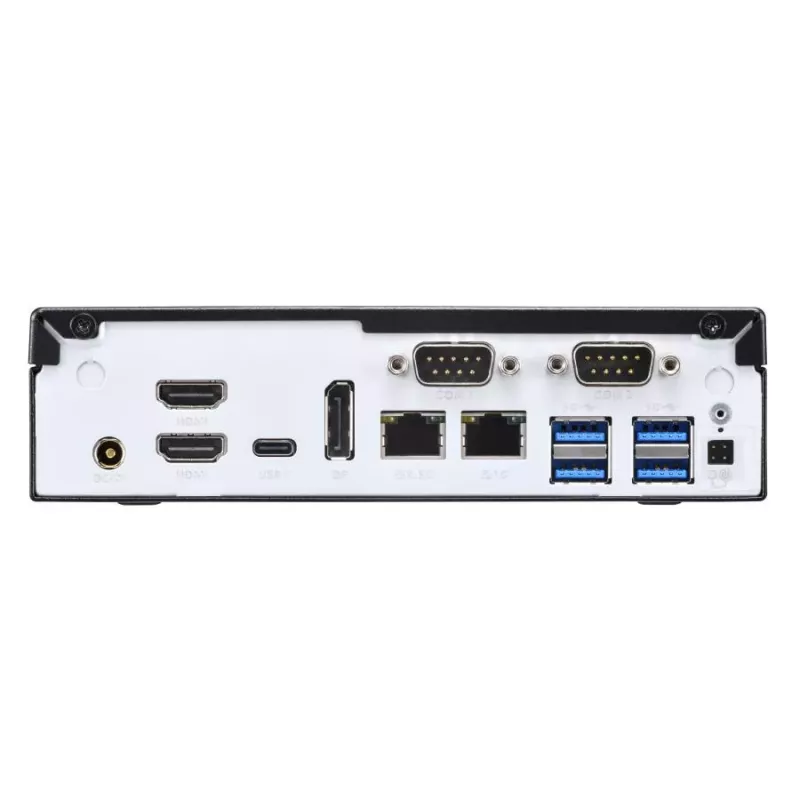

• Display: HDMI 2.1 (8K60) + HDMI 2.0 + DP 1.4a + USB-C
• Network: 2.5 GbE + Gigabit Ethernet
• Chassis: 190 x 165 x 43 mm metal, VESA mount
• Supplied: Barebone - no CPU, RAM, storage or OS

How to use

Install a compatible LGA1851 Core Ultra 200 CPU, DDR5 SO-DIMM modules and an M.2 or 2.5-inch drive, then install Windows 11 or a 64-bit Linux distribution. Connect up to four displays via the HDMI, DisplayPort and USB-C outputs, and use the VESA bracket to mount it behind a monitor if desired.

Recommendations

Match the CPU's cooling needs to the included heatpipe system (up to 65 W TDP) and use DDR5-5600 SO-DIMMs for best performance. Use an NVMe M.2 SSD for fast boot and load times. Keep the vents clear and update the BIOS for the latest CPU support.
