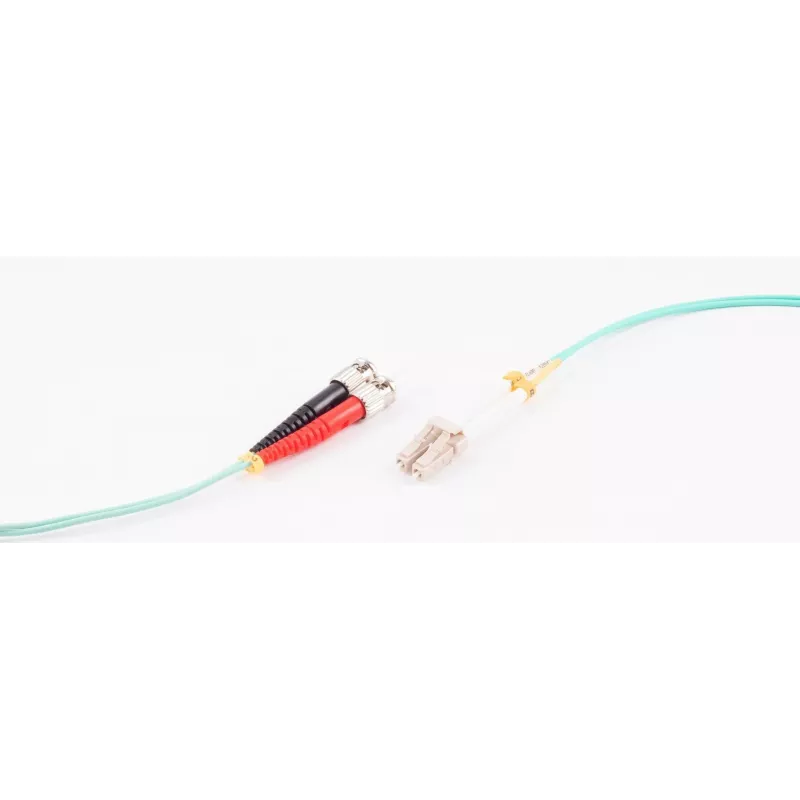

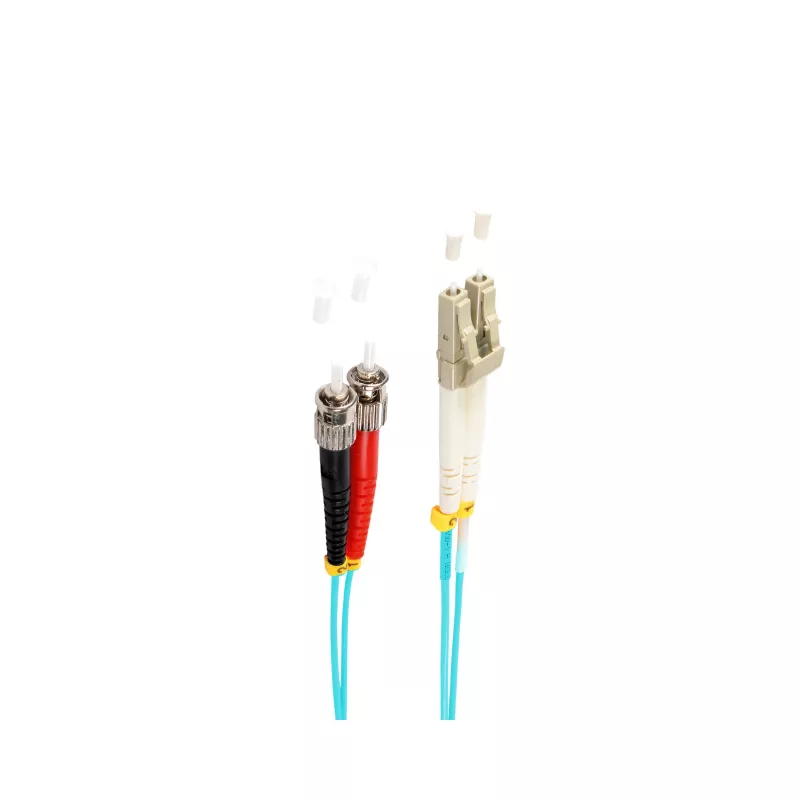

shiverpeaks BS77945/3 Καλώδιο patch LWL 5 m LC ST OM3 Aqua

Data center technicians and network administrators often need a reliable fiber optic patch cable for high-speed backbone connections. The shiverpeaks BS77945/3 is a 5-meter multimode OM3 patch cable with LC and ST duplex connectors, ideal for 10 Gigabit Ethernet links up to 300 meters.

Key specifications

• Fiber type: Multimode OM3, 50/125 µm core/cladding
• Connectors: LC duplex to ST duplex
• Length: 5 meters
• Jacket color: Aqua
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Insertion loss: < 0.3 dB
• Return loss: > 30 dB
• Bandwidth: 1500 MHz*km @ 850 nm, 500 MHz*km @ 1300 nm
• Maximum reach: 300 m (10GbE), 550 m (1GbE)
• Operating temperature: -20°C to +70°C

Why choose it

The aqua-colored LSZH jacket ensures low smoke and toxicity in case of fire, making it suitable for enclosed spaces. The OM3 fiber supports high bandwidth for demanding network applications.

Ideal use cases

• 10 Gigabit Ethernet backbone connections
• Fibre Channel storage area networks
• Data center patching between LC and ST equipment

Good to know

The cable has two fibers (duplex) and uses PC polishing for reliable physical contact. It complies with RoHS and CE directives.
