SHIVERPEAKS BASIC-S κατανεμητής οπτικών ινών, ABS, 4-Port, λευκό (BS07-65001)

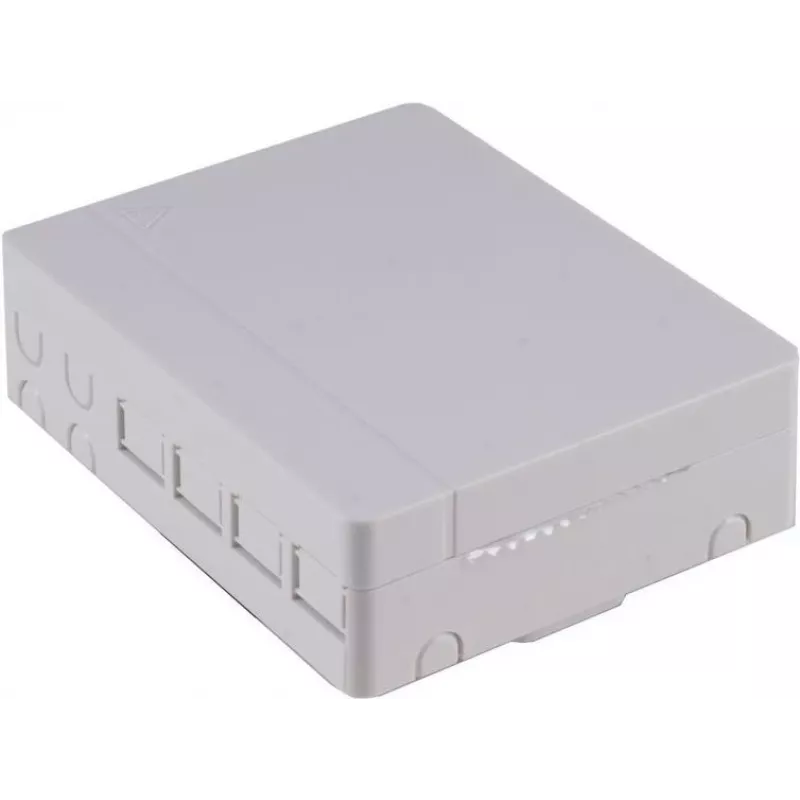

Managing fiber optic splices and connections in indoor environments often leads to tangled cables, unprotected splices, and a cluttered installation. The SHIVERPEAKS BASIC-S Fiber Optic Distribution Box solves this by providing a compact, wall-mountable enclosure that neatly organizes up to four adapters and splices while protecting them from dust and accidental damage.

Who is it for

This distribution box is ideal for network installers, IT technicians, and building infrastructure managers who need a reliable, space-saving solution for terminating and distributing fiber optic cables in offices, residential buildings, or small data closets. It suits both SC simplex and LC duplex adapter configurations, making it versatile for various fiber layouts.

Main features

• 4-port capacity with space for SC simplex or LC duplex adapters
• Durable ABS plastic housing in white, flame-retardant to UL94-V0
• Integrated splice tray for up to 4 splice protectors
• Two cable entry points with integrated cable routing and strain relief
• Screw-fastened lid for secure closure and easy access
• Wall-mountable design for neat, out-of-the-way installation
• IP20 protection rating, suitable for indoor use
• RoHS compliant for environmental safety

Specifications

• Enclosure material: ABS plastic
• Color: White
• Adapter compatibility: SC simplex / LC duplex
• Number of ports: 4
• Splice tray capacity: 4 splice protectors
• Cable entry points: 2
• Maximum cable diameter: 8 mm
• Protection class: IP20
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Flame retardancy: UL94-V0
• Dimensions (L x W x H): 150 x 110 x 30 mm
• Weight: 0.15 kg
• Compliance: RoHS

Tips

For a clean installation, plan your cable routing before mounting the box. Use the integrated strain relief to secure incoming fibers and avoid sharp bends. The box is designed for indoor use only; do not install in damp or outdoor locations. When using LC duplex adapters, you can fit up to four duplex connections, while SC simplex adapters allow for four individual connections.
