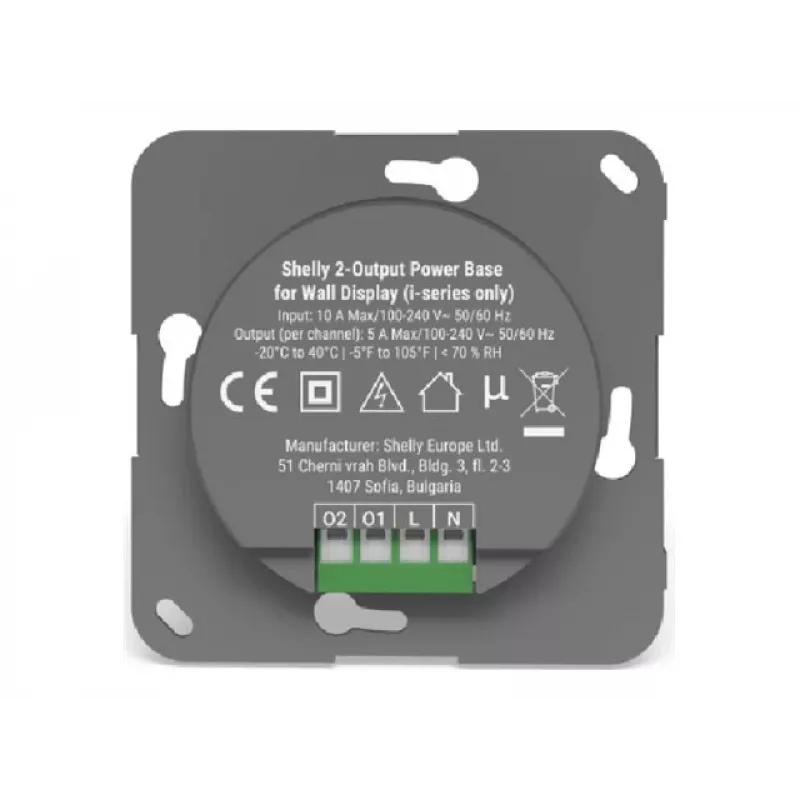

Shelly Wall Display i-Series 2-Output Power Base

Imagine walking into your living room and controlling two independent lighting circuits from a single, elegant wall-mounted display. The Shelly Wall Display i-Series 2-Output Power Base gives you exactly that: a 4-inch colour touchscreen paired with two relay outputs, each rated for 5A. It fits a standard 60mm wall box and connects over Wi-Fi and Bluetooth, making it a natural upgrade for any smart home enthusiast. The built-in PIR motion, temperature, humidity, and light sensors let you automate based on real conditions, while per-output power measurement keeps you informed about energy usage.

Key specifications

• 4-inch colour capacitive touch display
• Two independent relay outputs (max 5A each, 10A total)
• Input voltage: 110-230V AC
• Wi-Fi 802.11 b/g/n and Bluetooth BLE connectivity
• Integrated PIR motion, temperature, humidity, and light sensors
• Per-output power measurement
• ESP32 processor
• Mounts in standard 60mm wall box
• Operating temperature: 0°C to 40°C
• Power consumption: < 1.5W
• Colour: White

Why choose it

This power base is more than just a switch—it’s a smart control hub. With support for Shelly Cloud, MQTT, Home Assistant, Google Home, and Amazon Alexa, you can integrate it into your existing ecosystem without hassle. Custom dashboards, scripting, schedules, scenes, and webhooks give you complete flexibility. The touch display provides intuitive control at your fingertips, while the built-in sensors enable advanced automation like turning lights on when you enter the room or adjusting based on ambient light.

Ideal use cases

• Controlling two separate lighting circuits from one wall-mounted interface
• Automating lights based on motion, temperature, humidity, or light levels
• Monitoring energy consumption per output for efficiency
• Integrating with popular smart home platforms for voice and app control
• Upgrading traditional wall switches to a modern smart display

Good to know

Installation is straightforward for anyone comfortable with basic electrical work, and the unit is designed to fit standard European wall boxes. The touchscreen offers a responsive interface for manual control, while the companion app provides remote access and advanced configuration. Firmware updates are delivered over-the-air to keep the device secure and feature-rich.
