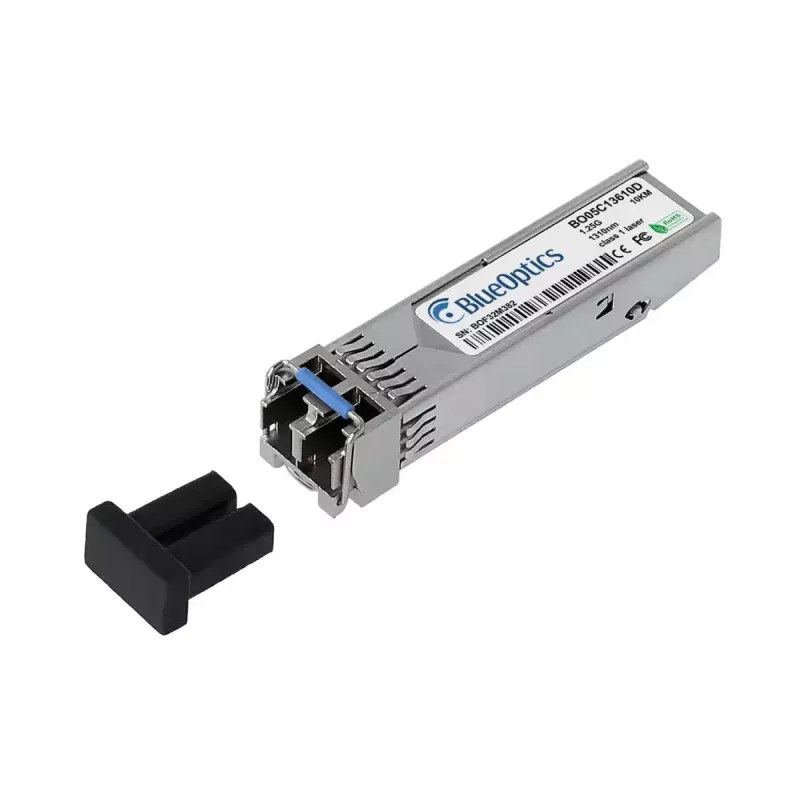

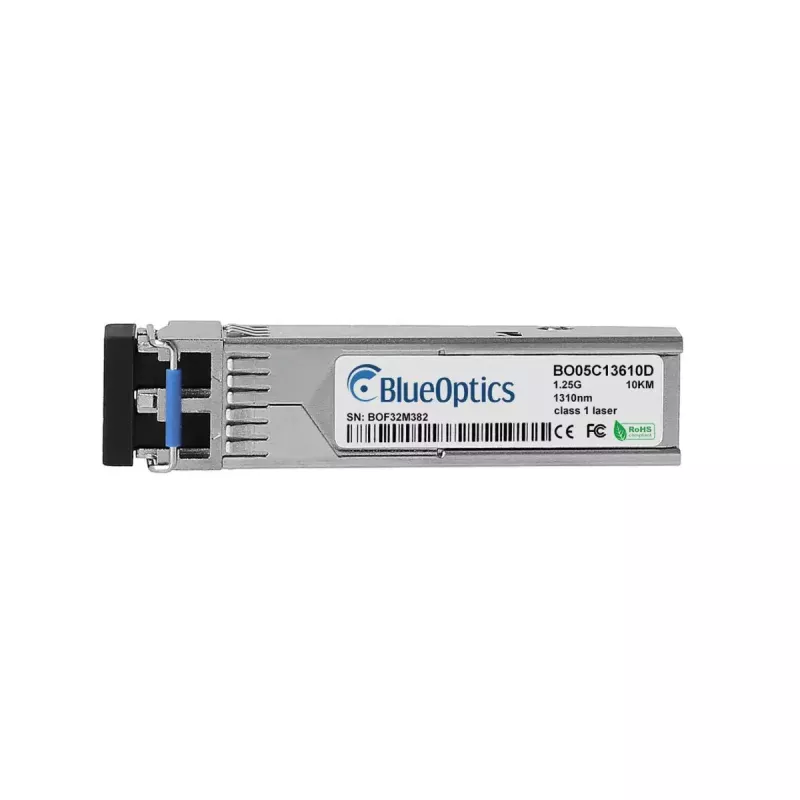

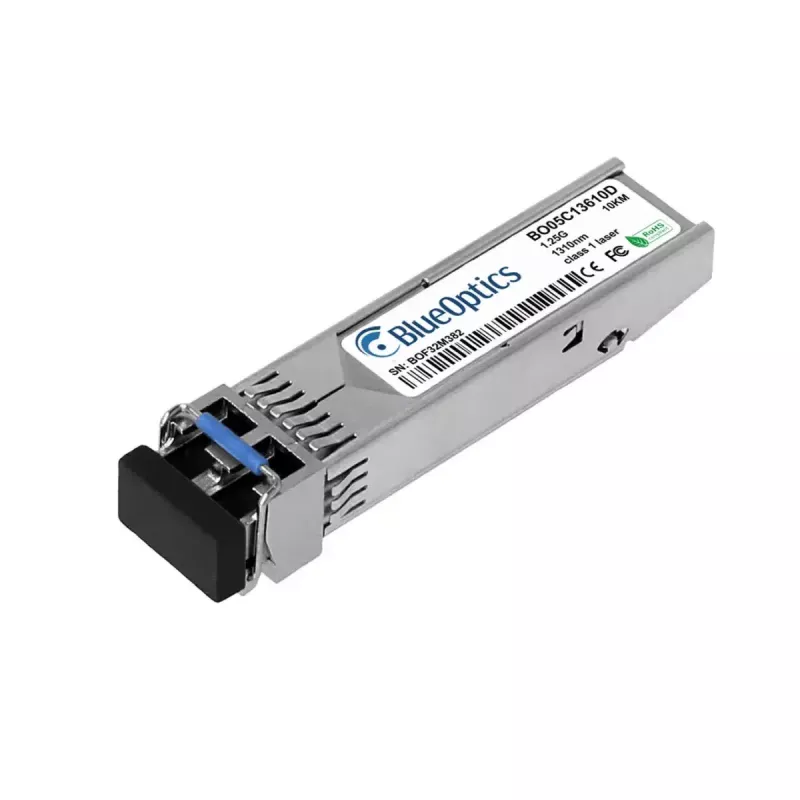

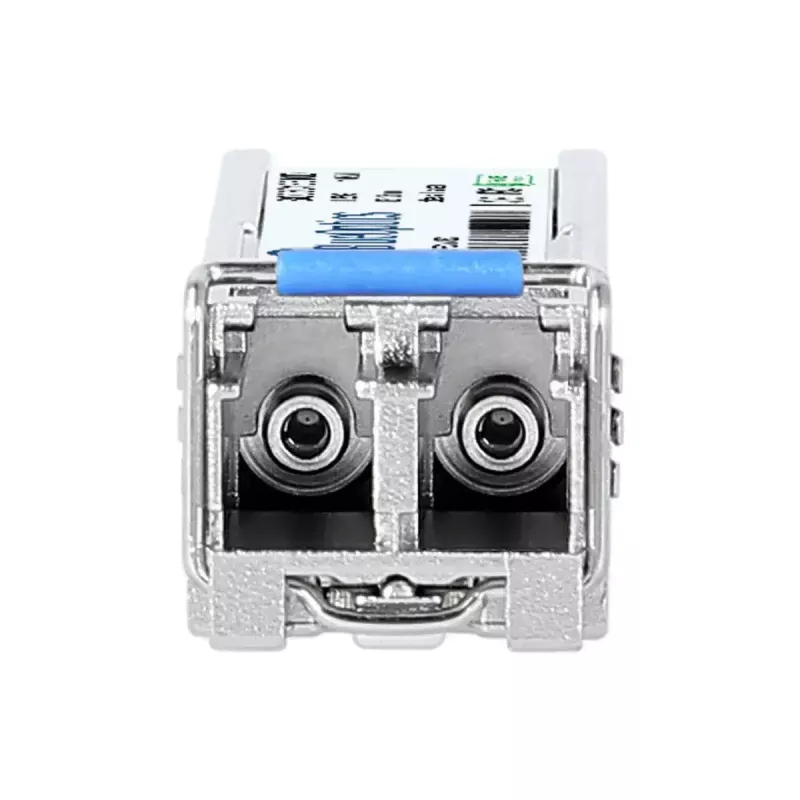

SFP-Transceiver-Modul BlueOptics 794808-BO οπτική ίνα 1250 Mbit/s

The BlueOptics 794808-BO SFP transceiver module is a compact fiber optic interface engineered for small form-factor pluggable installations. With an SFP form factor and a maximum data transfer rate of 1250 Mbit/s, this module supports standard fiber connections where a reliable single-channel link is required. The module comes in a silver housing and is specified with a high mean time between failures (MTBF) of 1,000,000 hours. Compliance with CE, FCC and RoHS standards indicates conformity to common safety, electromagnetic and environmental requirements.

Advantages

The module’s SFP form factor provides compatibility with a wide range of switches, routers and media converters that accept SFP transceivers, enabling easy hot-pluggable upgrades or replacements. A maximum data transfer rate of 1250 Mbit/s meets typical requirements for single-channel fiber links, while the high MTBF value points to long operational life and reduced downtime. The silver metal housing contributes to mechanical durability and thermal dissipation during operation.

Suitable for

• Single-channel fiber connections between switches, routers or media converters
• Upgrading or replacing existing SFP ports in enterprise or lab equipment
• Short- to medium-range fiber links that require 1250 Mbit/s throughput

Key specifications

• Interface type: SFP (small form-factor pluggable)
• Maximum data transfer rate: 1250 Mbit/s
• Weight: 0.02 kg
• Product colour: Silver
• Mean time between failures (MTBF): 1,000,000 hours
• Regulatory compliance: CE, FCC, RoHS

How to use

Install the BlueOptics 794808-BO by inserting the SFP module into a compatible SFP port on your network device until it clicks into place. Connect the appropriate fiber optic cable to the transceiver’s optical interface, ensuring correct connector type and polarity. After physical installation, verify link status and speed on the host device and configure any required port settings such as duplex or flow control through the device management interface. To remove the module, follow the host device’s recommended hot-swap procedure or power-down sequence if hot-plugging is not supported.

Recommendations

Use matching fiber cable types and connectors recommended by your equipment vendor and avoid excessive bending or strain on the fiber. Operate the module within the ambient temperature and humidity ranges specified by your host device, and ensure connectors are clean to maintain optical performance. When deploying multiple links, document port assignments and test each connection after installation to confirm expected throughput and link stability.
