SFP+-Transceiver-Modul BlueOptics 57-0000076-01-BO 10000 Mbit/s

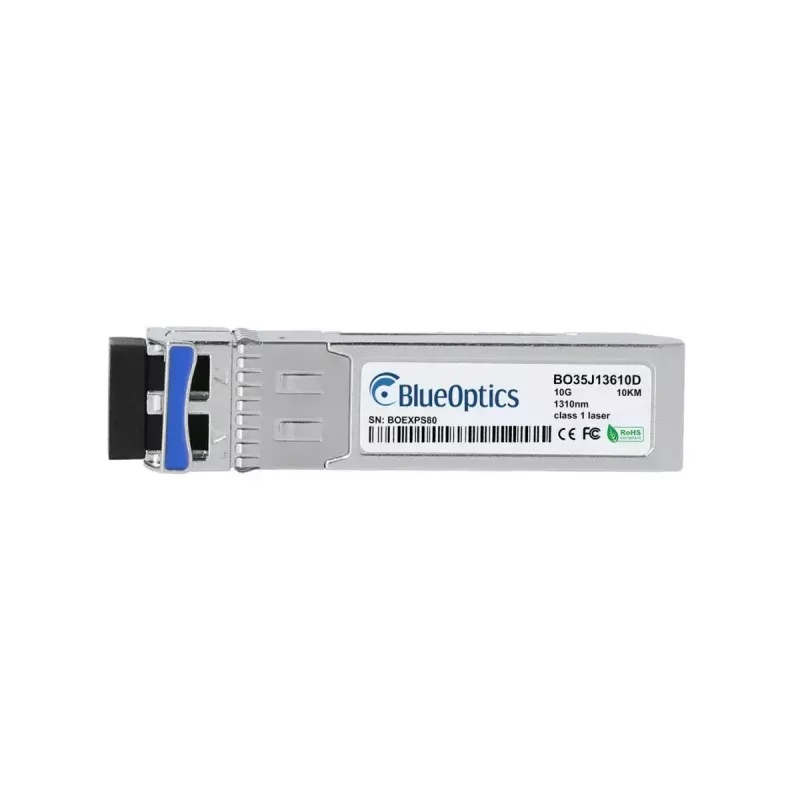

The BlueOptics 57-0000076-01-BO SFP+ transceiver module is a fiber-optic pluggable device designed for 10 Gbit/s networks. Housed in metal and weighing approximately 20 g, this SFP+ module implements an SFP+ interface and supports data transfer at up to 10000 Mbit/s. It is intended for single-mode optical links with LC Duplex connections and complies with MSA mechanical and electrical form-factor standards for interoperability with compatible networking hardware.

Advantages

The metal housing provides mechanical robustness and effective thermal dissipation for continuous operation. A high mean time between failures (MTBF) of 1,000,000 hours indicates long operational lifetime and reduced maintenance intervals. The compact SFP+ form factor and low weight make the module suitable for dense port installations and hot-pluggable upgrades without significant mechanical load on equipment.

Suitable for

• 10 Gbit/s Ethernet and other high-speed optical links over single-mode fiber
• Patch panel and switch uplinks requiring LC Duplex terminations
• Data center interconnects and campus backbone segments up to several kilometers
• Hot-swap upgrades in switches, routers, and storage systems that accept SFP+ modules

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Housing: metal for durability and heat dissipation
• Connector type: LC Duplex (single-mode fiber)
• Typical weight: 0.02 kg
• Mean time between failures (MTBF): 1,000,000 hours

How to use

Insert the BlueOptics SFP+ transceiver into a compatible SFP+ port on your switch, router, or storage device while the host port is powered down if recommended by the equipment manufacturer. Attach LC Duplex single-mode fiber patch cords to the module’s connector, observing correct transmit/receive orientation. Configure the host device for the appropriate 10G optical port settings and verify link status. For best results, use compatible fiber cabling and keep transceiver and connector end-faces clean to avoid signal loss.

Recommendations

Verify that your network equipment supports third-party SFP+ modules and, if available, enable digital diagnostics (DDM/DOM) support on the host device to monitor supply voltage, temperature, and optical parameters. Store unused transceivers in anti-static packaging and protect connector end-caps to maintain fiber quality.
