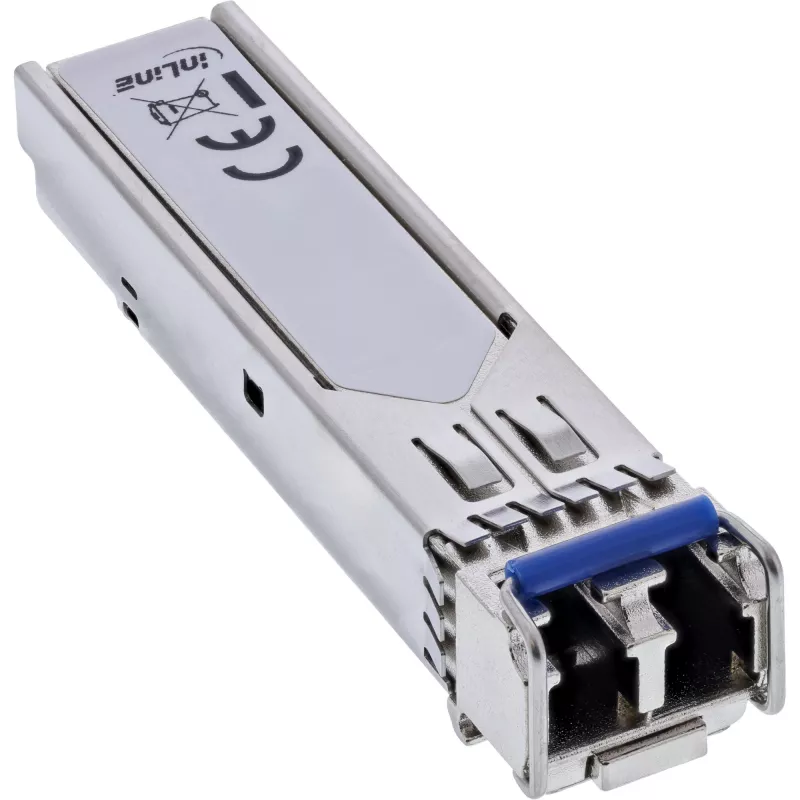

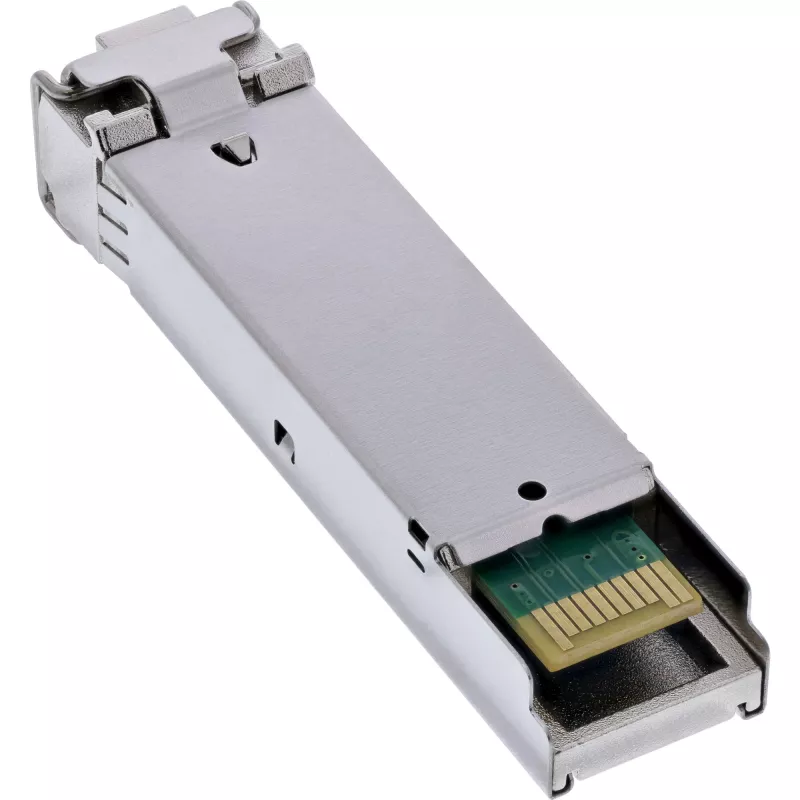

SFP πομποδέκτης InLine 32335H 1310 nm Singlemode 10 km 2,5 Gb/s

Reliable fibre optic connection over medium distances:With a range of up to 10 km, the module is ideal for campus networks or connections between technical rooms.
High compatibility thanks to MSA standard:Supports the Multi-Source Agreement (MSA) standard for flexible integration into existing SFP slots of common network devices.
Stable data transmission at 2.5 Gb/s:Optimised for reliable transmission on single-mode fibre in the 1310 nm wavelength range.
Easy integration thanks to LC duplex connection:The LC connector enables a fast and secure connection with minimal space requirements.
Hot-plug capable for uninterrupted installation:Replacement or integration during operation without system restart possible.

The InLine® SFP Module 32335H is a powerful 2.5G 1310nm LX transceiver for use in professional fibre optic applications via singlemode fibres. With a transmission distance of up to 10 km, the module offers a reliable solution for network connections in campus or local areas.
The transceiver is MSA-compliant and supports the SFP form factor according to SFF-8472. It is suitable for applications such as STM-16, SDH/SONET, ATM switches or fibre channel connections. The combination of LC duplex connection, hot-plug capability and industrial-grade temperature range from 0°C to 70°C enables flexible and robust integration into existing systems.
Thanks to 1310 nm DFB laser technology and an integrated PIN TIA receiver unit, the module ensures stable and powerful data transmission at up to 2.5 Gb/s – ideal for companies that rely on high availability and standardised connectivity.

Form factor: SFP (Small Form Factor Pluggable)
Transmitter wavelength: 1310 nm
Receiver wavelength: 1260–1610 nm
Compatibility: SFF-8472, MSA
Laser class: Class 1, according to IEC-60825
Extinction ratio: typ. 8.2 dB
Supply voltage: 3.3 V ±5%
Operating temperature: 0 °C to +70 °C
Current consumption: max. 300 mA
Compatible applications: STM-16, Fibre Channel, SDH/SONET, ATM

Note on coding:
Our SFP modules are factory-coded – whether for Cisco, Intel or other systems, which may limit your choice.
For maximum compatibility, we now programme individually according to customer requirements.
Please contact your sales representative.

InLine 32335H. SFP transceiver type: Fiber optic, Maximum data transfer rate: 2500 Mbit/s, Interface type: SFP. Compliance certificates: CE, TÜV mark. Width: 57 mm, Depth: 0.17 mm, Height: 13 mm. Package width: 60 mm, Package depth: 90 mm, Package height: 20 mm. Dimensions (WxDxH): 57 x 0.17 x 13 mm

How to use

Install the SFP transceiver into an appropriate SFP slot on a compatible switch, router or media converter while the device is powered on or off according to the host equipment's guidelines. Connect a singlemode fiber patch cable with the correct connector type to the transceiver's optical port and verify link status via the host device LEDs or management interface. If the link does not come up, check fiber polarity, cleanliness of connectors and transceiver compatibility with the host device.

Recommendations

Before inserting the transceiver, ensure the fiber connectors are clean and protected. Use appropriate ESD precautions when handling the module and consult the host equipment documentation to confirm supported optical parameters. For reliable long-distance links, choose singlemode fiber of suitable class and maintain proper cable routing to avoid sharp bends and excessive attenuation.
