Σετ τοποθέτησης DeLOCK 65984 πράσινο πλαστικό

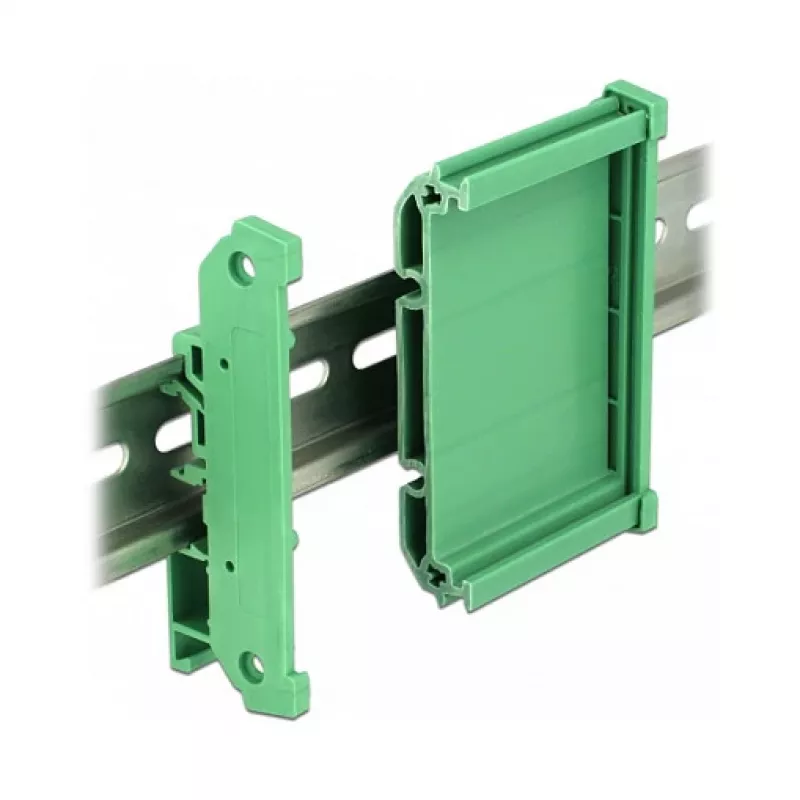

Delock Board Holder for DIN Rail 10 cm long is a green plastic mounting accessory designed to secure printed circuit boards with a board width of 72 mm. It clips onto standard 15 mm or 35 mm DIN rails and can be shortened to a required length; after cutting, the two end caps can be reattached for a finished installation.

Advantages

The holder is made of durable green plastic that provides a lightweight yet stable support for circuit boards. It supports mounting on both 15 mm and 35 mm DIN rails and allows individual shortening to fit different board or enclosure sizes. Reattachable end caps restore a neat appearance and protect the cut edges after resizing.

Suitable for

• Securing PCBs with a width of 72 mm on DIN rails
• Electrical and electronic control cabinets
• Prototyping and small series assemblies that require rail mounting
• Enclosures where a short, customized board holder is needed

Key specifications

• Brand: DELOCK
• Model / MPN: 65984
• EAN: 4043619659845
• Material: green plastic
• Mounting: 15 mm or 35 mm DIN rail
• Designed board width: 72 mm
• Length: 100 mm (can be shortened individually)

How to use

Measure the required length to accommodate the PCB and mark the holder where it should be cut. Shorten the plastic holder using a suitable cutting tool, then remove any sharp burrs. Snap the holder onto the 15 mm or 35 mm DIN rail, insert the printed circuit board into the holder slot, and attach the two end caps to cover the trimmed ends for a secure fit and cleaner appearance.

Recommendations

When cutting the holder, wear protective gloves and eye protection and use a fine-toothed saw or plastic cutter for a straight edge. Ensure the PCB is fully supported along its length and avoid excessive force when inserting the board to prevent deformation of the plastic.
