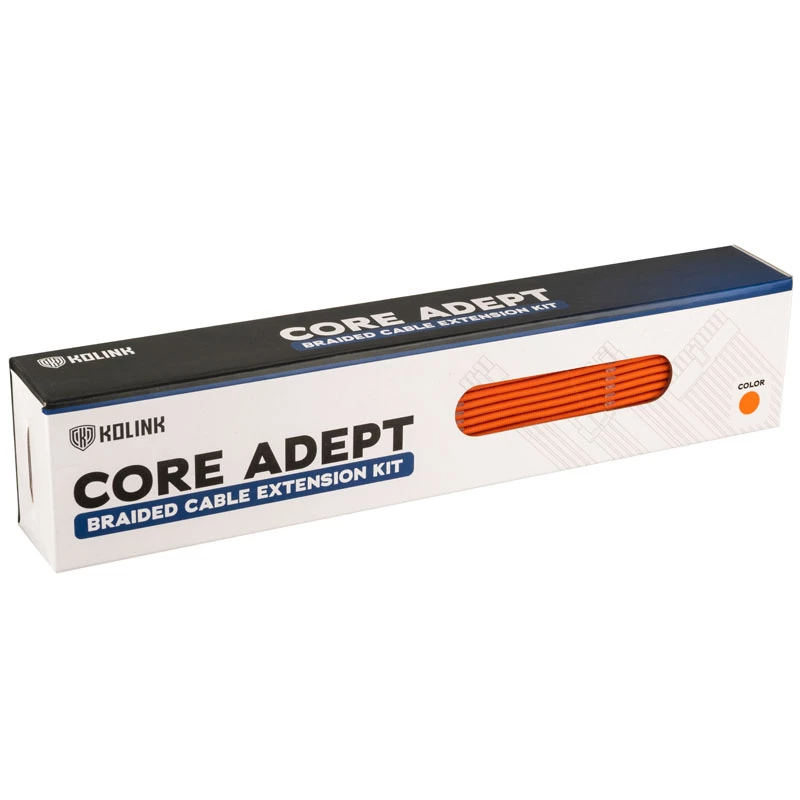

Σετ προέκτασης καλωδίου Kolink Core Adept Πορτοκαλί

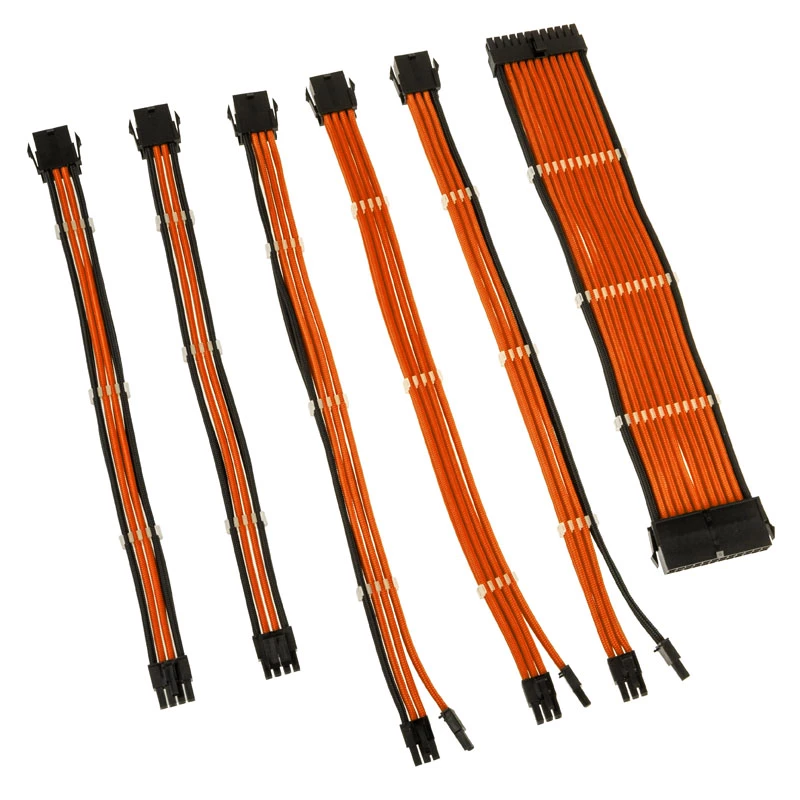

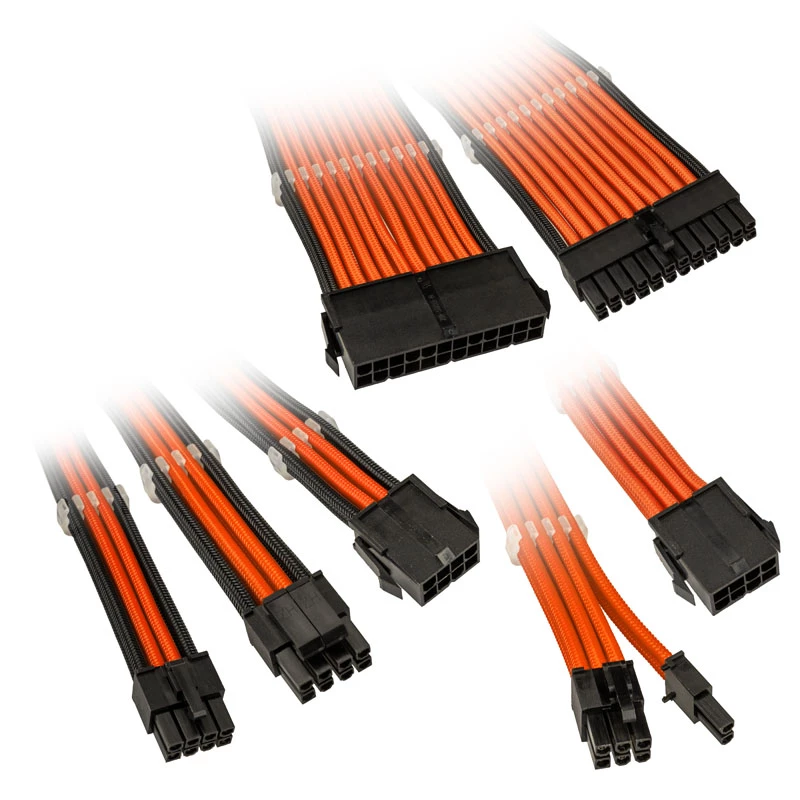

The Kolink Core Adept Braided Cable Extension Kit in Orange is a set of six braided extension cables for internal PC power connections. Designed for next-generation hardware, the kit includes one 20+4pin (300 mm), one 8pin (300 mm), one 4+4pin (300 mm) and three 6+2pin (350 mm) cables. Each cable uses 16AWG copper conductors and a PET (Polyethylene Terephthalate) braided jacket to provide reliable power delivery and a clean, coloured finish without heatshrink. The kit is compatible with modern motherboards, NVIDIA RTX 40 Series and recent AMD Radeon graphics cards when paired with appropriate PSUs.

Advantages

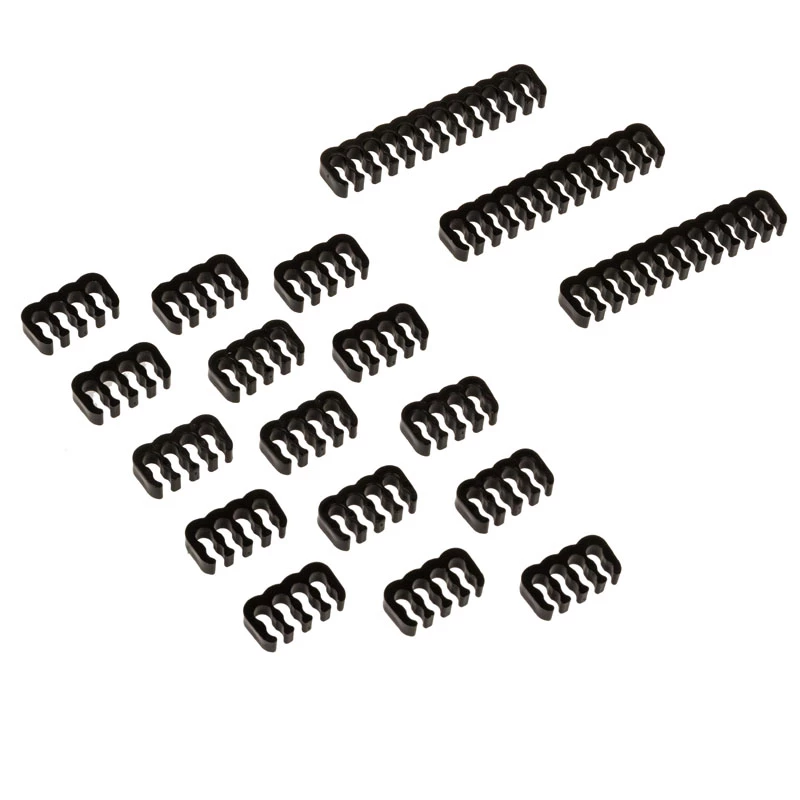

The braided 16AWG wires offer improved conductivity and higher heat resistance suitable for high-wattage applications. PET braiding provides durability, flexibility and a neat appearance while eliminating the need for heatshrink. Each cable comes with three pre-installed combs and an additional spare comb to simplify cable management. The kit is available in a vibrant orange colour scheme that aligns accents symmetrically across PCIe cables.

Suitable for

• Custom gaming PC builds requiring aesthetic cable extensions
• Systems with next-gen PCIe 5.0-capable power supplies
• Motherboards and GPUs such as NVIDIA RTX 40 Series and modern AMD Radeon cards
• High-wattage systems needing 16AWG cabling for improved conductivity

Key specifications

• Contents: 1 x 20+4pin (300 mm), 1 x 8pin (300 mm), 1 x 4+4pin (300 mm), 3 x 6+2pin (350 mm)
• Wire gauge: 16AWG
• Jacket material: PET (Polyethylene Terephthalate) braiding
• Colour: Orange
• Brand / MPN: Kolink / COREADEPT-EK-ORN
• EAN: 5999094004849

How to use

Power down the PC and unplug the power supply before installation. Connect each extension cable to the corresponding PSU connector and then to the motherboard or device (20+4pin to the main board ATX connector, 8pin and 4+4pin to CPU/EPS as required, 6+2pin to GPU PCIe power inputs). Use the pre-installed combs to align and route cables neatly; replace or add the spare comb where needed. Ensure all connectors are fully seated and secure before restoring power.

Recommendations

Use these extensions with a PSU and components rated for your system’s power draw. For high-wattage GPUs or overclocked systems, confirm the PSU supports required power rails and connectors. Avoid routing cables near sharp edges and keep adequate airflow inside the case. The kit includes a three-year warranty; follow the manufacturer’s guidelines for safe use.
