Schneider Electric Διχαλωτή μπάρα 3P 12 Μονάδες 63A R9XFH312

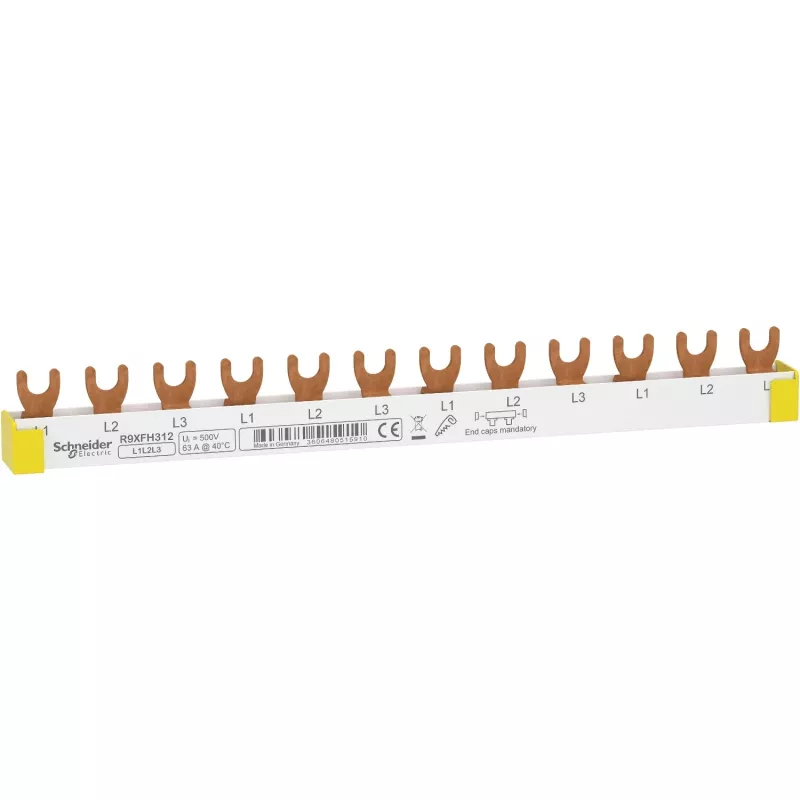

The Schneider Electric R9XFH312 fork busbar is a high-quality accessory designed for modular electrical distribution systems. It provides a reliable and efficient method for connecting multiple circuit breakers or other modular devices in a distribution board, ensuring a tidy and organized installation.

Advantages

This busbar simplifies wiring by eliminating the need for multiple individual cables, reducing installation time and potential errors. Its fork connection type ensures secure and easy attachment to compatible devices. The self-extinguishing plastic insulation enhances safety, while the copper conductor guarantees excellent electrical conductivity and durability.

Suitable for

• Residential and commercial electrical distribution boards
• Connecting Schneider Electric Resi9 modular devices
• Applications requiring a 3-phase, 63 A rated current busbar

Key specifications

• Product Type: Fork Busbar
• Number of Poles: 3P
• Number of Modules: 12
• Rated Current (In): 63 A
• Rated Operational Voltage (Ue): 230/400 V AC
• Connection Type: Fork
• Pitch: 18 mm
• Conductor Material: Copper
• Insulation Material: Self-extinguishing plastic
• Insulation Color: Grey
• Mounting Support: DIN rail
• Compatibility: Resi9 modular devices
• Standard: IEC 60947-7-1
• Degree of Protection: IP20 (with end caps)
• Operating Temperature: -25 to 50 °C
• Storage Temperature: -40 to 80 °C
• Conductor Cross-section: 10 mm²

Recommendations

For optimal performance, ensure compatibility with your specific modular devices. Use appropriate end caps to maintain IP20 protection. Always follow local electrical codes and regulations during installation.
