SCHELINGER μικροαυτόματο 6kA 3P C 50A VDE

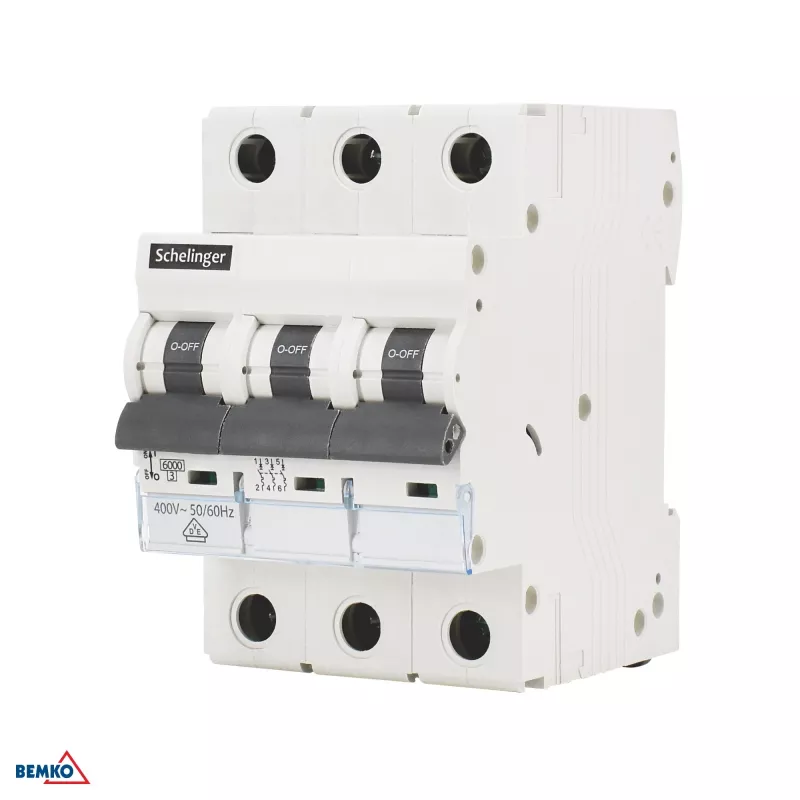

The SCHELINGER A02-G8-3P-C50 is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent and short-circuit protection in electrical installations. With a 3-pole configuration, C-curve tripping characteristic, and a rated current of 50 A, this MCB is ideal for protecting circuits with moderate inrush currents, such as those powering motors, transformers, and lighting systems. It complies with IEC/EN 60898-1 and VDE standards, ensuring safety and performance.

Advantages

This MCB offers a compact design for easy installation on standard 35 mm DIN rails. Its C-curve ensures fast response to short circuits while tolerating temporary overloads, reducing nuisance tripping. The clear ON/OFF position indicator simplifies maintenance and troubleshooting. With a breaking capacity of 6 kA, it provides robust protection for residential and commercial applications.

Suitable for

• Overcurrent and short-circuit protection in distribution boards
• Protection of lighting circuits, socket outlets, and small appliances
• Commercial and industrial electrical systems requiring C-curve characteristics

Key specifications

• Brand: SCHELINGER
• Model: A02-G8-3P-C50
• Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3P (3-Pole)
• Rated Current: 50 A
• Tripping Curve: C-Curve
• Short-Circuit Breaking Capacity (Icn): 6 kA
• Rated Voltage: 230/400 V AC
• Rated Frequency: 50/60 Hz
• Standards: IEC/EN 60898-1, VDE
• Mounting: DIN Rail (35 mm)
• Terminal Type: Screw Terminals
• Terminal Capacity: Solid up to 25 mm², Flexible up to 16 mm²
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Protection Degree: IP20 (Terminals), IP40 (Enclosure)
• Energy Limiting Class: 3
• Operating Temperature: -25°C to +55°C
• Storage Temperature: -40°C to +70°C
• Indicator: ON/OFF Position Indicator

Recommendations

For optimal performance, ensure proper sizing and installation by a qualified electrician. This MCB is suitable for use in TN, TT, and IT systems. Always follow local electrical codes and regulations.
