SCHELINGER μικροαυτόματο 6kA 3P B 40A VDE

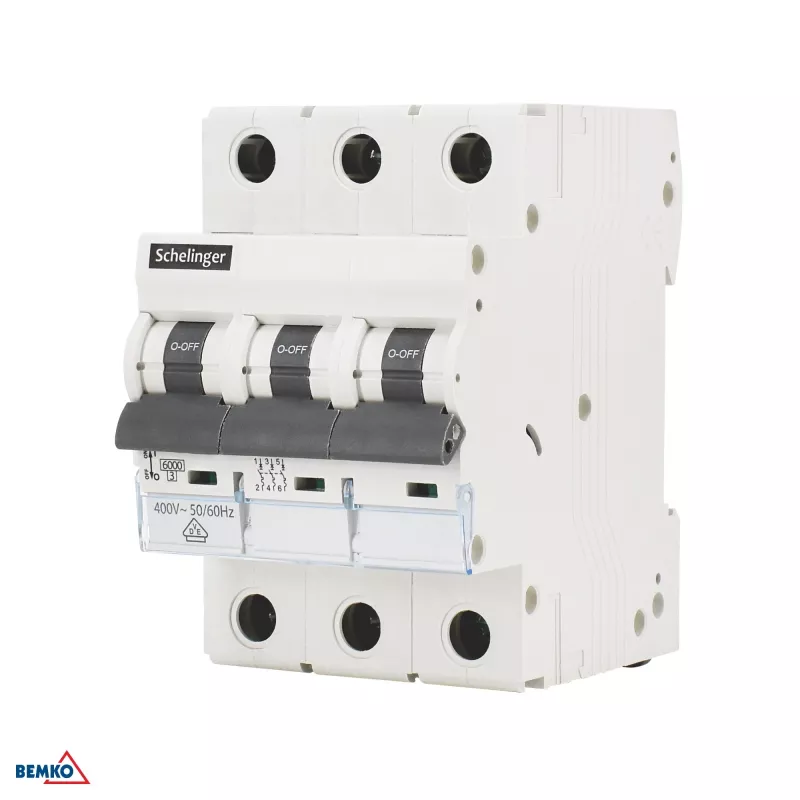

The SCHELINGER A02-G8-3P-B40 is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent protection in electrical installations. With a 3-pole configuration, rated current of 40A, and type B tripping curve, it ensures safe operation for residential and commercial applications. Compliant with VDE and IEC/EN 60898-1 standards, this MCB offers a breaking capacity of 6kA and is suitable for DIN rail mounting.

Advantages

This MCB provides robust protection against overloads and short circuits, with a compact 3-module width (54mm) for space-saving installation. Its screw terminals accommodate conductors up to 25mm² and busbars up to 16mm², ensuring secure connections. With an electrical life of 10,000 operations and mechanical life of 20,000 operations, it delivers long-lasting performance.

Suitable for

• Residential electrical panels
• Commercial distribution boards
• Industrial control systems
• Lighting and socket circuits

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3P (3-pole)
• Rated Current: 40A
• Tripping Curve: Type B
• Rated Breaking Capacity: 6kA
• Rated Voltage (AC): 230/400V AC
• Frequency: 50/60Hz
• Mounting Type: DIN Rail
• Standard Compliance: VDE, IEC/EN 60898-1
• Protection Degree: IP20
• Terminal Capacity (Conductor): Up to 25mm²
• Terminal Capacity (Busbar): Up to 16mm²
• Electrical Life: 10,000 operations
• Mechanical Life: 20,000 operations
• Energy Limiting Class: 3
• Operating Temperature Range: -25°C to +55°C
• Connection Type: Screw Terminals
• Module Width: 3 Modules (54mm)

Recommendations

For optimal protection, ensure the MCB is installed by a qualified electrician and used within its rated specifications. Regular testing is recommended to maintain safety.
