SCHELINGER μικροαυτόματο 6kA 3P B 10A VDE

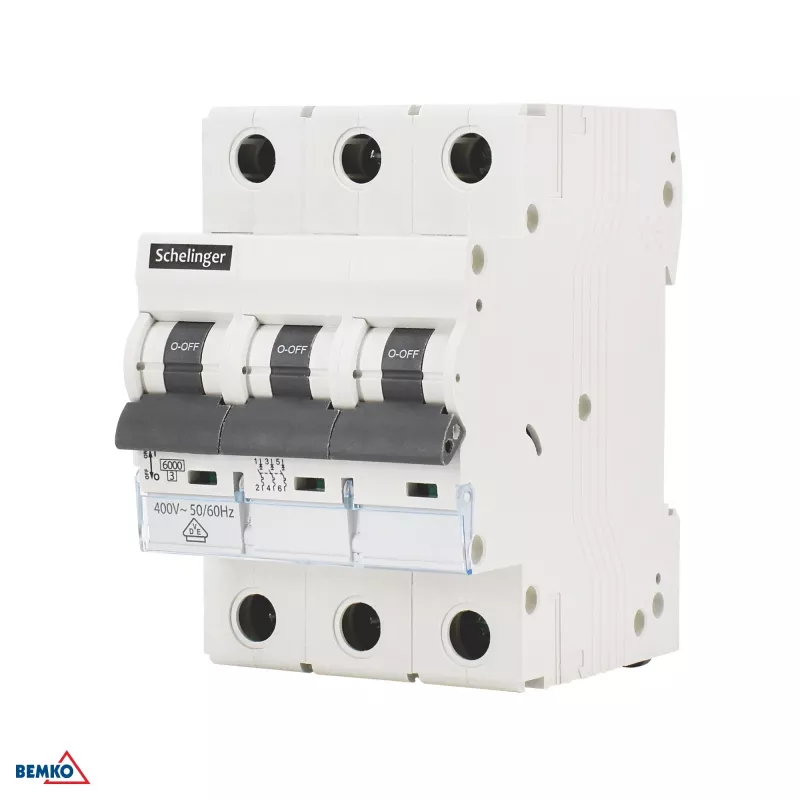

The SCHELINGER A02-G8-3P-B10 is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent protection in electrical installations. With a 3-pole configuration, 10A rated current, and B tripping characteristic, it ensures safe operation for residential and commercial applications. Certified to VDE and CE standards, this MCB offers robust performance with a breaking capacity of 6kA.

Advantages

This MCB provides precise protection against overloads and short circuits, with a B curve suitable for resistive and light inductive loads. Its compact 3-module design (54mm) saves space on DIN rail mountings. The clear ON/OFF position indicator simplifies maintenance and troubleshooting.

Suitable for

• Residential electrical panels
• Commercial building distribution boards
• Light industrial control cabinets
• Protection of lighting circuits, socket outlets, and small appliances

Key specifications

• Brand: SCHELINGER
• Model: A02-G8-3P-B10
• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3P (3-pole)
• Rated Current (In): 10 A
• Tripping Characteristic: B
• Rated Short-Circuit Breaking Capacity (Icn): 6 kA
• Rated Voltage (Ue): 230/400 V AC
• Frequency: 50/60 Hz
• Mounting Type: DIN Rail (35mm)
• Standard: IEC/EN 60898-1
• Certification: VDE, CE
• Electrical Endurance: ≥ 10,000 cycles
• Mechanical Endurance: ≥ 20,000 cycles
• Terminal Capacity: Up to 25 mm² (solid), 16 mm² (flexible)
• Protection Degree: IP20 (terminals), IP40 (front)
• Ambient Operating Temperature: -25°C to +55°C
• Energy Limiting Class: 3
• Connection Type: Screw terminals
• Indicator: ON/OFF position indicator
• Module Width: 3 modules (approx. 54 mm)
• Rated Impulse Withstand Voltage (Uimp): 4 kV

Recommendations

For optimal protection, ensure the MCB is installed by a qualified electrician and that the load does not exceed the rated current. This device is suitable for use in TN, TT, and IT systems.
