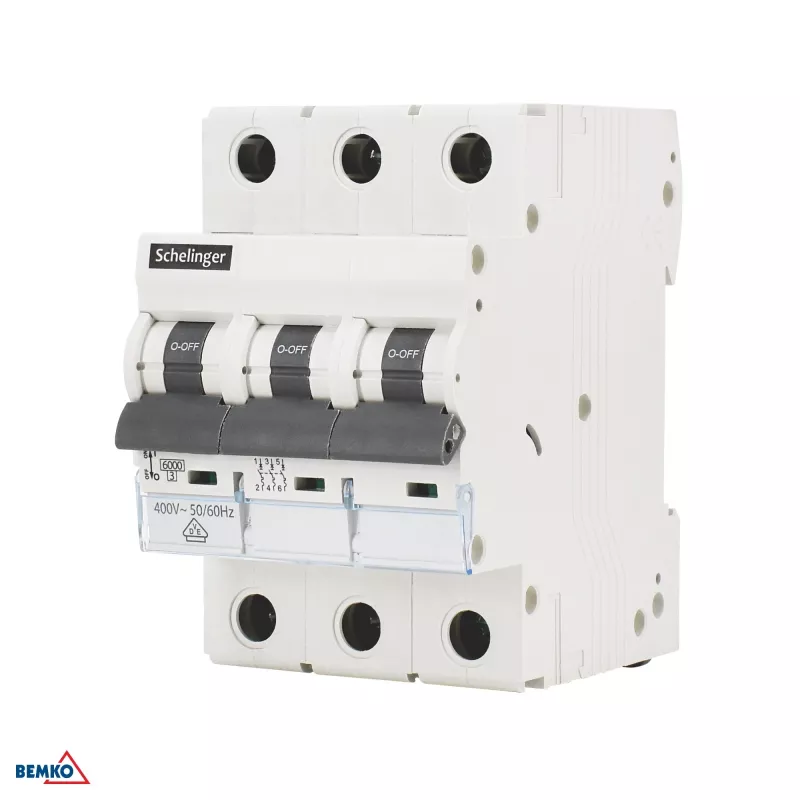

SCHELINGER A02-G8-3P-C16 μικροαυτόματο 6kA 3P C 16A VDE

The SCHELINGER A02-G8-3P-C16 is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent protection in electrical installations. With a rated current of 16 A and a tripping curve C, it is ideal for protecting circuits with moderate inrush currents, such as lighting and general power distribution. This 3-pole MCB complies with IEC/EN 60898-1 standards and is VDE certified, ensuring safety and performance.

Advantages

This MCB offers robust protection with a short-circuit breaking capacity of 6 kA, suitable for residential and commercial applications. Its compact 3-module width (54 mm) saves space on DIN rail mounting. The screw terminals accommodate conductors up to 25 mm², providing secure connections. With an electrical endurance of 10,000 cycles and mechanical endurance of 20,000 cycles, it delivers long-lasting reliability.

Suitable for

• Overcurrent protection in distribution boards
• Lighting circuits, socket outlets, and general power circuits
• Residential, commercial, and light industrial installations
• Systems requiring VDE and CE certification

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3P
• Rated Current: 16 A
• Tripping Curve: C
• Short-circuit Breaking Capacity (Icn): 6 kA
• Rated Voltage (AC): 230/400 V AC
• Frequency: 50/60 Hz
• Standard: IEC/EN 60898-1
• Mounting Type: DIN Rail (EN 60715)
• Terminal Capacity (Solid/Stranded): 1-25 mm²
• Protection Degree: IP20 (terminals), IP40 (enclosure)
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Energy Limiting Class: 3
• Operating Temperature Range: -25°C to +55°C
• Connection Type: Screw terminals
• Module Width: 3 modules (54 mm)
• Certification: VDE, CE

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. This MCB is designed for use in distribution boards with DIN rail mounting. Always verify compatibility with your system's voltage and current requirements.
