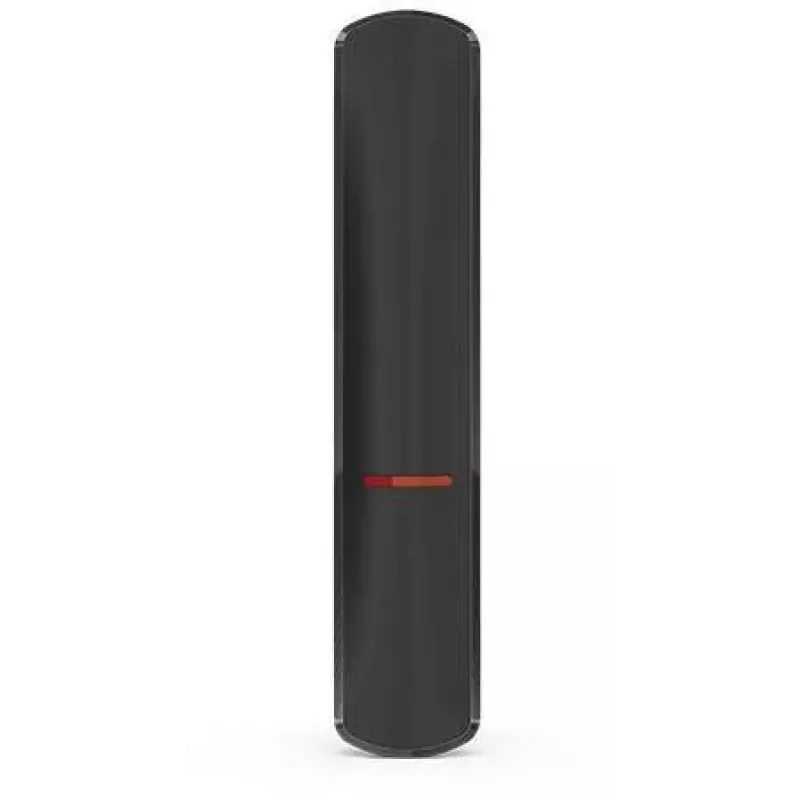

SATEL XD-2 DG Καθολικός ανιχνευτής (PIR & μικροκυμάτων)

The SATEL XD-2 DG is a universal indoor detector combining passive infrared (PIR) and microwave (MW) technologies for reliable intrusion detection. Designed for professional security systems, it offers pet immunity up to 20 kg and active IR anti-masking, making it suitable for residential and commercial applications.

Advantages

Dual-technology detection reduces false alarms by requiring both PIR and microwave triggers. The built-in anti-masking feature detects attempts to block the sensor. Independent sensitivity adjustment for PIR and MW allows fine-tuning. The detector supports 2EOL/NC and 3EOL/NC resistor configurations for flexible alarm panel integration.

Suitable for

• Indoor security systems in homes, offices, and retail spaces
• Areas requiring pet immunity up to 20 kg
• Installations where anti-masking is required
• Grade 2 compliant security systems

Key specifications

• Detection technology: PIR & Microwave (24.125 GHz)
• Detection range: up to 15 m
• Detection angle: 90°
• Pet immunity: up to 20 kg (selectable)
• Anti-masking: Active IR
• Tamper protection: against opening and removal
• Power supply: 12 V DC (±15%)
• Max current consumption: 20 mA
• Alarm output: NC relay (40 mA / 24 V DC)
• Operating temperature: -30°C to +55°C
• Security grade: Grade 2 (EN 50131-2-4)
• Mounting height: 2.4 m
• Housing material: ABS plastic

Recommendations

For optimal performance, mount at 2.4 m height and avoid direct sunlight or heat sources. Use with a compatible SATEL alarm panel for full feature support.
