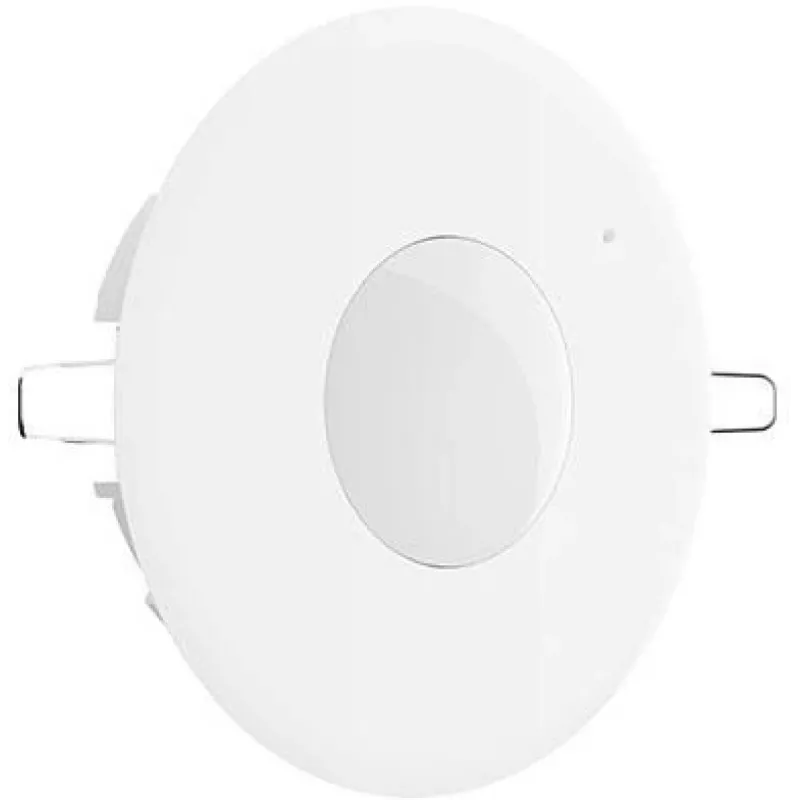

SATEL SLIM-R-PIR-LUNA ανιχνευτής κίνησης PIR οροφής

The SATEL SLIM-R-PIR-LUNA is a sophisticated ceiling-mounted passive infrared (PIR) motion detector designed for professional security systems. With a 360° detection angle and a diameter range of up to 12 meters, it provides comprehensive coverage for indoor spaces. The detector features digital signal processing and temperature compensation for reliable detection while minimizing false alarms. Its slim, discreet design makes it suitable for a variety of commercial and residential applications.

Advantages

This detector offers exceptional detection performance with advanced digital processing, ensuring accurate motion detection while ignoring environmental disturbances. The built-in EOL resistors simplify installation, and remote LED control allows for flexible configuration. Alarm memory and sensitivity adjustment provide additional customization options.

Suitable for

• Commercial offices and retail spaces
• Residential homes and apartments
• Warehouses and storage areas
• Educational and healthcare facilities

Key specifications

• Detection method: Passive Infrared (PIR)
• Mounting type: Ceiling
• Detection angle: 360°
• Detection range (diameter): Up to 12 m (at 2.4 m mounting height)
• Power supply: 12 V DC (±15%)
• Current consumption (standby): 10 mA
• Current consumption (max): 12 mA
• Alarm output: NC relay, 40 mA / 24 V DC
• Tamper output: NC relay, 40 mA / 24 V DC
• Operating temperature: -10°C to +55°C
• Protection class: IP20
• Digital signal processing: Yes
• Digital temperature compensation: Yes
• EOL resistors: 2EOL/NC (built-in)
• LED indicator control: Remote
• Alarm memory: Yes
• Sensitivity adjustment: Yes
• Compliance: EN 50131 Grade 2

Recommendations

For optimal performance, mount the detector at a height of 2.4 m and ensure the area is free from obstructions. Use with a compatible SATEL alarm control panel for full functionality.
