SATEL K-1 2E Πλευρική επαφή Reed με αντιστάσεις

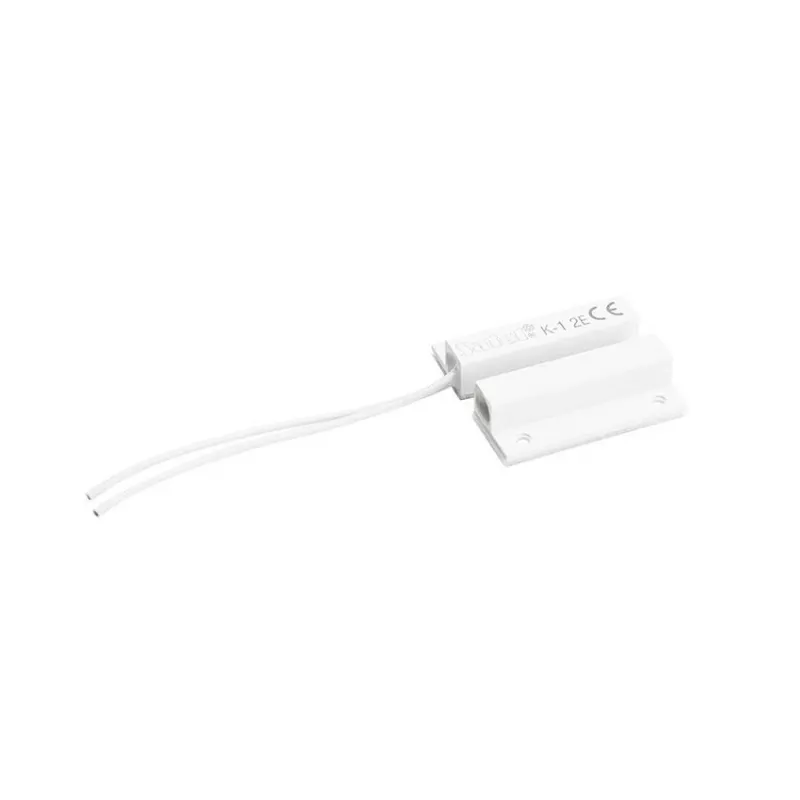

The SATEL K-1 2E is a wired side reed contact designed for door and window applications. It features a white housing and includes parametric resistors.

Key features

• Wired connectivity
• Suitable for door/window
• Colour: White
• Parametric resistance: 2 x 1100 Ω

Specifications

• Brand: Satel
• Model: K-1 2E
• Maximum switching voltage of reed contact: 20 V
• Maximum switching current: 0.02 A
• Weight: 10 g
• Minimum number of switching operations at 20 V, 20 mA: 360,000
• Contact material: Ru (Ruthenium)
• Reed contact closing distance: 18 mm
• Reed contact opening distance: 28 mm
• Parametric resistance: 2 x 1100 Ω
