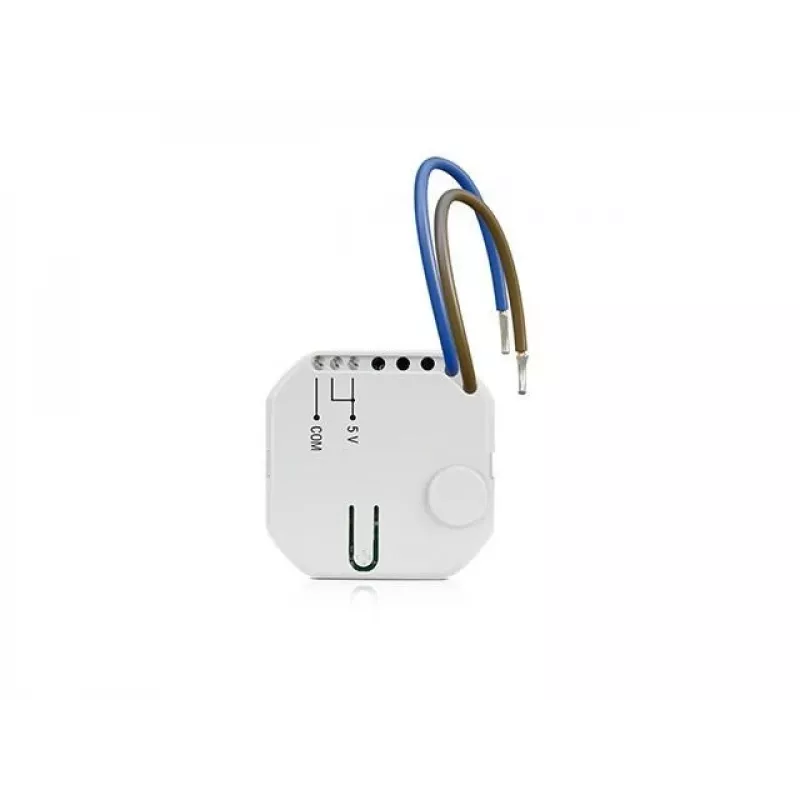

SATEL APS-055 BE WAVE Τροφοδοτικό χωνευτό 5V 0,5A

The SATEL APS-055 BE WAVE is a compact flush-mount power supply designed for in-wall installation in standard Ø60mm electrical boxes. It provides a stable 5V DC output at 0.5A, ideal for powering low-voltage devices such as sensors, controllers, or LED lighting. With its screw terminal connections and built-in overload and short-circuit protection, this power supply ensures reliable and safe operation in residential and commercial security systems.

Advantages

Flush-mount design saves space and allows discreet installation inside electrical boxes. The switching AC/DC technology ensures high efficiency and low heat generation. Overload and short-circuit protection safeguard connected equipment. Screw terminals provide secure and easy wiring.

Suitable for

• Powering SATEL BE WAVE series devices and other low-voltage security components
• In-wall installations where a compact, flush power source is required
• Applications needing a regulated 5V DC supply up to 0.5A

Key specifications

• Input: 230V AC, 50/60 Hz
• Output: 5V DC, 0.5A (500mA), 2.5W
• Mounting: Flush-mount (in-wall box, Ø60mm)
• Connections: Screw terminals (input and output)
• Protection: Overload, short circuit
• Enclosure: Plastic
• Operating temperature: 0°C to 40°C
• Certifications: CE, RoHS

Recommendations

Ensure the electrical box is properly grounded and the power supply is installed by a qualified electrician. Do not exceed the rated output current. For outdoor use, protect from moisture.
