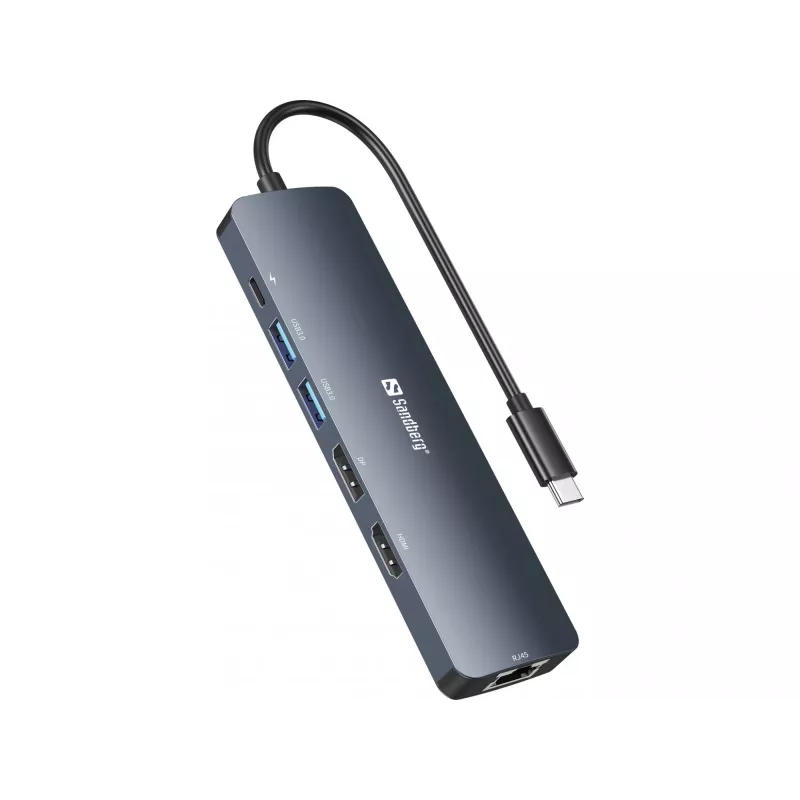

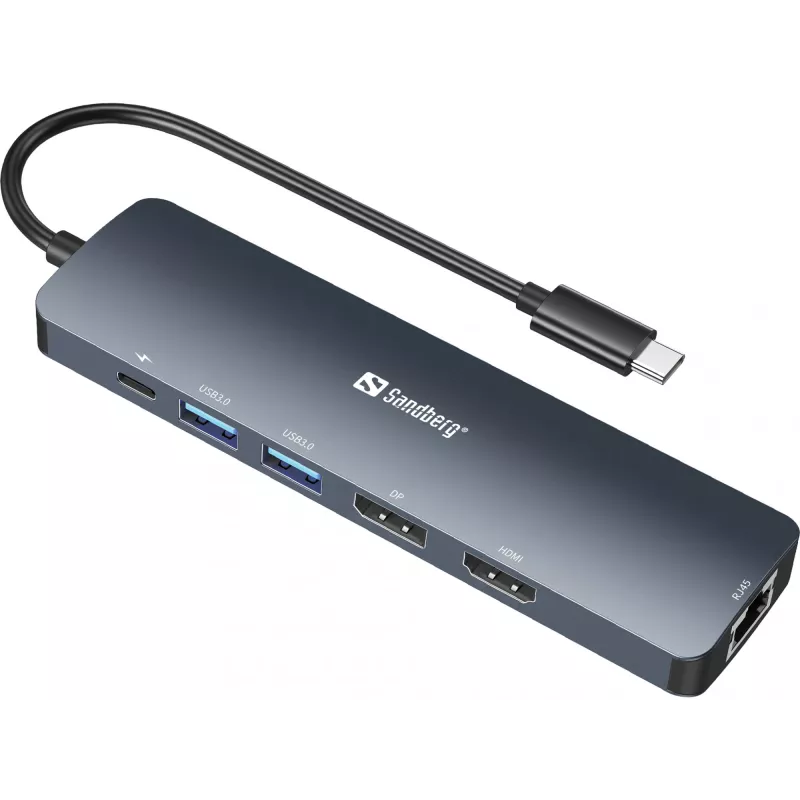

Sandberg USB-C 8K Display Dock USB 3.2 Gen 1 Type-C 100W Power Delivery

The Sandberg USB-C 8K Display Dock is a compact multi-monitor docking solution that expands a USB-C laptop with two external displays, wired Ethernet and additional USB ports. It supports USB 3.2 Gen 1 Type-C host connection, offers up to 100 W Power Delivery for laptop charging and is housed in a durable grey aluminium casing. The dock provides DisplayPort and HDMI video outputs, two USB-A ports for peripherals and an RJ45 connector for cabled network access, making it suitable for Windows 10 and 11 systems.

Advantages

This USB-C dock enables connection of two extra monitors while delivering up to 100 W PD power to the laptop and preserving a USB 3.2 Gen 1 data link for fast peripheral transfer. The integrated RJ45 port supports Ethernet LAN up to 100 Mbit/s and the aluminium construction offers a robust, low-profile design that fits mobile and desktop workstations.

Suitable for

• Extending a laptop workspace with two external monitors
• Connecting wired Ethernet in locations without stable Wi‑Fi
• Attaching USB-A peripherals such as mouse, keyboard or external storage
• Using on Windows 10 and Windows 11 systems

Key specifications

• Host interface: USB 3.2 Gen 1 (Type-C)
• Power Delivery: up to 100 W
• Video outputs: DisplayPort and HDMI (supports dual-monitor setup)
• USB ports: two USB 3.2 Gen 1 Type-A ports
• Network: RJ45 Ethernet (up to 100 Mbit/s)
• Material and colour: aluminium, grey
• Weight: 0.075 kg

How to use

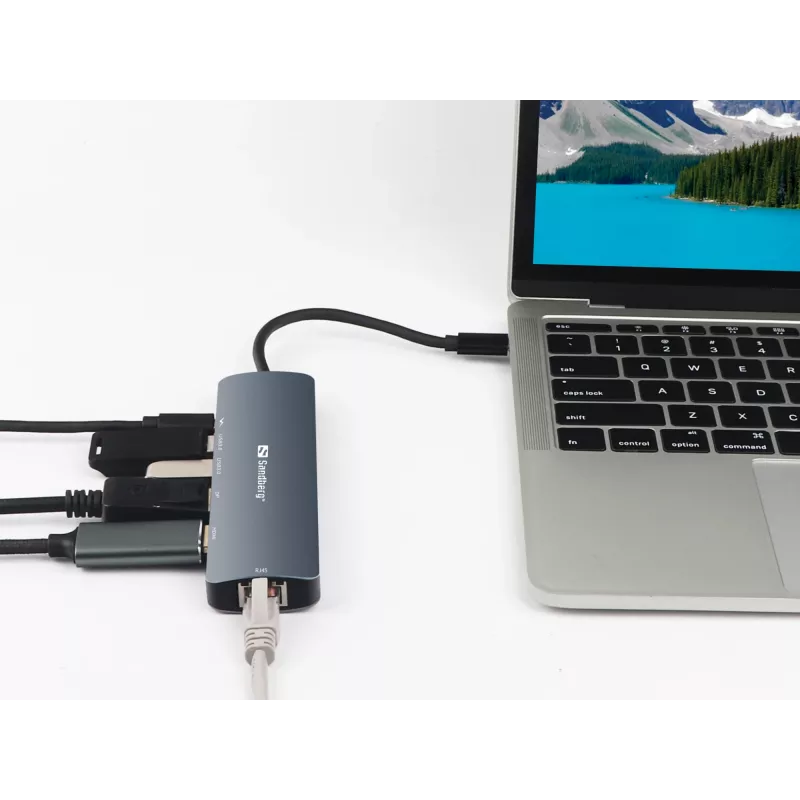

Connect the dock to your laptop using the USB-C host interface. Attach one or two external monitors to the DisplayPort and/or HDMI outputs, plug in any USB-A peripherals into the available ports and connect a network cable to the RJ45 port if required. If your laptop needs charging through the dock, attach a USB-C PD power adapter to the dock’s power input to enable up to 100 W Power Delivery.

Recommendations

For optimal performance, use high-quality HDMI/DisplayPort cables and a compatible USB-C PD charger rated up to 100 W. Ensure your laptop’s USB-C port supports video output (DisplayPort Alt Mode) and Power Delivery for full functionality.
