S CONN MAXIMUM CONNECTIVITY καλώδιο επέκτασης PV4 4mm² συσκευασία 2 τεμ. μαύρο 10m (02-32075)

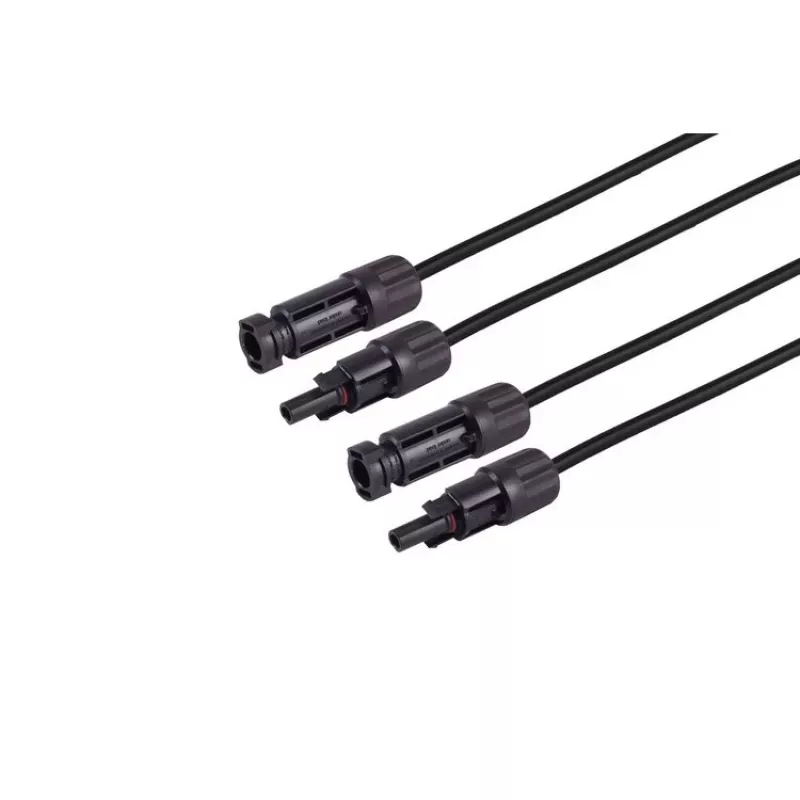

Solar installations often need extra reach between panels and the inverter. The S CONN MAXIMUM CONNECTIVITY PV4 Extension Cable set solves this with two 10-meter cables, each fitted with MC4-compatible connectors, ready to bridge the gap without custom crimping.

Who is it for

Installers and DIY solar enthusiasts who need a reliable, weather-resistant extension for photovoltaic systems. It suits both new installations and retrofits where panel placement demands longer cable runs.

Main features

• Set of two 10 m extension cables with 4 mm² cross-section
• MC4-compatible male-to-female connectors for easy daisy-chaining
• Tinned copper conductors with XLPE insulation for durability
• Rated for 1000 V DC and up to 39 A
• UV and ozone resistant, IP67 connector protection
• Operating temperature range -40°C to +90°C

Specifications

• Product type: Solar extension cable
• Cable length: 10 m
• Cable cross-section: 4 mm²
• Number of cables in set: 2
• Connector type: MC4 compatible
• Connector gender: Male to female (per cable)
• Cable colour: Black
• Conductor material: Tinned copper
• Insulation material: XLPE
• Rated voltage (DC): 1000 V
• Rated current: Up to 39 A
• Operating temperature range: -40°C to +90°C
• UV resistance: Yes
• Ozone resistance: Yes
• Weather protection (connectors): IP67
• Flame retardant: Yes
• Certification: TÜV Rheinland, CE
• Outer cable diameter: Approx. 6.1 mm

Tips

Check the total cable run before ordering. With two 10 m cables, you can extend each string by up to 20 m when both are used in series. Keep connectors clean and dry before mating to ensure a long service life.
