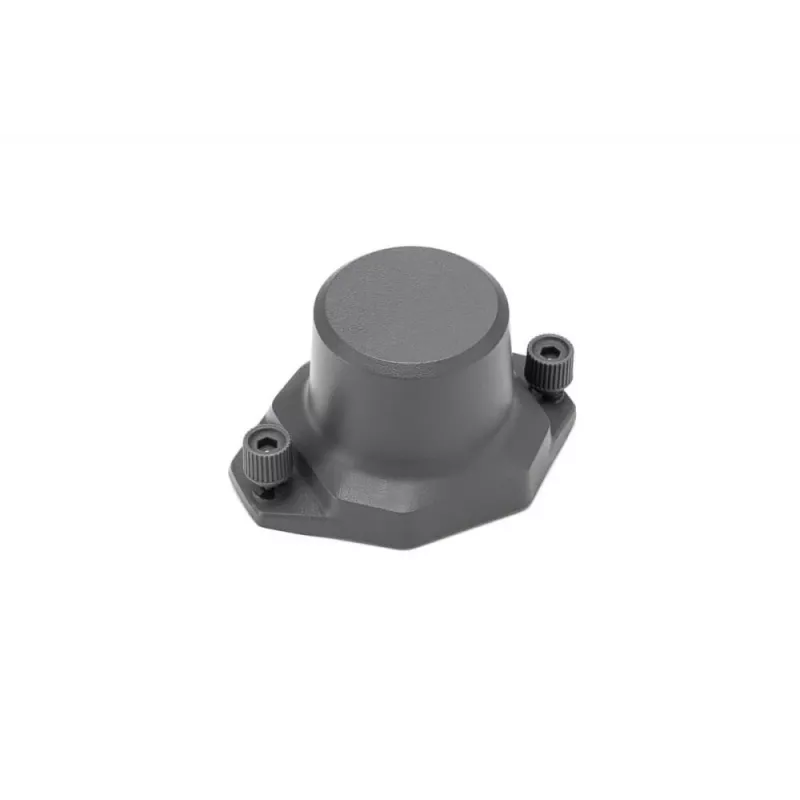

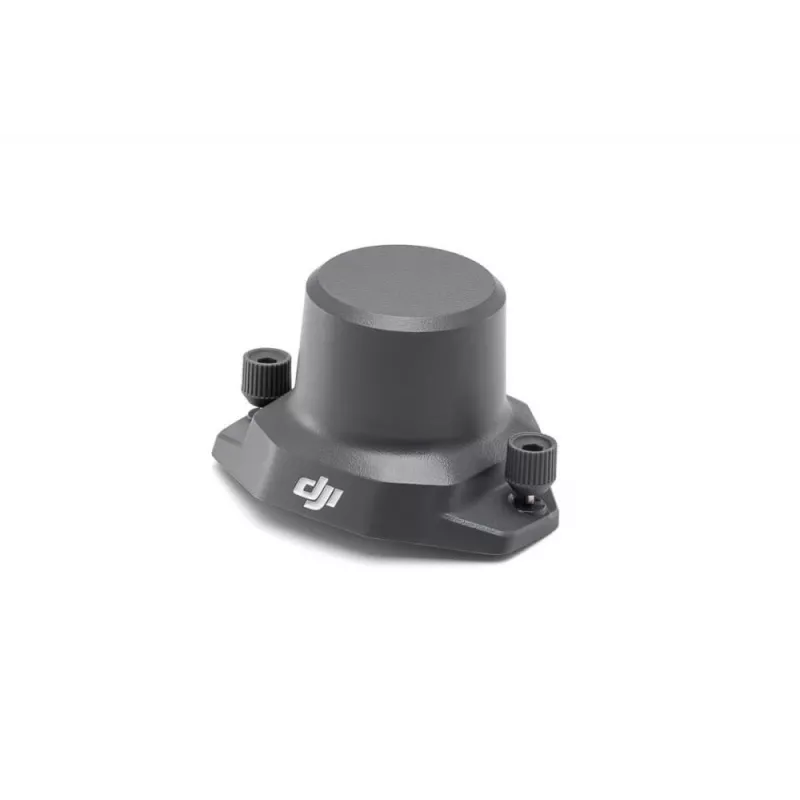

RTK module DJI Mavic 3 Enterprise Series Γκρι 40,2 x 50,2 x 66,2 mm

The DJI Mavic 3 Enterprise Series RTK Module is an add-on positioning unit compatible with DJI Mavic 3 Enterprise aircraft. Designed to provide centimeter-level positioning accuracy when used with Network RTK services, Custom Network RTK, or a D-RTK 2 Mobile Station, the module supports precise aerial surveying and mapping while keeping power consumption low. The module measures 40.2 × 50.2 × 66.2 mm, weighs approximately 0.024 kg, and is finished in grey for integration with enterprise drone configurations.

Advantages

The RTK Module delivers high-precision positioning to improve the accuracy of geotagged imagery and survey data. It is compatible with DJI Mavic 3 Enterprise Series aircraft and supports multiple RTK sources (Network RTK, Custom Network RTK, D-RTK 2), allowing flexible deployment. The unit is compact and lightweight, which minimizes impact on drone payload and flight performance while maintaining low power consumption.

Suitable for

• Aerial surveying and mapping
• Inspection and asset management
• Precision agriculture data capture
• Search, rescue and emergency response missions requiring accurate positioning

Key specifications

• Compatibility: DJI Mavic 3 Enterprise Series
• Positioning accuracy: Centimeter-level when used with Network RTK, Custom Network RTK, or D-RTK 2 Mobile Station
• Dimensions (W × D × H): 40.2 × 50.2 × 66.2 mm
• Weight: 0.024 kg
• Colour: Grey
• Manufacturer part number (MPN): CP.EN.00000417.01

How to use

Install the RTK Module on a compatible DJI Mavic 3 Enterprise Series aircraft according to the aircraft's accessory installation instructions. Select and enable an RTK source — Network RTK service, Custom Network RTK service or D-RTK 2 Mobile Station — and confirm signal reception and fix status in the flight controller or companion app before takeoff. Operate the drone in accordance with local regulations and the aircraft user manual to ensure safe flights and accurate positioning results.

Recommendations

For optimal centimeter-level accuracy, use the RTK Module in open areas clear of buildings, dense vegetation, and other obstacles that can block satellite signals or interfere with RTK corrections.
