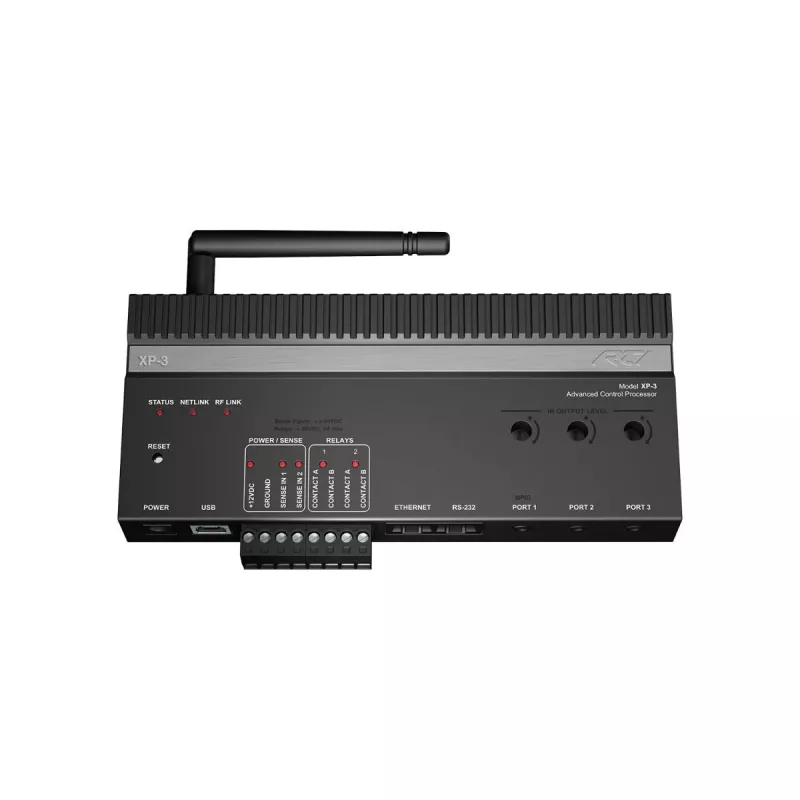

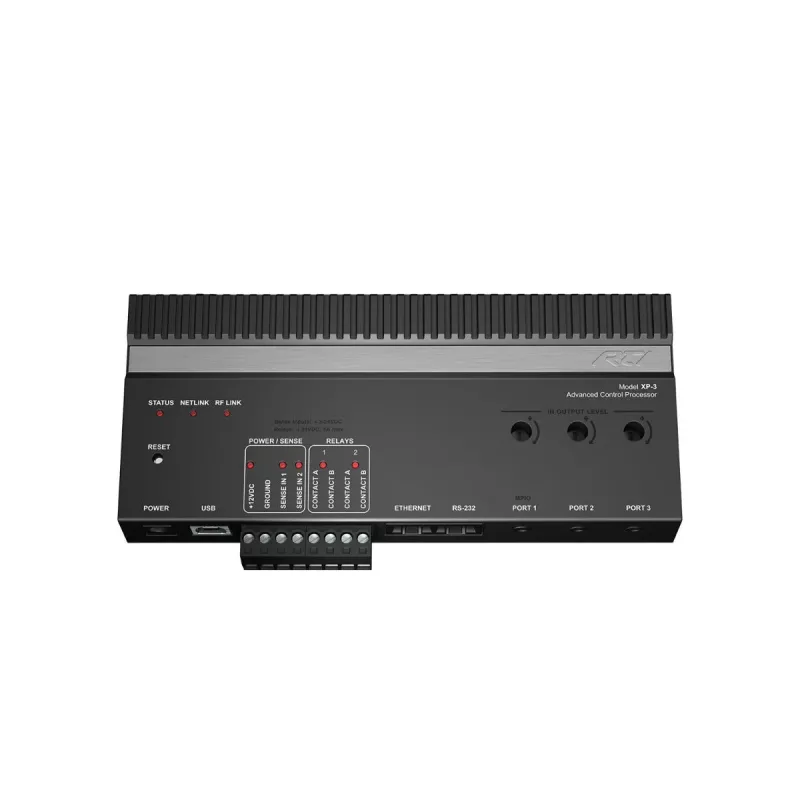

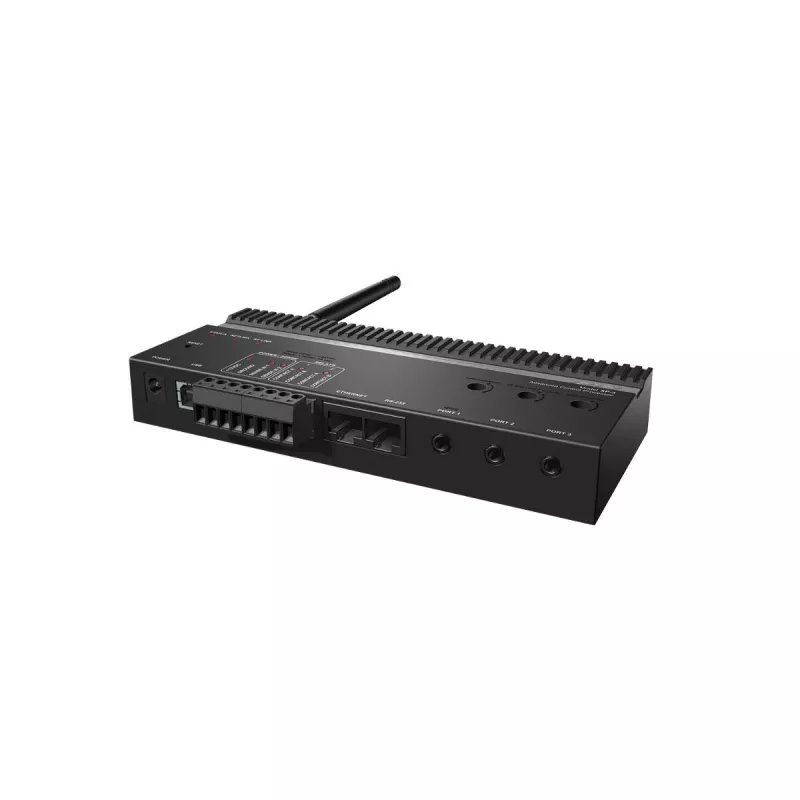

RTI XP-3 Επεξεργαστής ελέγχου με RS232, IR, ρελέ και I/O

The RTI XP-3 is a high-performance control processor designed for advanced automation systems. It offers comprehensive connectivity with RS-232, IR, relay, and sense inputs, making it ideal for controlling a wide range of audio/video and smart home devices. With its powerful 32-bit processor and ample memory, the XP-3 ensures reliable and responsive control for complex installations.

Advantages

Seamless integration with RTI's Integration Designer software allows for custom programming and easy system expansion. The processor features a real-time clock with battery backup for scheduled events, and front panel LEDs provide clear status indication. Its compact design supports rack or shelf mounting, offering flexibility in installation.

Suitable for

• Home theater and multi-room audio/video systems
• Conference rooms and boardrooms
• Smart home automation projects
• Commercial AV control applications

Key specifications

• Processor: High-performance 32-bit processor
• Flash Memory: 128 MB
• SDRAM Memory: 64 MB
• IR Outputs: 6 (variable output)
• RS-232 Ports: 3 (bidirectional)
• Relay Outputs: 3 (low voltage)
• Sense Inputs: 3 (voltage or contact closure)
• Ethernet Port: 1 (10/100Base-T)
• USB Port: 1 (for programming/accessories)
• Power Input: 12V DC, 1A (power supply included)
• Mounting: Rack-mountable (with optional rack ears), shelf-mountable
• Real-time Clock: Yes (with battery backup)
• Status Indicators: Front panel LEDs
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Operating Humidity: 5% to 95% non-condensing

Recommendations

For optimal performance, use the RTI Integration Designer software for programming. The XP-3 is best suited for medium to large-scale control systems requiring multiple communication protocols.
