ROSE&TULIPANI ROPAM Basic4G-BOX LTE + GSM Σετ μονάδας σε κουτί επιφανείας

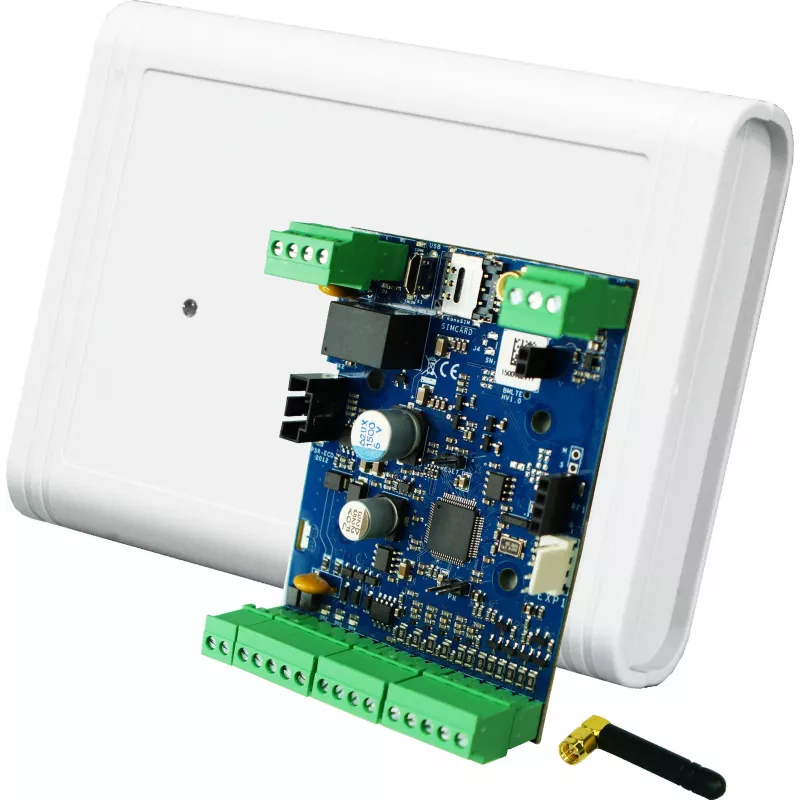

The ROSE&TULIPANI ROPAM Basic4G-BOX is a comprehensive LTE and GSM communication module set designed for alarm systems, access control, automation, and remote monitoring applications. This kit includes the Basic4G LTE module and the AT-GSM-MINI90 GSM module, all housed in a convenient surface-mounted enclosure. It offers reliable 4G/2G connectivity, multiple programmable inputs and outputs, and versatile control options via SMS, CLIP, RopamBridge App, or USB.

Advantages

Dual communication technology (LTE and GSM) ensures robust connectivity. Four programmable inputs and two outputs allow flexible integration with various sensors and devices. The surface-mounted enclosure simplifies installation. Remote monitoring and control via SMS, app, or USB provide convenience and accessibility.

Suitable for

• Alarm systems
• Access control systems
• Building automation
• Remote monitoring of equipment

Key specifications

• Communication Technology: LTE (4G) / GSM (2G)
• Included Modules: Basic4G (LTE), AT-GSM-MINI90 (GSM)
• Enclosure Type: Surface-mounted
• Number of Inputs: 4 (programmable, NO/NC, analog, digital)
• Number of Outputs: 2 (relay, OC type)
• Power Supply Voltage: 10-14V DC
• Max Current Consumption: 200 mA (during transmission)
• SIM Card Type: Mini-SIM (2FF)
• Antenna Connector: SMA
• Control Methods: SMS, CLIP (DTMF), RopamBridge App, USB
• Monitoring Features: Event reporting via SMS, GPRS/LTE (TCP/IP), voice calls
• Supported Protocols: GPRS/LTE (TCP/IP), SMS, CLIP
• Temperature Sensor Support: Yes (optional external sensors)
• Firmware Update: Via USB, GPRS/LTE
• Operating Temperature Range: -10°C to +55°C
• Configuration Interface: USB port
• Event Memory: Internal log

Recommendations

For optimal performance, use a high-quality Mini-SIM card with an active data plan. Ensure the power supply provides stable 12V DC. The antenna should be placed in a location with good cellular reception.
