Rittal TS 8800.590 γρήγορος συνδετήρας σειράς – συνδετήρας πάνελ για θήκες TS 8800

Rittal TS 8800.590 Anreihschnellverbinder – panel connector for TS 8800 enclosures is a mechanical joining element developed for the Rittal TS 8800 enclosure system. It is intended to connect adjacent enclosure panels quickly and reliably, ensuring stable alignment and a secure mechanical link between modular control and distribution cabinets. The product supports efficient assembly workflows and helps maintain consistent panel spacing and fit in industrial electrical installations.

Advantages

The panel connector provides a fast, repeatable method to join TS 8800 panels without the need for extensive mechanical work. Its design ensures secure fixation and alignment while minimizing assembly time. The connector contributes to a neat, uniform cabinet exterior and reduces the risk of misalignment during transport or installation. Compatibility with the TS 8800 system allows straightforward integration into existing layouts.

Suitable for

Key specifications

How to use

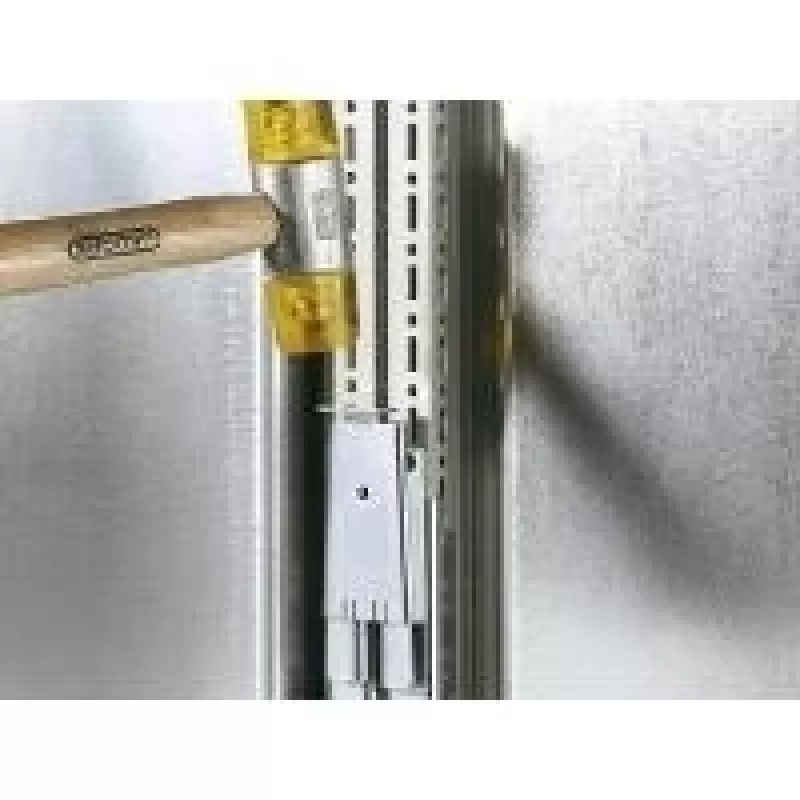

Position the connector between the mating edges of two TS 8800 panels and engage it according to the enclosure system's assembly procedure. Ensure panel edges are properly aligned before final tightening or securing. Follow any torque or fixation recommendations specified in the TS 8800 installation guidelines to achieve consistent fit and mechanical stability. Verify alignment after installation and adjust as needed to maintain uniform panel spacing.

Recommendations

Use the connector as part of the TS 8800 assembly process and follow the enclosure manufacturer's instructions for mounting order, torque settings, and safety procedures. For best results, inspect connectors and panel edges for damage prior to installation and re-check tightness after initial operation or transport.
