Rittal Mini-PLS Στοιχείο ασφαλειοθήκης D02 E18 40mm SV 9630005 - πλαστικό

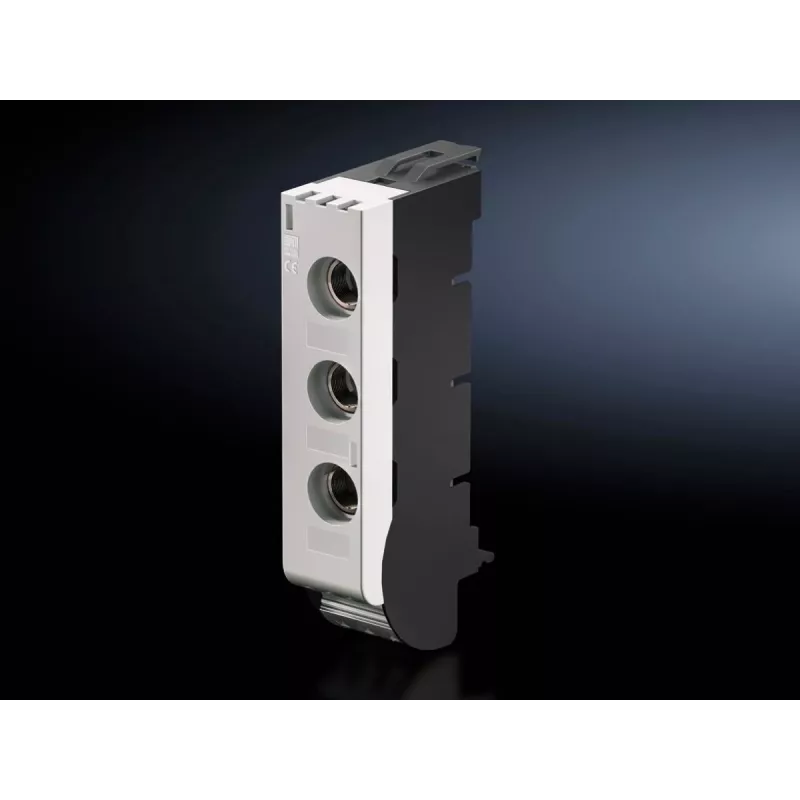

Securing D02 fuse links in a Rittal Mini-PLS busbar system requires a reliable rider element that provides both mechanical support and electrical contact. The Rittal Mini-PLS Reitersicherungselement D02-E18 40mm SV 9630005 is a plastic fuse holder element designed for this purpose.

Who is it for

This fuse holder element is intended for use in electrical distribution systems built on the Rittal Mini-PLS busbar system, where D02 (Neozed) fuse links with E18 size are employed. It suits panel builders and maintenance personnel needing a secure mounting solution for 1-pole fuse protection.

Main features

• Compatible with D02 (Neozed) fuse links, size E18
• Mounts as a rider element on Rittal Mini-PLS busbar
• 1-pole design with 40 mm module width
• Constructed from plastic, light grey (RAL 7035)
• Rated for 400 V AC / 250 V DC system voltage
• Maximum fuse current 63 A

Specifications

• Product Type: Fuse Holder Element
• Fuse Type Compatibility: D02 (Neozed)
• Fuse Size: E18
• System Compatibility: Rittal Mini-PLS Busbar System
• Material: Plastic
• Number of Poles: 1
• Rated Voltage: 400 V AC / 250 V DC
• Max Rated Current: 63 A
• Module Width: 40 mm
• Colour: Light Grey (RAL 7035)
• Protection Degree: IP20
• Operating Temperature: -25 °C to +55 °C
• Storage Temperature: -40 °C to +80 °C
• Flammability Rating: UL 94 V-0

Tips

Ensure the busbar system is de-energized before installation. The rider element snaps onto the Mini-PLS busbar, and the D02 fuse link is then inserted into the holder. Verify that the fuse current rating does not exceed 63 A.
