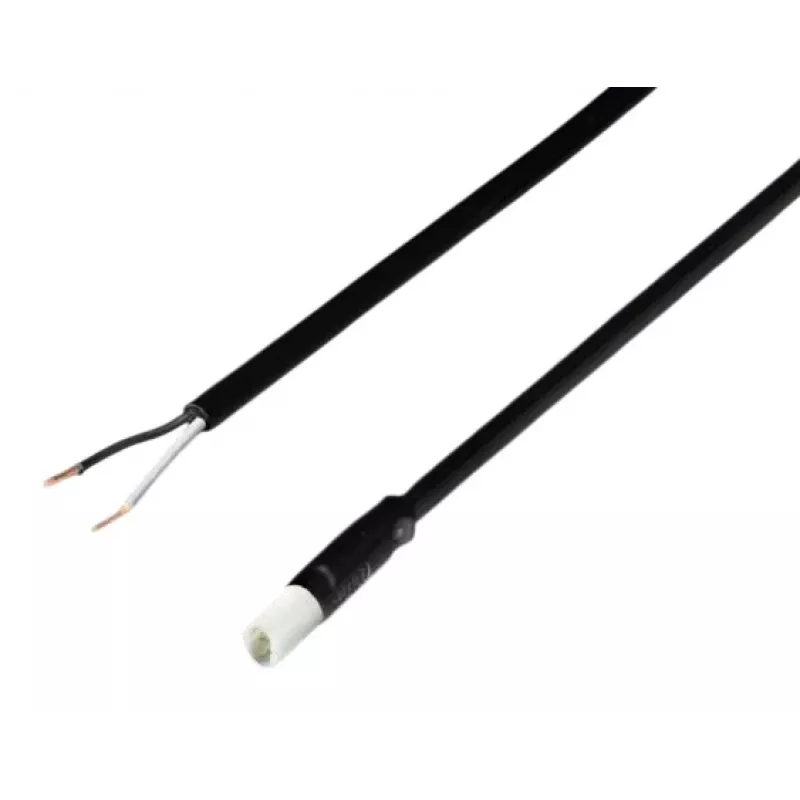

Rittal Καλώδιο σύνδεσης για διακόπτη θέσης πόρτας, Μαύρο, 2,5 m 2500660

When a door position switch needs a reliable, pre-assembled connection to the control system, this Rittal cable eliminates the need for on-site wiring and reduces installation errors. It is built specifically for Rittal door position switches, ensuring a secure fit and consistent signal transmission.

Who is it for

Panel builders, system integrators, and maintenance technicians who install or replace door position switches in enclosures and need a plug-and-play connection without custom cable assembly.

Main features

• Pre-assembled with a 3-pole plug-in connector on the switch side and open end on the control side for direct terminal connection.
• 2.5 m black PVC cable with 3 conductors, each 0.75 mm² cross-section.
• Rated for up to 250 V AC and 6 A, suitable for typical door position switch circuits.
• Operating temperature range from -25 °C to +70 °C, covering most indoor and outdoor enclosure applications.

Specifications

• Product type: Connection cable
• Application: Door position switch
• Cable length: 2.5 m
• Colour: Black
• Connector 1: 3-pole plug-in connector
• Connector 2: Open end
• Number of conductors: 3
• Conductor cross-section: 0.75 mm²
• Rated voltage: Max. 250 V AC
• Rated current: Max. 6 A
• Jacket material: PVC
• Operating temperature: -25 °C to +70 °C
• Compatibility: Rittal door position switches (e.g., 2500.650)

Tips

Verify the connector orientation and pin assignment of your specific door position switch before installation. For longer cable runs, consider using an extension with appropriate cross-section to avoid voltage drop.
