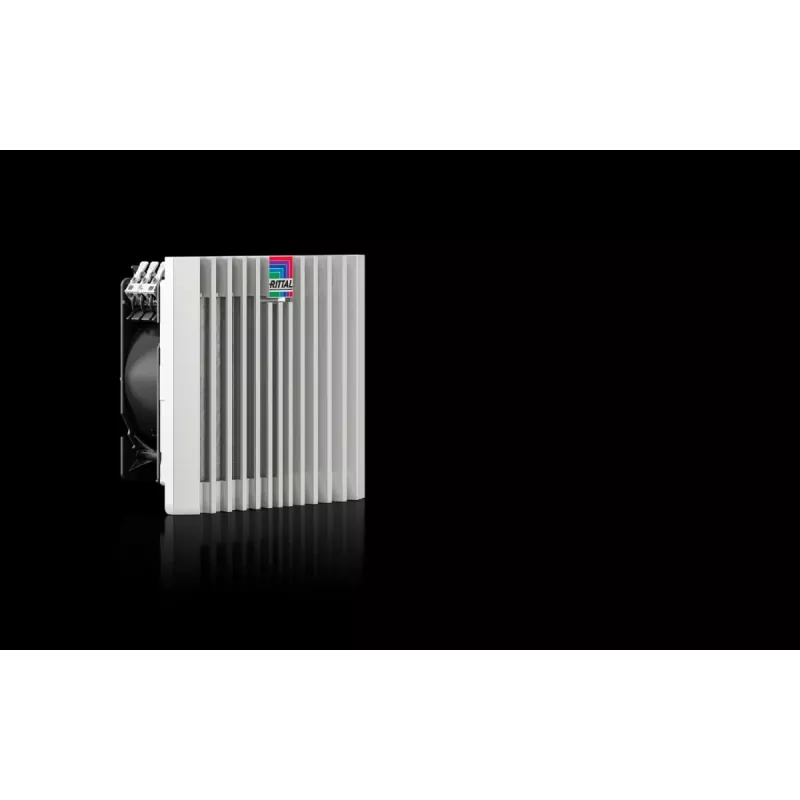

Rittal Blue e+ EMC ανεμιστήρας φίλτρου 53/64 m³/h RAL 7035 3238800

The Rittal Blue e+ EMC Filter Fan delivers 64 m³/h unimpeded airflow, dropping to 53 m³/h with the filter mat, while providing EMC shielding to protect sensitive electronics from electromagnetic interference.

Overview

Part of the Blue e+ series, this filter fan is engineered for enclosures requiring reliable thermal management and electromagnetic compatibility. The housing is made of plastic (ABS) in RAL 7035 light grey, with snap-on mounting for quick installation. It operates on 230 V AC at 50/60 Hz, with power consumption of 23 W at 50 Hz and 22 W at 60 Hz.

What stands out

• EMC shielding prevents electromagnetic interference
• Dual airflow ratings: 64 m³/h unimpeded, 53 m³/h with filter mat
• Low power consumption: 23 W (50 Hz) / 22 W (60 Hz)
• Quiet operation: 50 dB(A) at 50 Hz, 52 dB(A) at 60 Hz
• IP 54 protection category for dust and water resistance
• Snap-on mounting for tool-free installation

Technical details

• Product Type: Filter Fan
• Series: Blue e+
• EMC Shielding: Yes
• Airflow (unimpeded): 64 m³/h
• Airflow (with filter mat): 53 m³/h
• Rated Operating Voltage: 230 V AC
• Rated Frequency: 50/60 Hz
• Power Consumption (50 Hz): 23 W
• Power Consumption (60 Hz): 22 W
• Noise Level (50 Hz): 50 dB(A)
• Noise Level (60 Hz): 52 dB(A)
• Protection Category: IP 54
• Housing Material: Plastic (ABS)
• Color: RAL 7035 (Light Grey)
• Mounting Type: Snap-on mounting
• Installation Cut-out: 223 x 223 mm
• Operating Temperature Range: -10 °C to +55 °C

Our verdict

A reliable EMC-shielded filter fan for enclosures where electromagnetic compatibility is critical. Its efficient airflow and low noise make it suitable for a wide range of industrial applications.
