Rittal 4050757 Μονωμένο ακροχιτώνιο 0,34 mm² τυρκουάζ 500 τεμ.

Terminating fine-stranded conductors in control cabinets and industrial wiring often leads to splayed strands, poor contact, and unreliable screw or spring clamp connections. Rittal 4050757 insulated wire end ferrules solve this by providing a gas-tight, mechanically stable crimp that protects the conductor and ensures a durable, vibration-resistant connection.

Who is it for

Electrical installers, panel builders, and maintenance technicians working with fine-stranded copper conductors in automation, switchgear, and control systems. Suitable for professionals who require consistent, high-quality terminations in accordance with DIN 46228 Part 4.

Main features

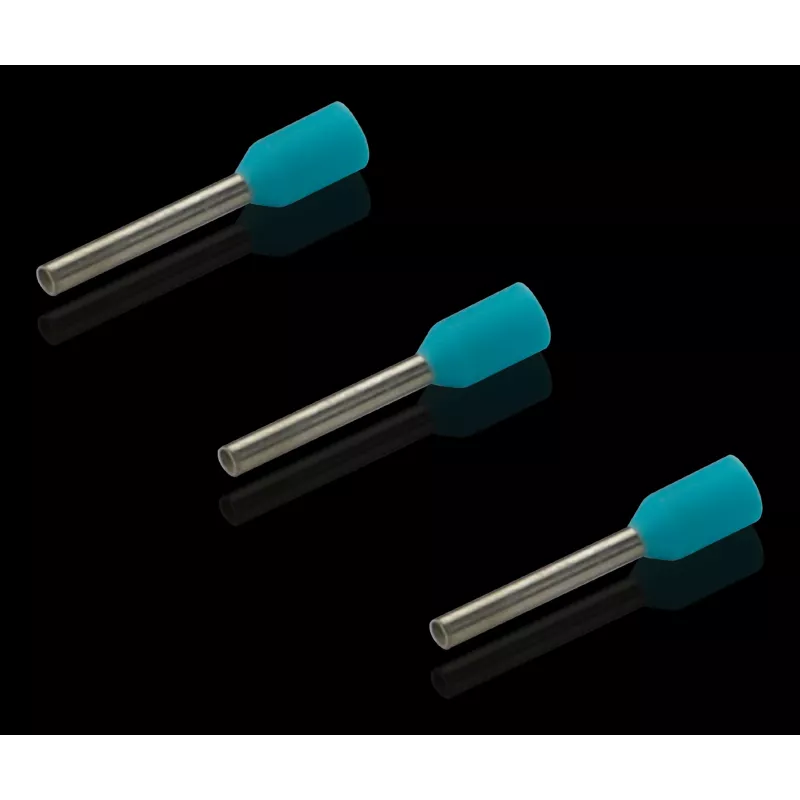

• Insulated wire end ferrule for 0.34 mm² fine-stranded conductors
• Turquoise polypropylene insulation with funnel-shaped collar for easy wire insertion
• Electrolytic copper body, tin-plated for corrosion resistance and low contact resistance
• Metal length 8 mm, total length 14 mm
• Pack of 500 pieces
• Halogen-free insulation

Specifications

• Type: Insulated wire end ferrule
• Conductor cross-section: 0.34 mm²
• Insulation colour: Turquoise
• Quantity: 500 pieces
• Ferrule material: Electrolytic copper, tin-plated
• Insulation material: Polypropylene (PP)
• Insulation design: Funnel-shaped collar
• Ferrule length (metal part): 8 mm
• Total length (with insulation): 14 mm
• Temperature range: -40 °C to +105 °C
• Standard compliance: DIN 46228 Part 4
• Application: Termination of fine-stranded conductors
• Voltage rating: Up to 1000 V
• Halogen-free: Yes

Tips

Use a crimping tool with a suitable die profile for insulated ferrules to achieve a reliable crimp. Ensure the stripped conductor length matches the metal ferrule length so that the insulation collar is not crimped. Store ferrules in a dry environment to prevent oxidation of the tin plating.
