Ρελέ χαμηλής τάσης χωνευτό PPS-01 Tech Sterowniki

The Tech Sterowniki PPS-01 is a low-voltage flush-mounted relay module designed for reliable switching of lighting, fans, and other electrical loads in standard residential and commercial installations. It fits into a standard Ø60mm electrical box and is controlled via a potential-free (dry contact) input, making it ideal for use with push-button switches or automation systems.

Advantages

Compact flush-mount design saves space and integrates seamlessly behind switches or in junction boxes. Monostable operation ensures clear ON/OFF toggling with each pulse. Low power consumption (<1W) and high load capacity (16A / 3680W) make it suitable for a wide range of applications. CE compliant for safety and reliability.

Suitable for

• Switching lighting circuits
• Controlling fans and small motors
• Integration with home automation systems
• Replacing traditional relays in flush-mounted installations

Key specifications

• Supply Voltage: 230V AC, 50Hz
• Max Load Current: 16A
• Max Load Power: 3680W
• Output: 1x NO (Normally Open) relay contact
• Control Input: Potential-free (dry contact)
• Mounting: Flush-mounted (Ø60mm box)
• Operating Temperature: 5°C to 50°C
• Protection Rating: IP20
• Power Consumption: <1W
• Housing Material: Flame-retardant plastic

Recommendations

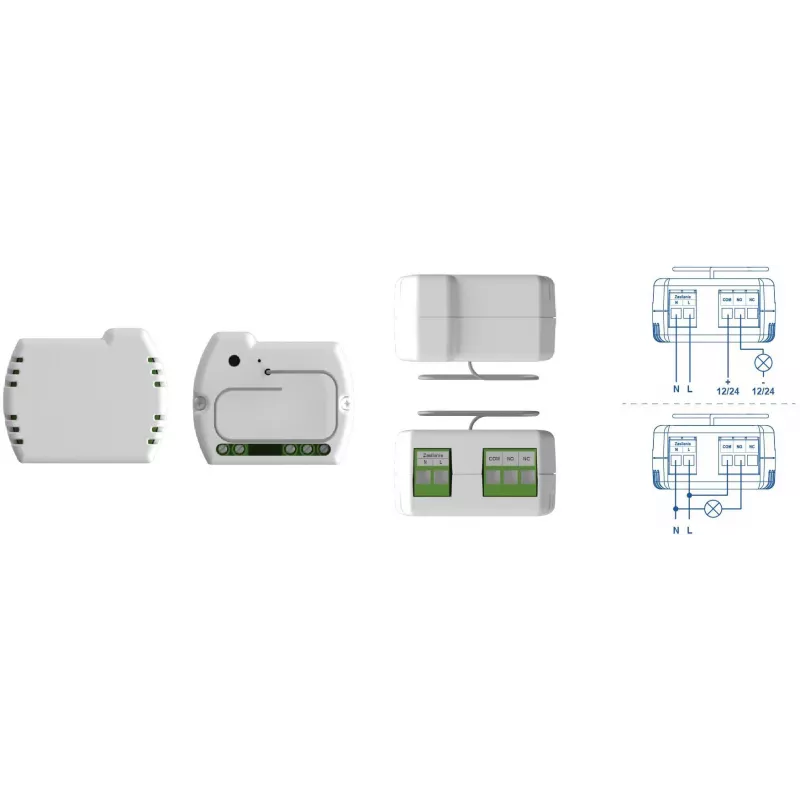

For best performance, use with a momentary push-button switch. Ensure proper wiring: 2-wire connection for control input. Suitable for indoor use only.
