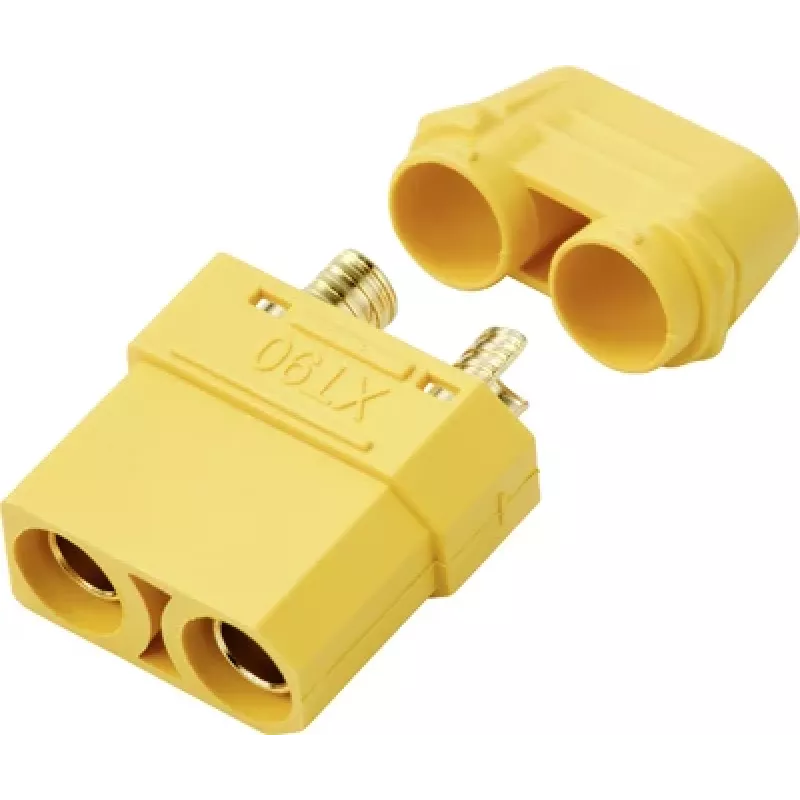

Reely RE-7471836 XT90 επιχρυσωμένη υποδοχή μπαταρίας θηλυκό βύσμα (1 τεμ.)

High-current connections in RC models and drones often fail when standard connectors overheat or develop resistance. The Reely RE-7471836 XT90 socket solves this with a gold-plated, high-amperage design built for demanding power systems.

Who is it for

RC hobbyists, drone builders, and battery pack assemblers who need a reliable, low-resistance connector for high-current applications up to 90 A continuous.

Main features

• XT90 female socket with gold-plated contacts for minimal resistance and corrosion resistance
• Rated for 90 A continuous and 120 A peak current
• Supports up to 500 V DC and wire gauges up to 8 AWG
• Durable nylon housing and copper alloy contacts withstand over 1000 mating cycles
• Operating temperature range from -20 to +120 °C

Specifications

• Connector type: XT90 socket (female)
• Contact plating: Gold
• Continuous current rating: 90 A
• Peak current rating: 120 A
• Max. voltage: 500 V DC
• Wire gauge compatibility: up to 8 AWG
• Housing material: Nylon (PA)
• Contact material: Copper alloy
• Insulation resistance: > 500 MΩ
• Mating cycles: 1000+
• Mounting method: Solder
• Colour: Yellow
• Quantity per pack: 1

Tips

Use a high-quality soldering iron and flux to ensure a solid connection when attaching wires. Pair with a matching XT90 male connector (sold separately) for a secure, low-resistance link.
