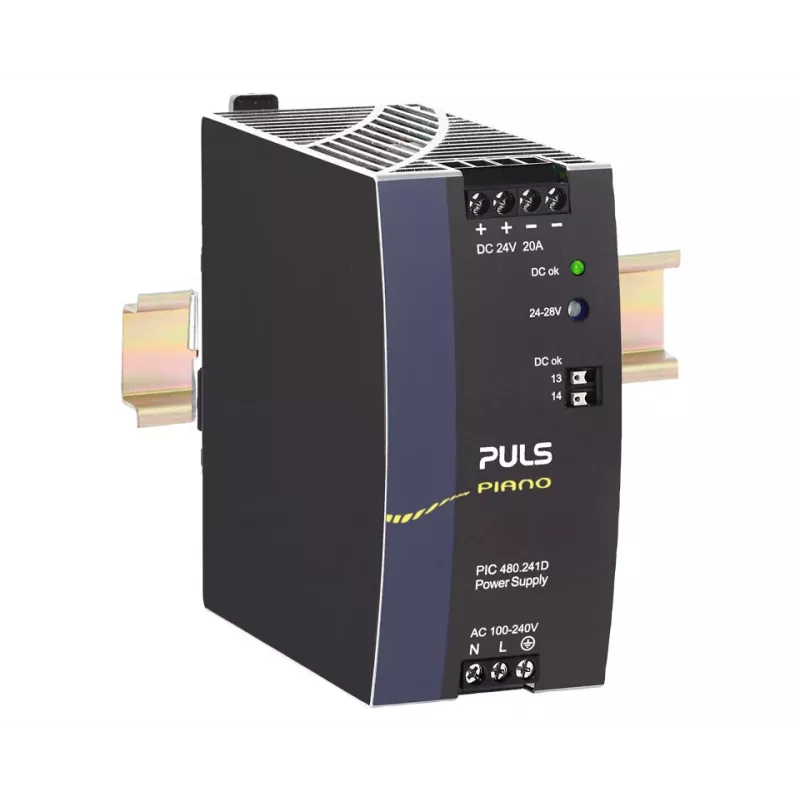

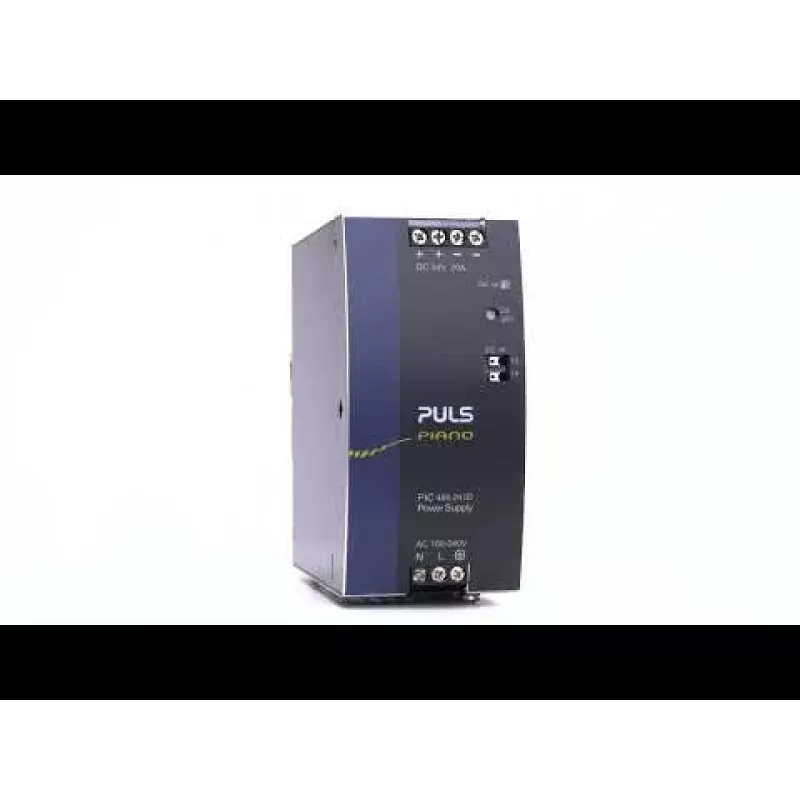

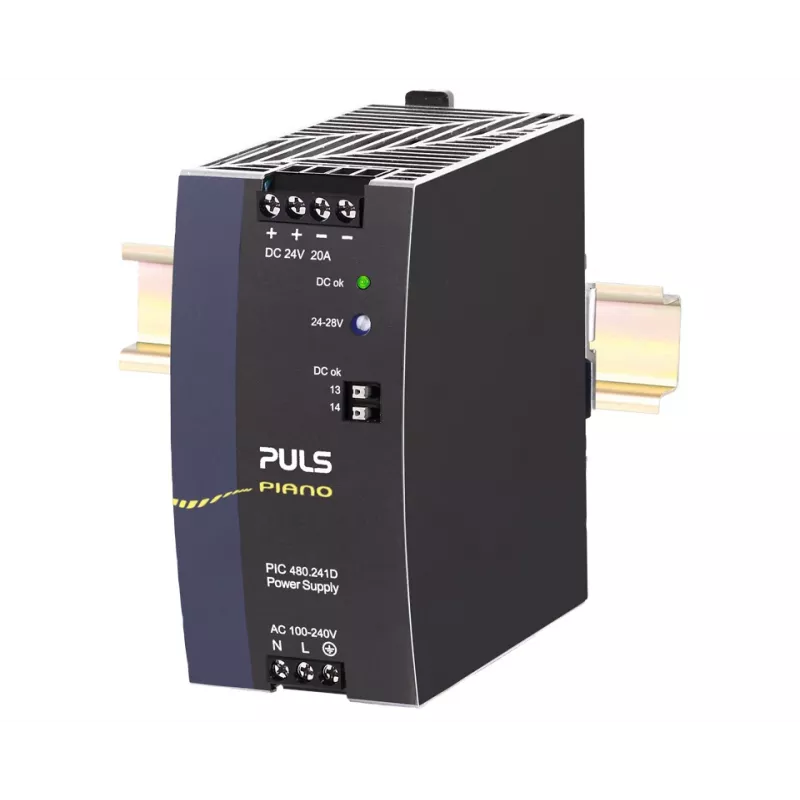

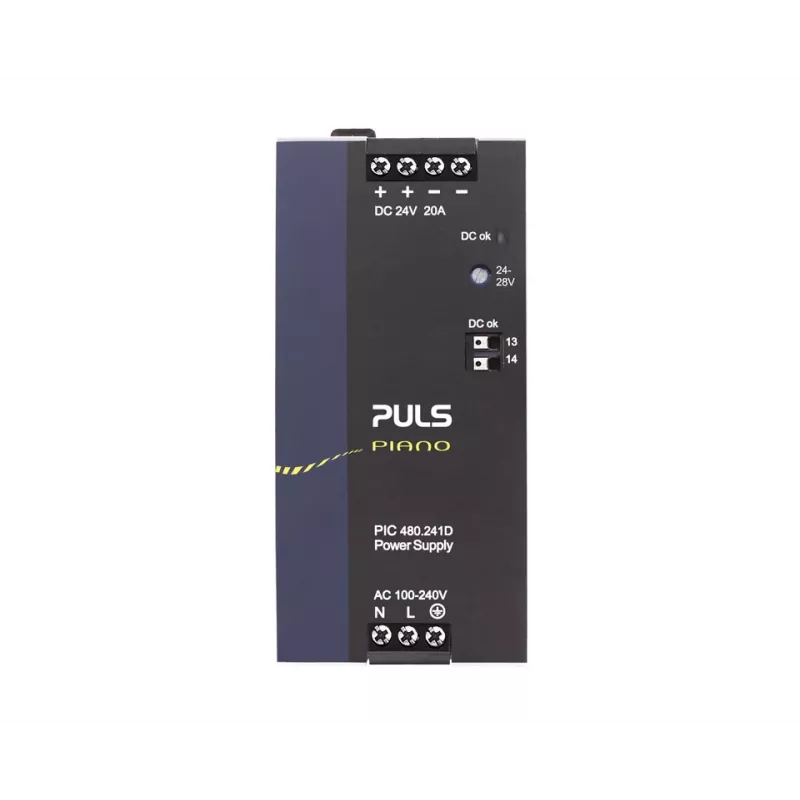

PULS PIC480.241D τροφοδοτικό ράγας DIN 24V DC 20A 480W

Industrial automation engineers and panel builders rely on the PULS PIC480.241D to deliver stable 24V DC power to PLCs, motor drives, and sensors in control cabinets. Its DIN-rail mounting and high efficiency make it a dependable choice for machinery and process control systems.

Key specifications

• Output: 24V DC, 20A, 480W
• Input: 100-240V AC (85-276V AC) or 90-300V DC
• Efficiency: 94.5% at 230V AC
• DIN-rail mount: TS35/7.5 or TS35/15
• Operating temperature: -25°C to +70°C
• Convection cooling, IP20 protection
• Overload, short-circuit, and overvoltage protection
• MTBF over 1,000,000 hours

Why choose it

The PIC480.241D combines high power density with a compact footprint, reducing cabinet space. Its wide input range and robust protection features ensure reliable operation in demanding industrial environments.

Ideal use cases

• Powering industrial control systems and PLCs
• Supplying DC power to sensors and actuators
• Building automation and HVAC control panels
• Test and measurement equipment

Good to know

This power supply meets international safety standards, including UL 60950-1, UL 508, IEC/EN 60950-1, and IEC/EN 62368-1, and complies with harmonic current emission limits per EN 61000-3-2.
