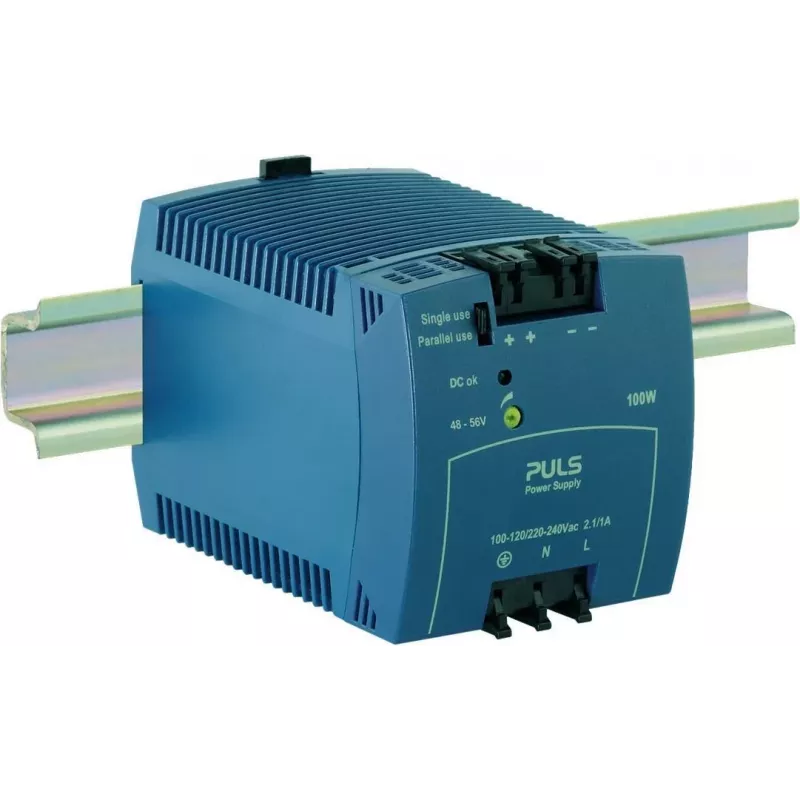

PULS MiniLine ML100.105 Τροφοδοτικό Ράγας DIN 48V DC 2,1A 100W

DIN rail power supply unit delivering a stable 48 VDC output with 2.1 A current and 100 W power. Its high efficiency of 90.5% reduces energy loss and heat generation in control cabinets.

Advantages

Compact MiniLine housing for space-saving installation on DIN rail TS35/7.5 or TS35/15. Wide AC input range 85-264 VAC and DC input 90-300 VDC ensure global compatibility. Output voltage adjustable from 48 to 55 V for voltage drop compensation. Constant current overload and short circuit protection with auto-recovery enhance system reliability. Overvoltage protection limits output to below 55 V. Low ripple and noise <50 mVpp. Hold-up time >20 ms at 230 VAC. High MTBF over 1,000,000 hours.

Suitable for

• Industrial automation and control systems
• Building automation and HVAC controls
• Telecommunication equipment
• Test and measurement instruments
• LED lighting and signage

Key specifications

• Output voltage: 48 VDC
• Output current: 2.1 A
• Output power: 100 W
• Input voltage AC: 85-264 VAC
• Input voltage DC: 90-300 VDC
• Efficiency: 90.5%
• Operating temperature: -10°C to +70°C
• Mounting: DIN rail TS35/7.5 or TS35/15
• Connection: screw terminals
• Ripple & noise: <50 mVpp
• Hold-up time: >20 ms at 230 VAC
• MTBF: >1,000,000 hours
• Output voltage adjustment: 48-55 V

Recommendations

Select this power supply for reliable 48 VDC power in industrial environments where DIN rail mounting and high efficiency are required.
