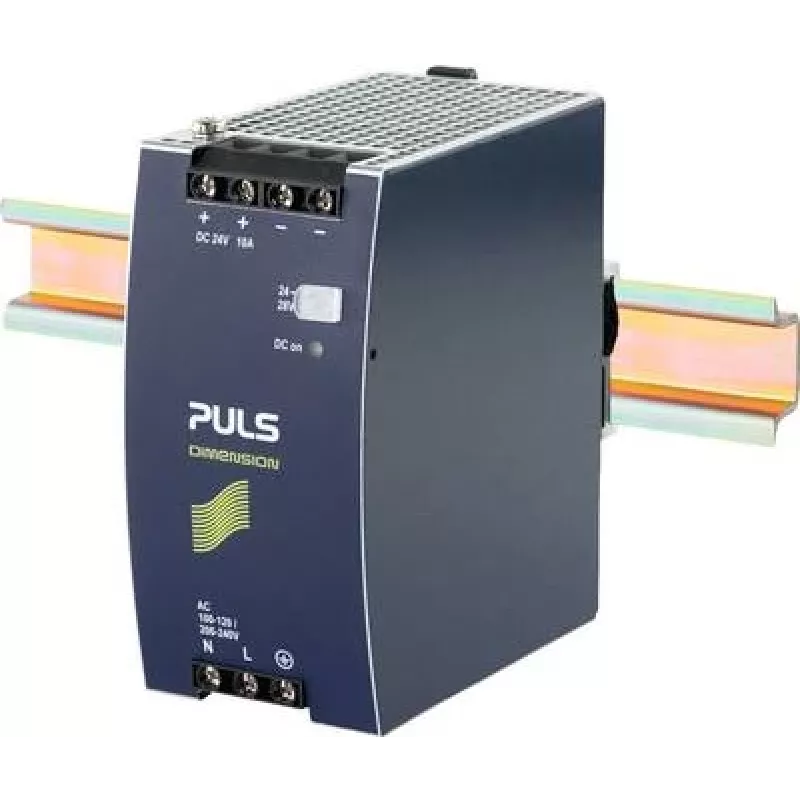

PULS CS10.242 τροφοδοτικό ράγας DIN 24 V 10 A 240 W 1 έξοδος

DIN rail power supply unit delivering 24 VDC at 10 A with 240 W output power from a single output. The CS10.242 accepts a wide-range AC input of 100-240 VAC (45-66 Hz) or DC input of 110-150 VDC, with active power factor correction and efficiency above 94%. It mounts on standard DIN rail (TS35/7.5 or TS35/15) and operates from -25 to +70 °C.

Advantages

High efficiency reduces energy consumption and heat generation. Active PFC ensures compliance with power quality standards. Wide operating temperature range allows use in demanding industrial environments. Screw terminal connections provide secure wiring.

Suitable for

• Industrial automation systems
• Control cabinets
• Machine building
• Process control

Key specifications

• Output: 24 VDC, 10 A, 240 W
• Input: 100-240 VAC or 110-150 VDC
• Efficiency: >94%
• Ripple & noise: <50 mVpp
• Hold-up time: >20 ms at 230 VAC full load
• Output voltage adjustment: 24-28 VDC
• MTBF: >1,000,000 hours
• Protection: overload, short circuit, overvoltage, overtemperature

Recommendations

For reliable 24 VDC power in industrial applications, the PULS CS10.242 offers high efficiency and robust protection features in a compact DIN rail mount design.
