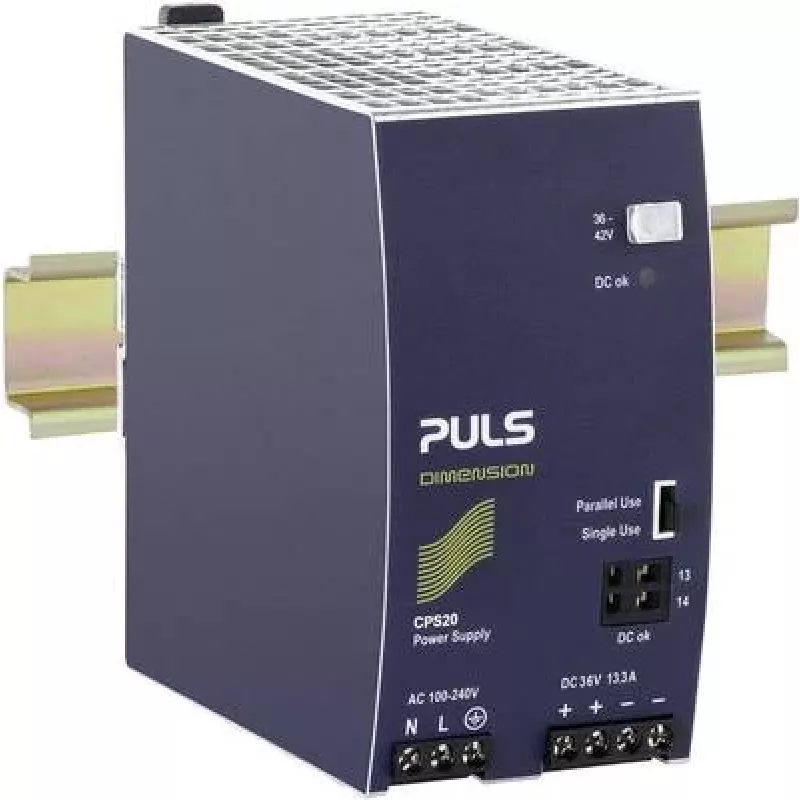

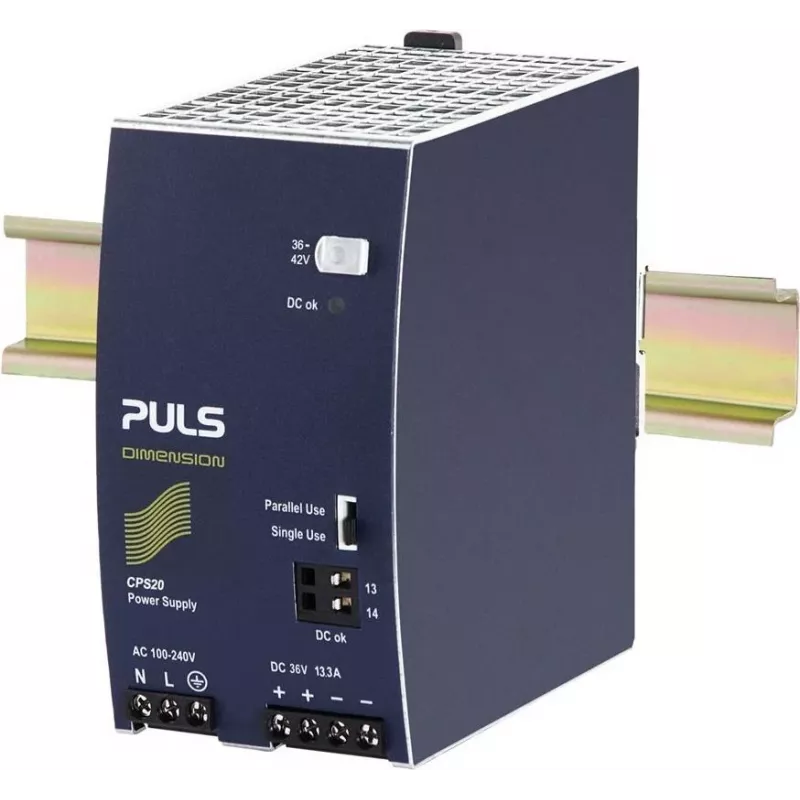

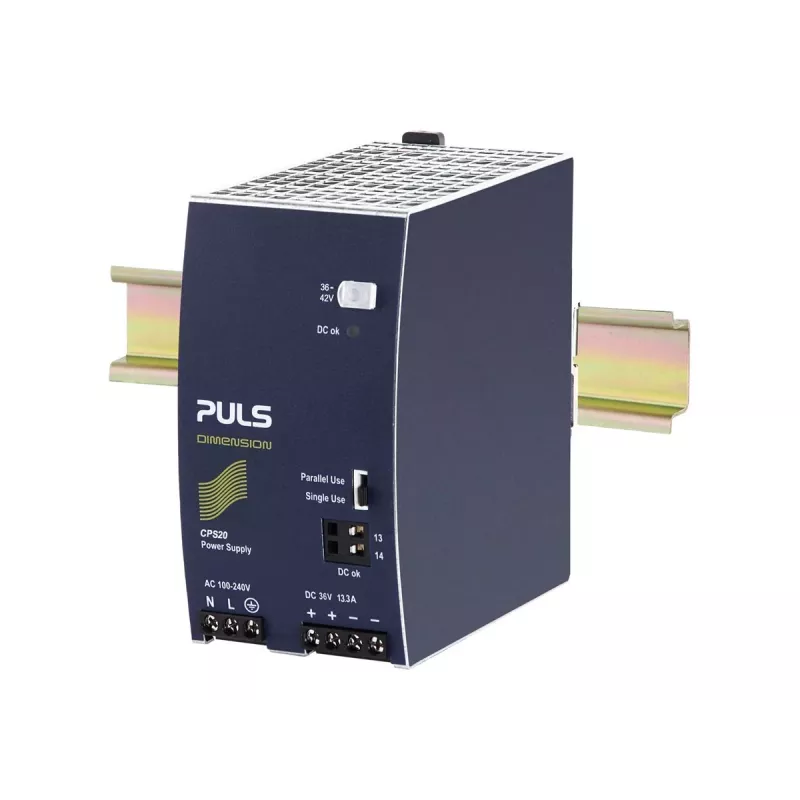

PULS CPS20.361 τροφοδοτικό ράγας DIN 36V DC 13,3A 576W

The PULS CPS20.361 delivers 576 W of output power from a compact DIN-rail housing, achieving up to 94.5% efficiency. This single-phase unit converts 100–240 VAC input to a regulated 36 VDC output at 13.3 A, with convection cooling and a hold-up time exceeding 20 ms at 230 VAC.

Overview

Part of the DIMENSION CPS20 series, the CPS20.361 is engineered for industrial control panels and machine builders. It mounts on standard TS35/7.5 or TS35/15 DIN rails and operates across a wide temperature range from -25 to +70 °C. The output is protected against overload and short circuit by constant current limiting, and ripple and noise are kept below 50 mVpp.

What stands out

• High efficiency up to 94.5% reduces heat and energy costs
• Wide operating temperature range: -25 to +70 °C
• Convection cooling – no fan, silent operation
• Constant current overload and short-circuit protection
• Hold-up time >20 ms at 230 VAC for reliable ride-through

Technical details

• Input voltage: 100–240 VAC, single phase
• Input frequency: 50–60 Hz
• Output voltage: 36 VDC
• Output current: 13.3 A
• Output power: 576 W
• Ripple & noise: <50 mVpp
• Mounting: DIN-rail TS35/7.5 or TS35/15
• Protection class: IP20
• Approvals: UL 60950-1, UL 508, IEC/EN 60950-1, CB Scheme, CE, RoHS, REACH

Our verdict

The CPS20.361 combines high power density with excellent efficiency and a robust feature set, making it a dependable choice for demanding 36 VDC applications.
