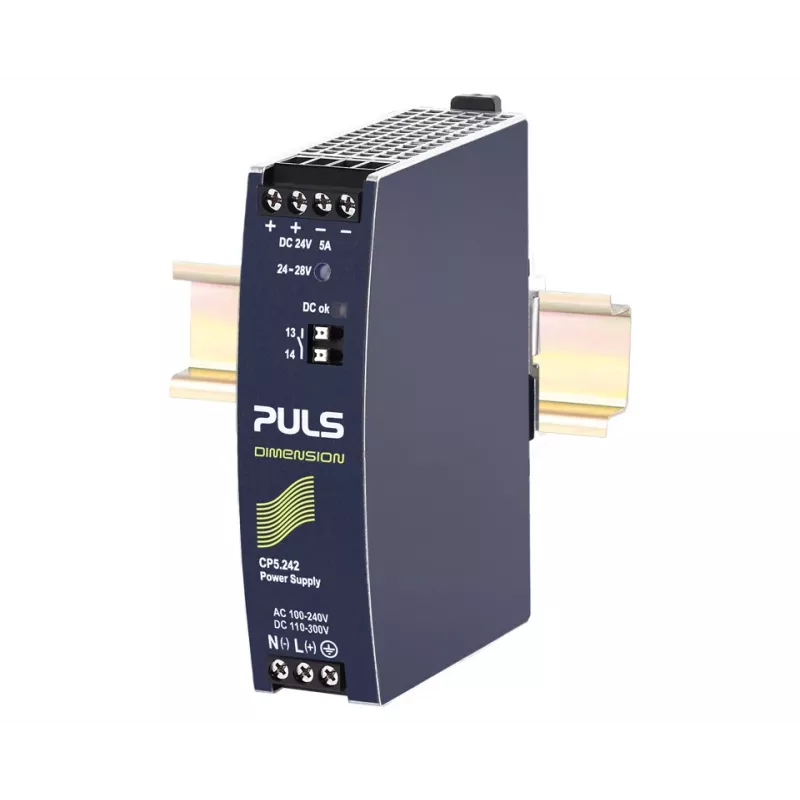

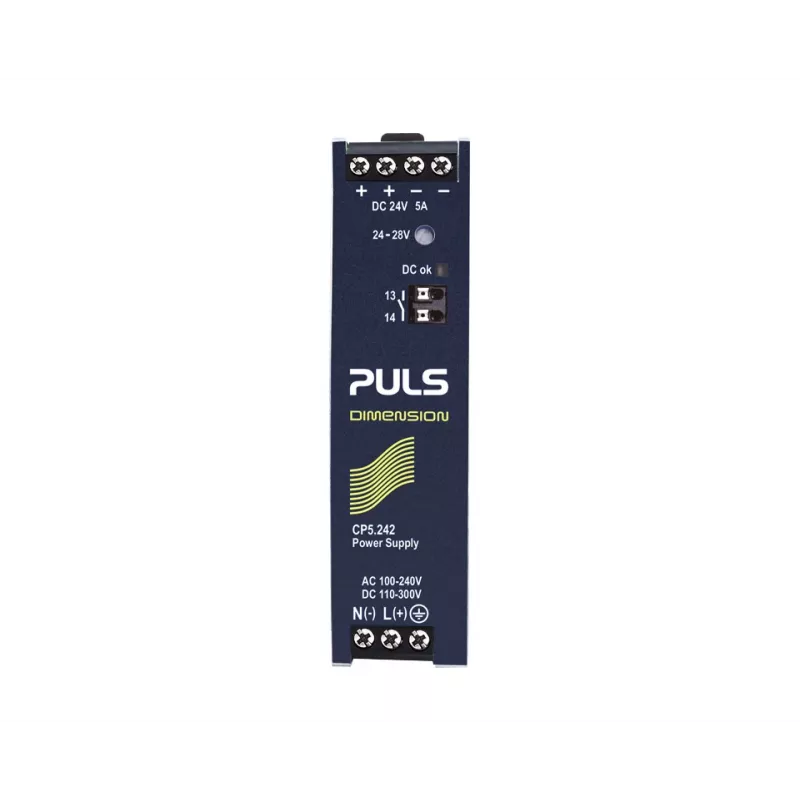

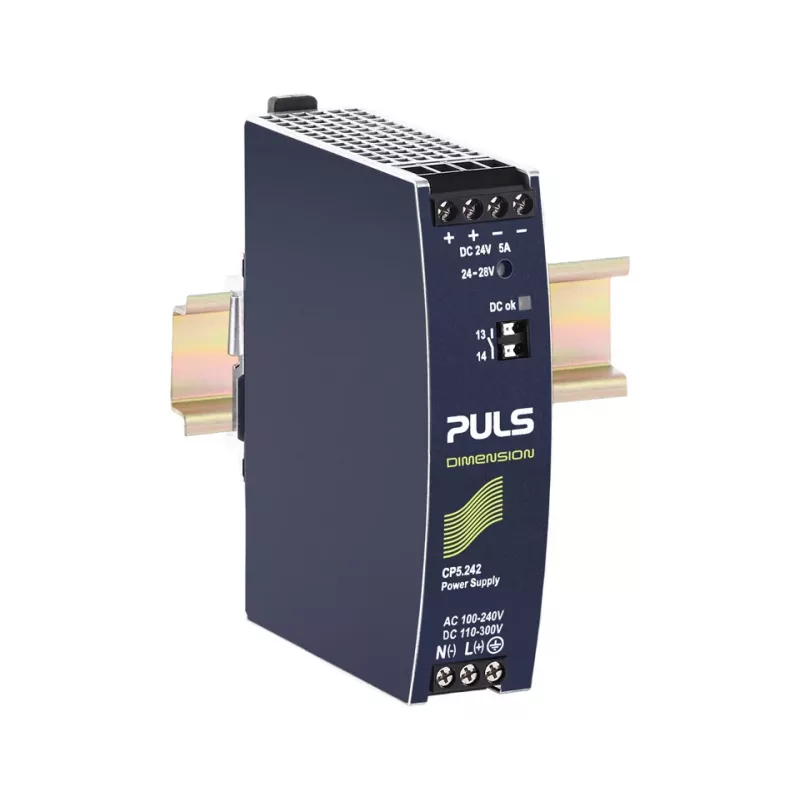

PULS CP5.242 τροφοδοτικό ράγας DIN 24V DC 120W

The PULS CP5.242 is a DIN rail power supply unit delivering 24 V DC at 5 A with a total output power of 120 W. Its high efficiency of over 90.5% reduces energy loss and heat generation, making it suitable for demanding industrial applications.

Advantages

This power supply offers a wide input voltage range of 100 - 240 V AC (auto-ranging) and 110 - 150 V DC, ensuring compatibility with various power networks. The output voltage is adjustable from 24 to 28 V DC, providing flexibility for different loads. The unit is designed for DIN rail mounting on TS35/7.5 or TS35/15 rails, simplifying installation in control cabinets.

Suitable for

• Industrial automation systems
• Control cabinets
• Machinery requiring reliable 24V DC power

Key specifications

• Output voltage: 24 V DC (adjustable 24 - 28 V DC)
• Output current: 5 A
• Output power: 120 W
• Input voltage: 100 - 240 V AC or 110 - 150 V DC
• Efficiency: >90.5%
• Operating temperature: -25 to +70 °C
• Protection: overload, short-circuit, over-voltage, over-temperature
• Connection: screw terminals
• Ripple & noise: <50 mVpp
• Hold-up time: >20 ms (at 115V AC, 120W)
• MTBF: >1,000,000 h (IEC 61709)
• Degree of protection: IP20
• Input frequency: 50 - 60 Hz
• Certifications: UL, cUL, TUV, CB Scheme, CE, RoHS, REACH

Recommendations

For reliable 24V DC power in industrial environments, the PULS CP5.242 offers high efficiency, robust protection features, and flexible mounting options. Its wide temperature range and high MTBF make it a dependable choice for critical applications.
