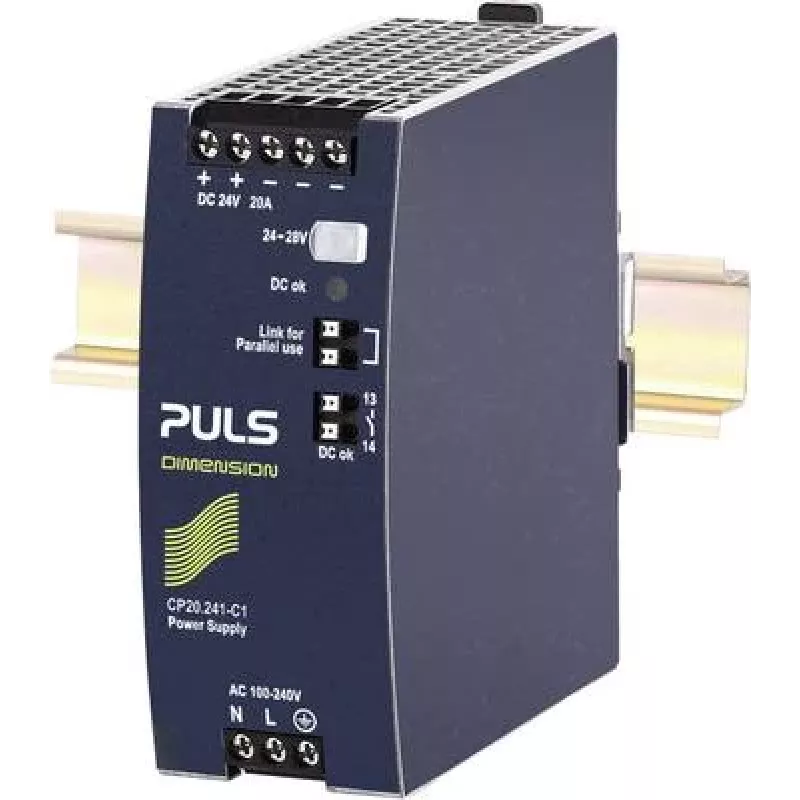

PULS CP20.241-C1 τροφοδοτικό ράγας DIN 480 W 24 VDC 20 A

The PULS CP20.241-C1 stands out with its 95.6% efficiency and active power factor correction, delivering stable 24 VDC output with minimal energy loss. It is built for demanding industrial applications where reliability and compactness are critical.

Highlights

• 480 W output power with 20 A current
• Wide input range: 100-240 VAC or 110-150 VDC
• Active PFC and high efficiency up to 95.6%
• Adjustable output voltage from 24 to 28 VDC
• Parallel operation capability for up to 5 units
• Robust protection: overload, short-circuit, over-voltage, over-temperature
• DIN rail mounting on TS35/7.5 or TS35/15
• Operating temperature range: -25°C to +70°C

In daily use

This power supply ensures a clean and stable 24 VDC output with low ripple (<50 mVpp) and a hold-up time of more than 20 ms, making it suitable for sensitive industrial controls and automation systems. The screw terminals provide secure connections, and the compact design saves space on the DIN rail.

Full specifications

• Output voltage: 24 VDC (adjustable 24-28 VDC)
• Output current: 20 A
• Output power: 480 W
• Input voltage: 100-240 VAC, 110-150 VDC
• Efficiency: 95.6%
• Input frequency: 50/60 Hz
• Power factor correction: Active
• Hold-up time: >20 ms
• Ripple and noise: <50 mVpp
• Terminal type: Screw terminals
• Parallel operation: Yes, up to 5 units
• MTBF: >900,000 hours (SN 29500, 40°C)
• Protection: Overload, short-circuit, over-voltage, over-temperature

Final note

The CP20.241-C1 combines high efficiency, active PFC, and flexible mounting options, making it a reliable choice for industrial power distribution.
