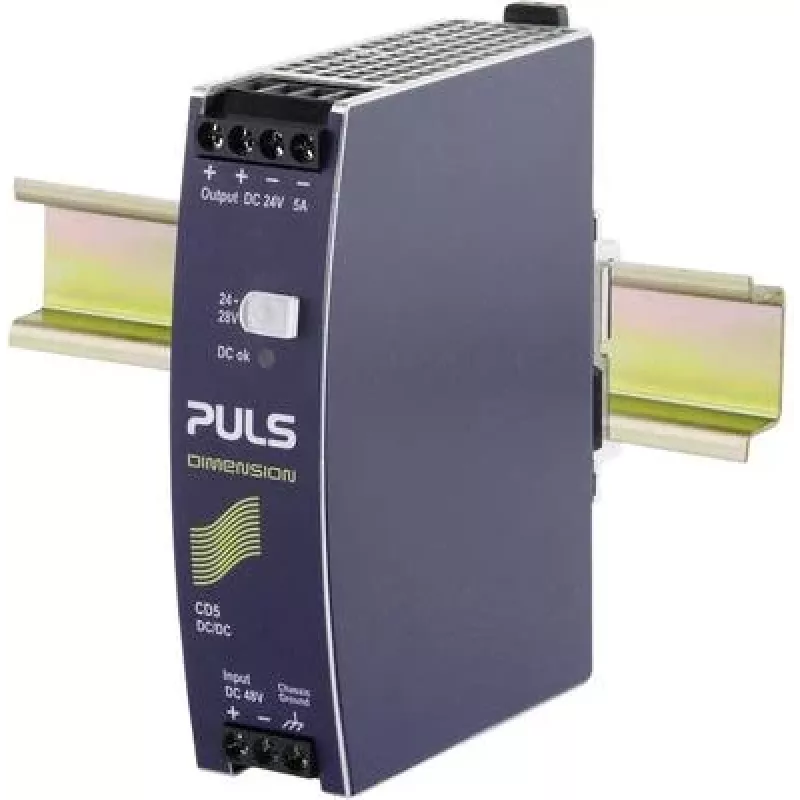

PULS CD5.242 μετατροπέας DC/DC 24V/2,1A 50W ράγα DIN

Industrial control systems often face unstable DC input voltages that can damage sensitive equipment or cause downtime. The PULS CD5.242 DC/DC converter solves this problem by converting a fluctuating 18-32 VDC input into a stable, regulated 24 VDC output, ensuring reliable operation of connected devices.

Who is it for

This converter is ideal for system integrators, panel builders, and maintenance engineers who need a compact, efficient power conversion solution for DIN-rail mounted applications in industrial environments.

Main features

• Converts 18-32 VDC input to regulated 24 VDC output
• Provides up to 2.1 A output current (50 W power)
• High efficiency of 93.5% reduces energy loss and heat generation
• DIN-rail mounting for easy installation in control cabinets
• Convection cooling for silent, maintenance-free operation
• Protection against overload, short-circuit, over-voltage, and over-temperature

Specifications

• Input voltage range: 18-32 VDC
• Nominal input voltage: 24 VDC
• Output voltage: 24 VDC
• Output current: 2.1 A
• Output power: 50 W
• Efficiency: 93.5%
• Operating temperature: -25 to +70 °C
• Ripple and noise: <50 mVpp
• Isolation voltage (input to output): 2.5 kV
• MTBF: >1,000,000 hours

Tips

Ensure adequate ventilation around the unit to maintain optimal performance. Use appropriate wire sizes for the screw terminals to handle the maximum input current of 2.6 A.
