Προσαρμογέας βίντεο Lenovo 0A36536

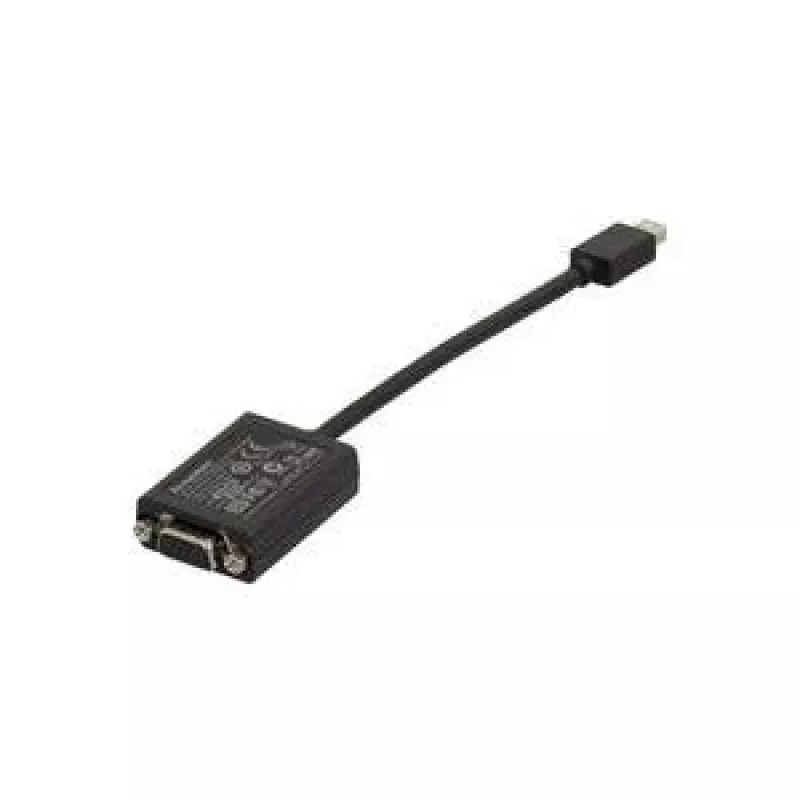

The Lenovo 0A36536 video cable adapter converts a Mini DisplayPort output to a VGA (D-Sub) input, enabling connection between computers with a Mini DisplayPort or Thunderbolt-compatible port and analog VGA monitors or projectors. The compact black adapter weighs 0.15 kg and has a cable length of approximately 200 mm, providing a practical solution for extending or mirroring displays in conference rooms, classrooms and workstations that use VGA equipment.

Advantages

This Mini DisplayPort to VGA adapter is standards compliant with DisplayPort and is forward compatible with Thunderbolt, ensuring broad device interoperability. It supports common VGA resolutions up to 1920 x 1200 @ 60 Hz (reduced blanking) and allows extended or mirrored display modes. Its compact, color-coordinated black design integrates with Lenovo ThinkPad systems and is lightweight for easy transport and setup.

Suitable for

• Connecting laptops or desktops with Mini DisplayPort/Thunderbolt to VGA projectors
• Using VGA external monitors for extended desktop or mirrored presentations
• Presentations in meeting rooms, classrooms or client sites with legacy VGA displays

Key specifications

• Brand: Lenovo
• Model / MPN: 03X6865
• EAN: 5711783362302
• Input connector: Mini DisplayPort
• Output connector: VGA (D-Sub)
• Supported resolution: up to 1920 x 1200 @ 60 Hz (reduced blanking)
• Color: Black
• Weight: 0.15 kg
• Cable length (approx.): 200 mm

How to use

Connect the Mini DisplayPort end of the adapter to the Mini DisplayPort or Thunderbolt port on your laptop or desktop. Plug the VGA cable from the monitor or projector into the VGA (D-Sub) connector on the adapter and secure the connector screws if applicable. Configure the display settings on your operating system to select mirrored or extended mode and choose the appropriate resolution and refresh rate supported by the VGA display.

Recommendations

For reliable image quality, use a VGA cable of good condition and select a resolution supported by the projector or monitor (up to 1920 x 1200 @ 60 Hz with reduced blanking). Keep firmware and graphics drivers on your computer up to date to ensure compatibility with Mini DisplayPort and Thunderbolt outputs.
