Προσαρμογέας VESA Neomounts FPMA-VESA800 27-60 inch

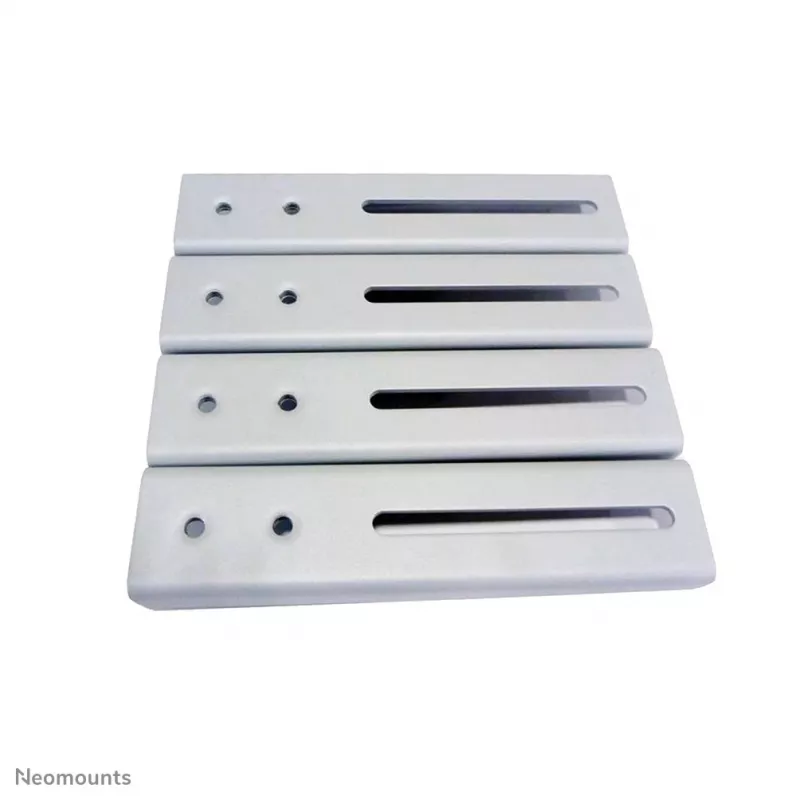

The Neomounts VESA adapter plate FPMA-VESA800 enables a VESA mount with a 600x450 interface to be used with displays that have an 800x450 mm VESA hole pattern. Designed for use with PLASMA-M1200 and PLASMA-M1800E mounting systems, this steel adapter supports screens up to 60" (150 cm) and a maximum weight of 50 kg per screen. The plate has a slim depth of 4 mm, a silver finish and includes all necessary installation hardware.

Advantages

This adapter provides compatibility between different VESA patterns without altering the original mount, while its thin 4 mm profile keeps the display close to the mount. Constructed from steel with a silver finish and a total product weight of 1.54 kg, the FPMA-VESA800 is compact and straightforward to install. All required installation materials are supplied in the package.

Suitable for (tasks / use cases)

• Mounting a single screen with VESA 800x450 mm to a mount with 600x450 interface
• Use with PLASMA-M1200 and PLASMA-M1800E mounting systems
• Displays up to 60" (150 cm) and up to 50 kg

Key specifications

• Manufacturer: Neomounts
• Model: FPMA-VESA800
• Compatible VESA pattern: 800x450 mm
• Target mount interface: 600x450 mm
• Maximum screen size: 60" (150 cm)
• Maximum weight capacity: 50 kg
• Material: Steel
• Colour: Silver
• Depth: 4 mm
• Product weight: 1.54 kg
• Included: Installation material

How to use

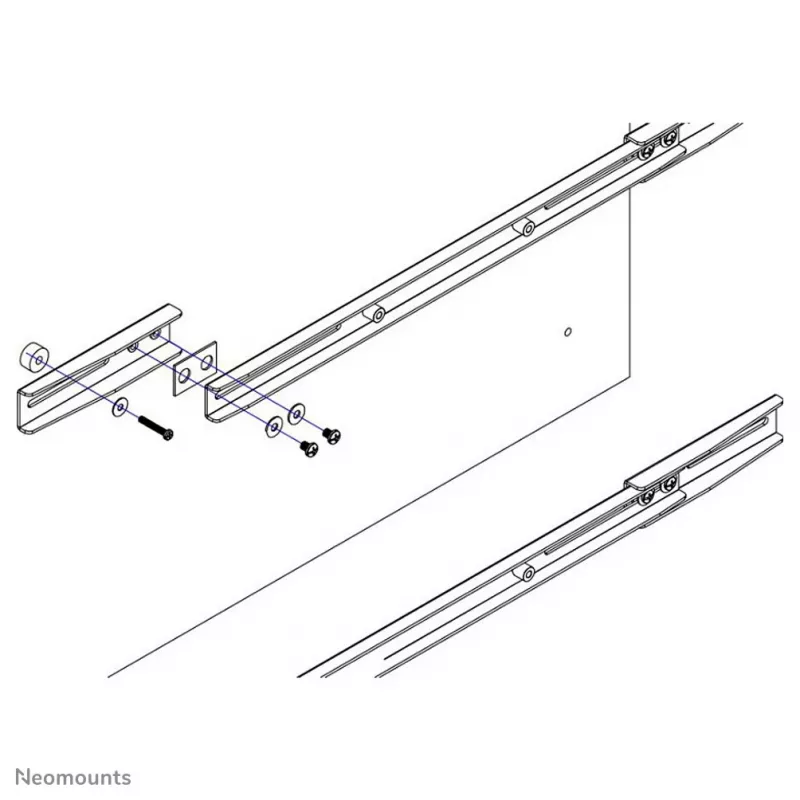

Attach the FPMA-VESA800 adapter to the display by aligning the adapter holes with the display's 800x450 mm VESA pattern and secure with the supplied fasteners. Then attach the adapter (now mounted to the screen) to the target mount that uses a 600x450 interface. Follow the torque and safety guidelines of the display and mount manufacturers when tightening fasteners. Verify that the installed screen does not exceed 50 kg and is level and secure before releasing support.

Recommendations

Use the FPMA-VESA800 only with compatible PLASMA-M1200 or PLASMA-M1800E systems and displays that match the 800x450 mm VESA pattern. Do not exceed the 50 kg weight limit and check that all fasteners are properly tightened and periodically inspected.
