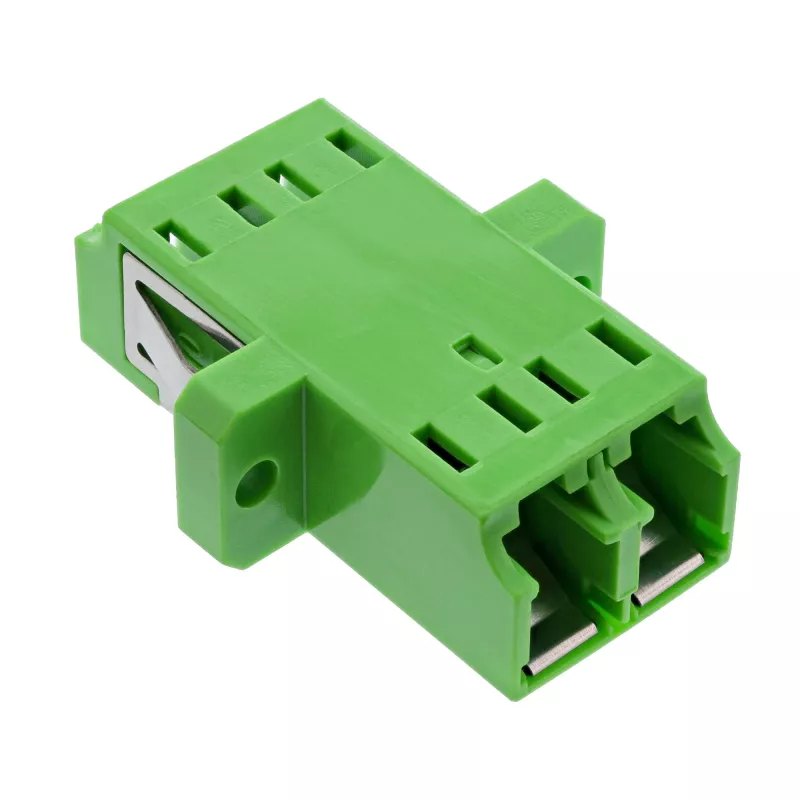

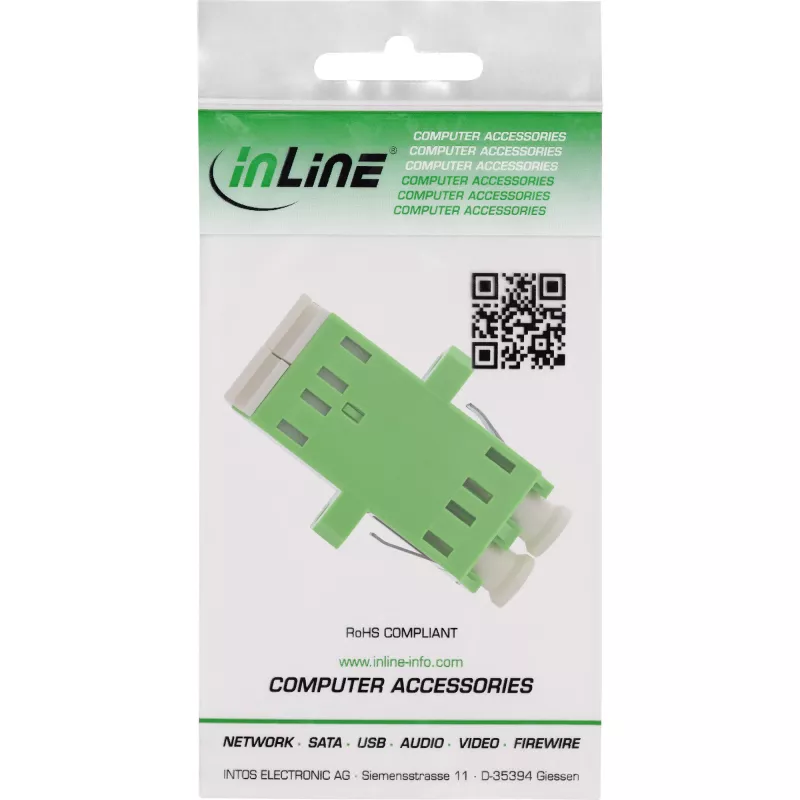

Προσαρμογέας οπτικής ίνας InLine 89989R Duplex LC/LC SM υποδοχή/υποδοχή πράσινο

Duplex LC/LC coupler for fixed front panel mounting– ideal for installation in SC simplex cut-outs
Single-mode compatible with ceramic sleeves– for precise alignment and minimal attenuation
Integrated laser protection– ensures additional security in network operation
Metal bracket and flame-retardant UL 94V0 enclosure– for professional environments
Includes dust cover– protects the connections when not in use

The InLine® fiber optic coupler in the built-in version enables a reliable and permanent connection of two LC/LC single-mode fiber optic cables directly in SC simplex-compatible front panels. It has been specially developed for professional applications in data centers, industrial plants and telecommunications environments.
The precise ceramic sleeve minimizes loss of attenuation and ensures accurate fibre routing. The robust metal holder provides a stable hold, even with frequent use or vibration. The housing complies with the UL 94V0 fire protection standard and is therefore also suitable for safety-relevant environments. An integrated laser protection cover and the supplied dust protection cap offer additional protection for technology and personnel.
Additional technical specifications:

Type: Duplex LC/LC coupling
Mode: Singlemode
Installation type: For mounting in front panels (SC simplex cut-out)
Color: Green
Laser protection: Internal
Features: PC acc. to UL 94V0
Socket: Ceramic
Holder: metal
Included: White dust cap

InLine Fiber Optical Adapter Duplex LC/LC SM Ceramic Sleeve green with flange. Connector type: LC, Product colour: Green, Fiber mode structure: Single-mode. Width: 15 mm, Depth: 30 mm, Height: 10 mm. Package width: 70 mm, Package depth: 120 mm, Package height: 10 mm. Country of origin: Germany

How to use

Align the LC connectors of the single-mode patch cords with the adapter ports and insert them until they click into place. Ensure connectors are clean before mating to avoid contamination and increased loss. To disconnect, depress the LC connector latch and gently pull the connector out. Use appropriate fibre cleaning tools and procedures when installing or reconfiguring links.

Recommendations

For optimal performance, clean all fibre endfaces with a lint-free wipe and fibre-safe cleaner before connection, avoid excessive bending of single-mode fibres near the adapter, and secure cabling to prevent mechanical strain on the adapter and connectors.
