Προσαρμογέας καλωδίου Parallel DB25 DeLOCK 66267

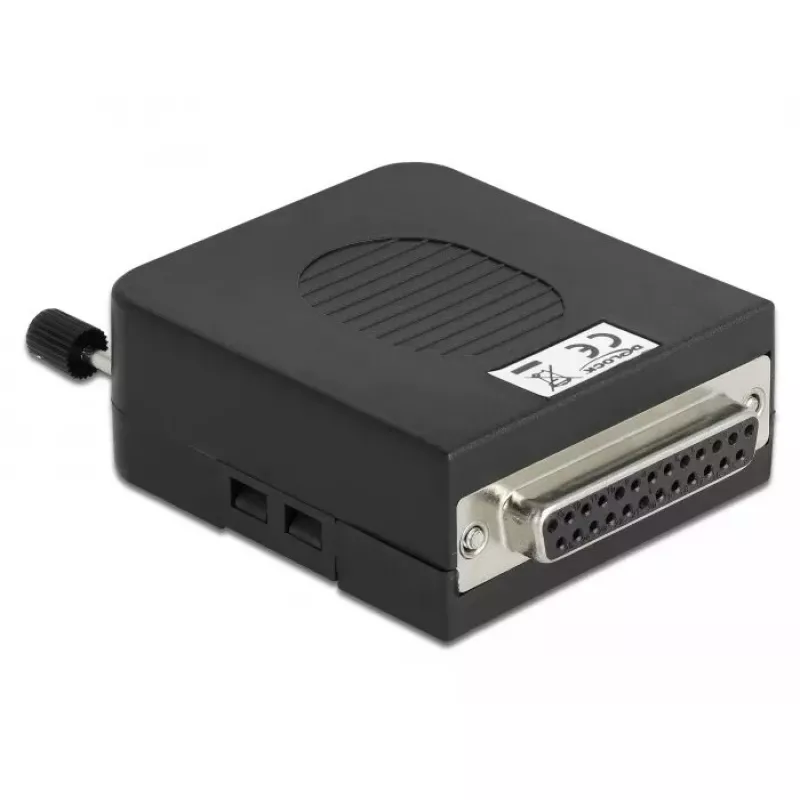

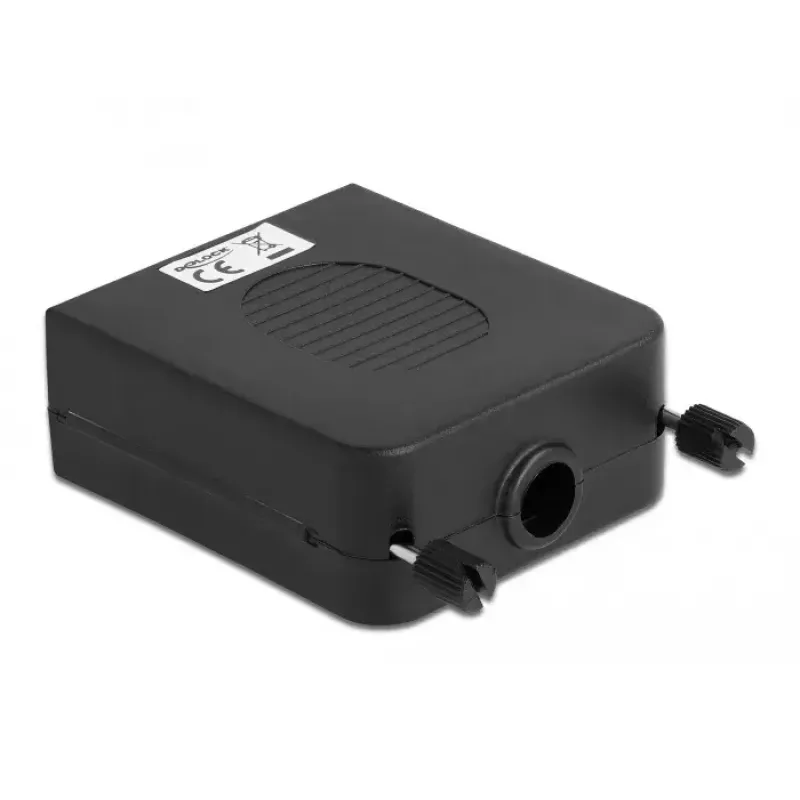

The DeLOCK 66267 wire connector adapts a Parallel DB25 connector to a 26‑pin terminal block, allowing direct connection of bare wires. The compact black enclosure protects the printed circuit board and provides integrated strain relief to secure the cable. The adapter supports AWG 26–18 conductors and is suitable for both industrial and hobby applications such as railway modelling.

Advantages

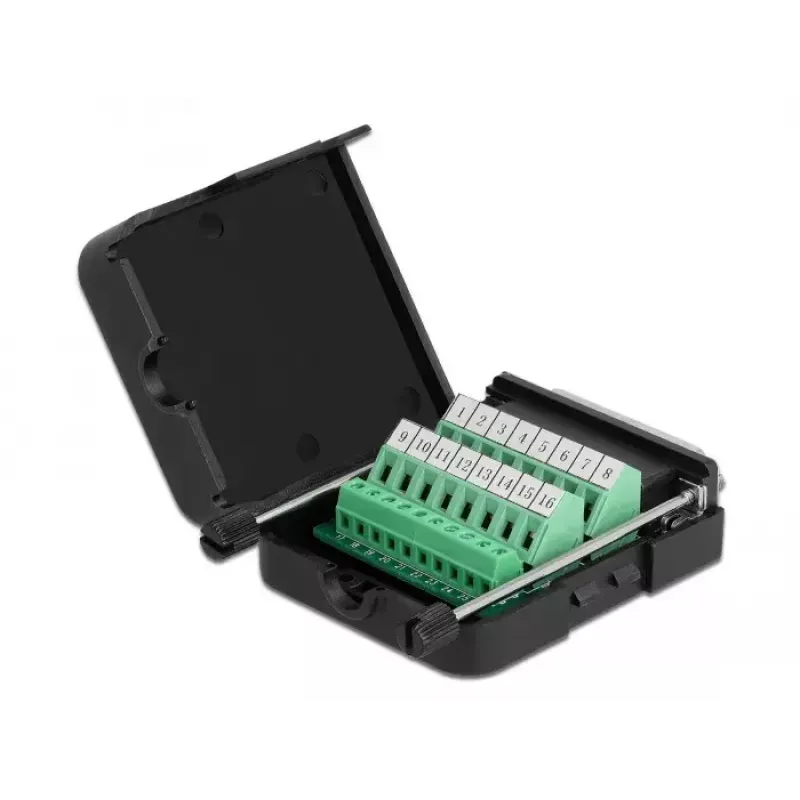

The plastic housing shields the PCB from dust and mechanical damage while keeping the unit lightweight. Built‑in strain relief fixes the cable inside the enclosure to reduce stress on solder joints and terminals. The terminal block accepts a range of wire gauges (AWG 26–18), making the connector flexible for multiple wiring scenarios.

Suitable for

• Connecting bare wires to Parallel DB25 interfaces
• Industrial control and signal wiring
• Hobby electronics and railway modelling
• Prototyping and testing setups

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 66267
• EAN: 4043619662678
• Interface: Parallel DB25 to 26‑pin terminal block
• Supported wire gauge: AWG 26–18
• Colour: Black
• Dimensions (W x D x H): 56.4 mm x 64.8 mm x 25 mm
• Packaging: 1 piece, polybag

How to use

Strip the insulation from the wire ends to the appropriate length for the terminal block. Insert each bare conductor into the corresponding terminal and secure it according to the terminal block's retention method (screw/clamp). Connect the Parallel DB25 plug to the mating DB25 socket on your device. Ensure the cable is seated in the integrated strain relief and tighten any strain relief screws or clamps to prevent movement.

Recommendations

Use AWG 26–18 wires only and verify polarity and pin mapping before powering the system. Route cables to minimise mechanical stress and avoid exposure to liquids or excessive heat. For permanent installations, periodically check terminals and strain relief for secure connections.
