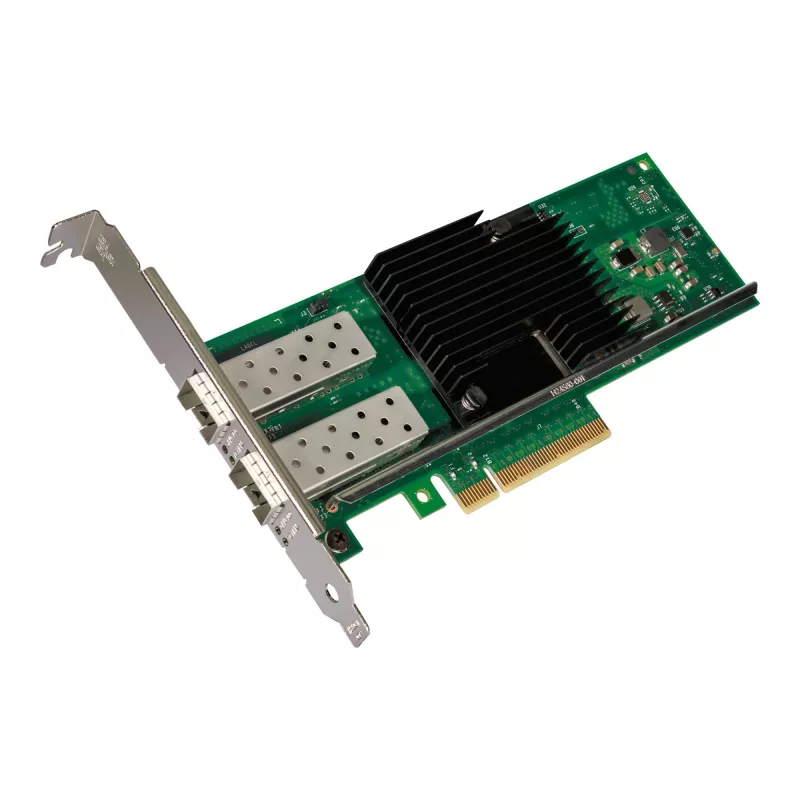

Προσαρμογέας δικτύου INTEL X710-DA2 PCIe 3.0 x8 Low Profile 10Gb SFP+

The INTEL X710-DA2 PCIe 3.0 x8 Low Profile 10Gb SFP+ network adapter provides two 10 Gigabit SFP+ ports in a compact low-profile form factor suitable for servers and workstations. Designed to operate in PCIe 3.0 x8 slots, this adapter delivers high-throughput, low-latency 10Gb Ethernet connectivity for demanding network environments. The card supports features commonly required in virtualized and storage-heavy deployments, enabling reliable high-bandwidth links and efficient packet processing.

Advantages

This network adapter offers dual 10Gb SFP+ ports for flexible fiber or direct-attach cabling and supports PCIe 3.0 x8 bandwidth for consistent data transfer rates. Its low-profile bracket allows installation in compact chassis, while hardware capabilities reduce CPU overhead for improved overall system performance. The design focuses on stable link performance, compatibility with common server platforms, and suitability for continuous operation in data center and enterprise settings.

Suitable for

• Virtualization hosts and hyperconverged infrastructure
• Storage networking and iSCSI or NAS traffic
• High-bandwidth applications such as backup and replication
• High-performance workstations and compact servers
• Aggregation and uplink ports in access or distribution switches

Key specifications

• Interface: PCI Express 3.0 x8
• Ports: 2 × 10Gb SFP+ ports
• Data rate: 10 Gigabit Ethernet per port
• Form factor: Low-profile bracket compatible with compact chassis
• Latency: Low-latency hardware design suitable for high-throughput workloads
• Power: Typical server-class adapter power consumption (depends on system configuration)

How to use

Install the adapter into an available PCIe 3.0 x8 (or higher) slot on a powered-off system following the server or workstation manufacturer’s procedures. Secure the low-profile bracket and connect compatible SFP+ modules or direct-attach copper cables to the SFP+ ports. Power on the system and install or update the appropriate Intel network drivers and firmware as recommended by the system vendor to enable full functionality and performance tuning options. Configure network settings in the operating system or hypervisor to assign IP addresses, enable link aggregation, or adjust offload features as required by your environment.

Recommendations

Use certified SFP+ modules or cables that match your network media and distance requirements. Verify driver and firmware compatibility with your operating system and hypervisor before deployment. For optimal performance in virtualized or storage environments, enable recommended offload and interrupt moderation settings and monitor link health and throughput after installation.
