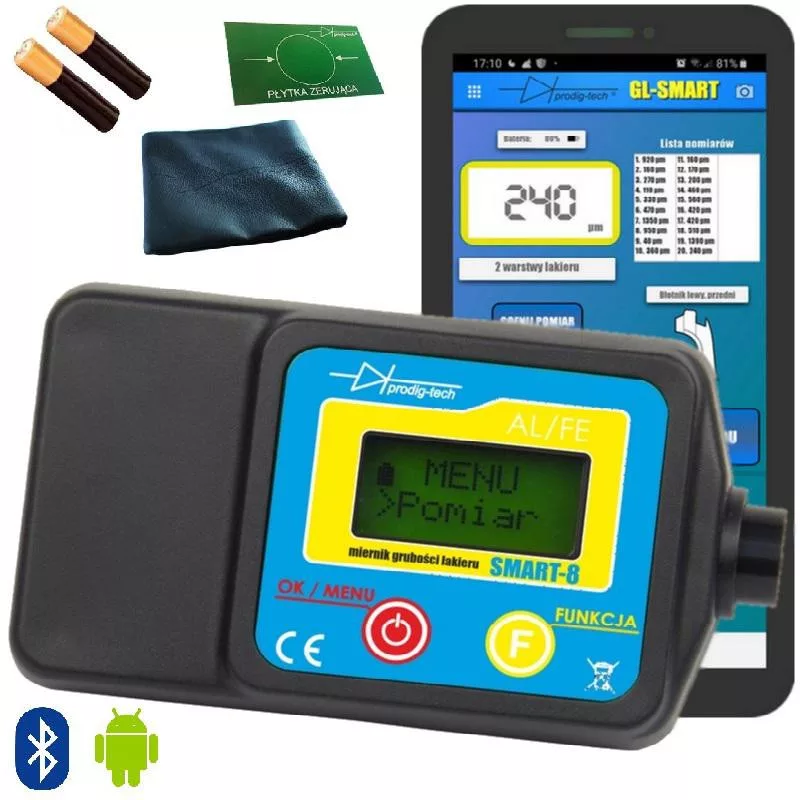

PRODIG-TECH GL-SMART-8 Μετρητής Πάχους Βαφής

The PRODIG-TECH GL-SMART-8 is a professional paint thickness gauge designed for precise measurement of coating thickness on ferrous and non-ferrous substrates. With a measurement range of 0 to 2000 µm and automatic substrate detection, it is ideal for automotive, industrial, and quality control applications.

Advantages

High accuracy of ±(10 µm + 3% of reading), fast measurement speed up to 4 readings per second, and a backlit LCD display for easy reading in low light. The integrated LED flashlight illuminates the measurement area, and the spring-loaded probe ensures consistent pressure for reliable results.

Suitable for

• Automotive paint inspection
• Industrial coating thickness measurement
• Quality control and assurance
• Marine and aerospace applications

Key specifications

• Measurement Range: 0–2000 µm
• Resolution: 1 µm (0–500 µm), 10 µm (500–2000 µm)
• Accuracy: ±(10 µm + 3% of reading)
• Substrates: Steel (Fe), Galvanized Steel (FeZn), Aluminum (Al)
• Automatic Substrate Detection: Yes (Fe/Al)
• Probe: Integrated, spherical, spring-loaded
• Display: Backlit LCD
• Measurement Modes: Single, Continuous
• Memory: 30 measurements
• Units: µm, Mils
• Power: 2x AAA batteries (not included)
• Auto Shutdown: After 2 minutes
• Operating Temperature: -20°C to +40°C
• Sound Signaling: Yes
• Calibration: Automatic, Manual (Zeroing)
• LED Flashlight: Yes
• Minimum Measurement Area: 15 x 15 mm
• Minimum Substrate Thickness: 0.5 mm

Recommendations

For best results, calibrate the gauge before each use and ensure the substrate is clean and dry. Store in a cool, dry place when not in use.
