Πρίζα USB Vision TC3 USBB

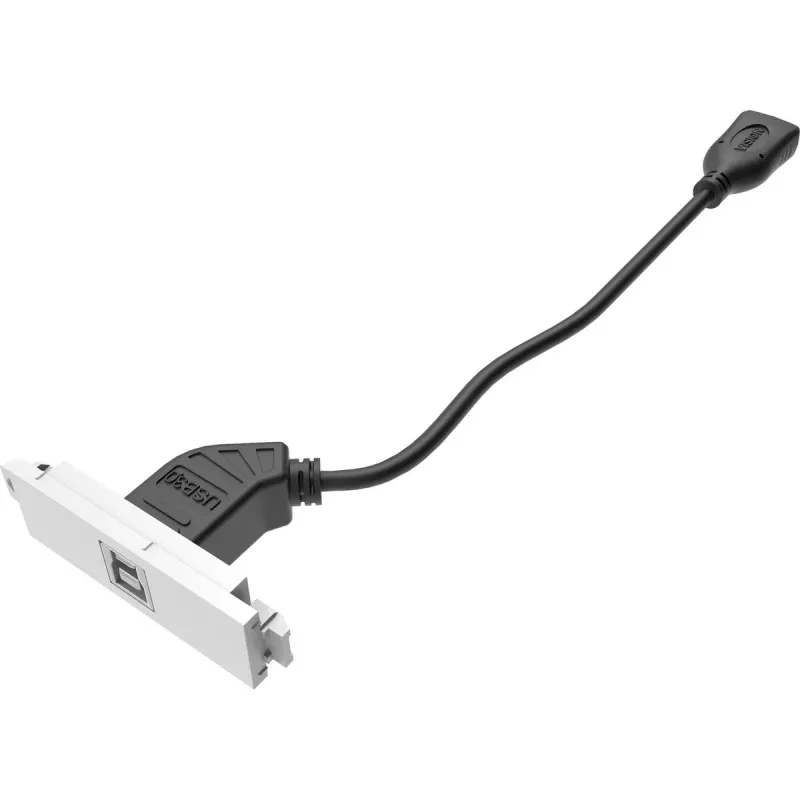

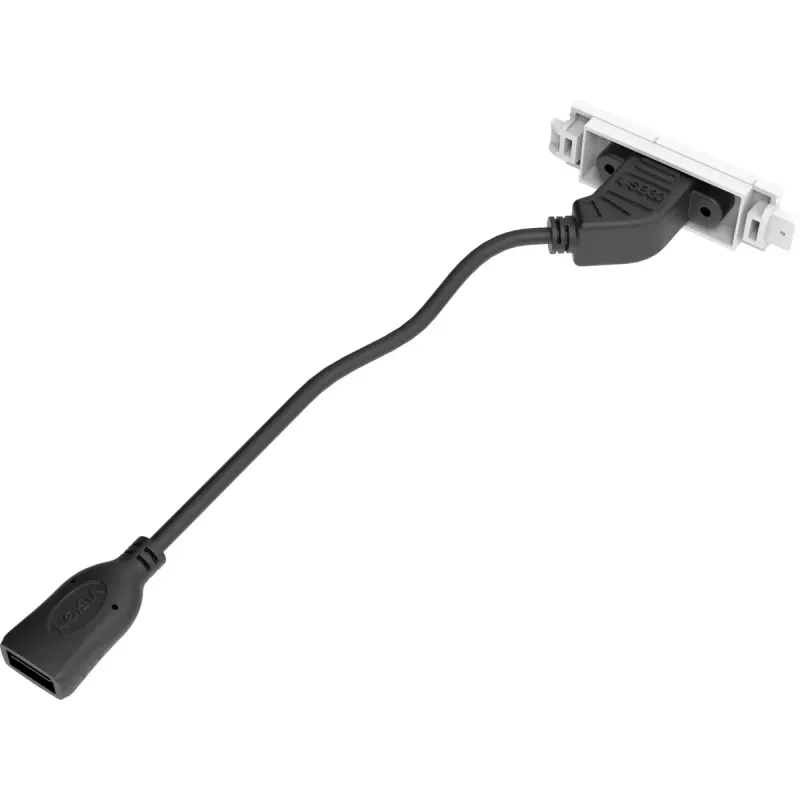

The Vision TC3 USBB is a single-module USB socket outlet providing one USB 3.2 Gen 1 (USB 3.0) connection. Designed for integration into Vision’s Techconnect connectivity faceplate system, the module fits into a surround that can be mounted to a backbox, mudring for hollow walls, or a table faceplate. The unit is manufactured from durable ABS in white, measures approximately 64 mm wide and 21 mm deep, and is ISO 9001:2015 certified.

Advantages

This Techconnect module is future-proof and easy to service: if a module is damaged or requirements change, only the individual module needs replacing rather than the whole faceplate. The system is flexible on site, allowing changes to AV faceplate configuration without replacing the surround. Techconnect parts are engineered for everyday use with reinforcing ribs and strength where required, and the product range has been refined over 15 years to provide a proven, reliable solution.

Suitable for

Key specifications

How to use

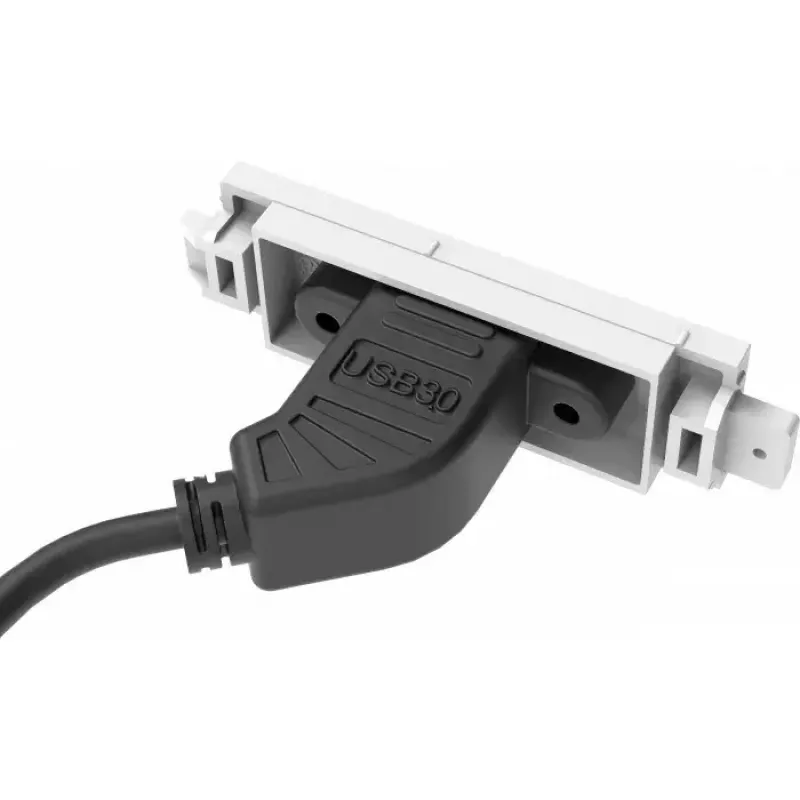

Install the module into a compatible Techconnect surround and secure the surround to the chosen mounting (backbox, mudring or table faceplate). Connect the rear “A” type and front “B” type sockets as required to the device wiring or internal cabling. Ensure wiring follows local electrical regulations and that connections are made with power isolated. Once installed, the USB socket provides a standard USB 3.2 Gen 1 interface for charging and data transfer.

Recommendations

For reliable operation, use appropriate USB cables and ensure the connected equipment supports USB 3.2 Gen 1 speeds. Replace only the damaged module rather than the entire faceplate to maintain the system’s flexibility and longevity.
