Μονάδα πρίζας VGA + 3,5 mm Vision TC3 VGAF3.5MM

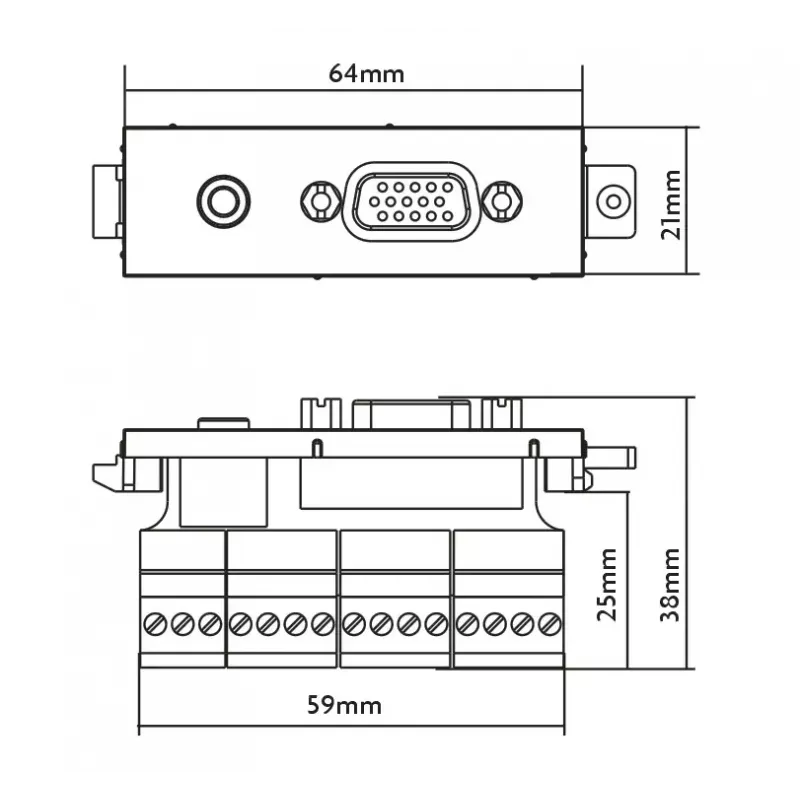

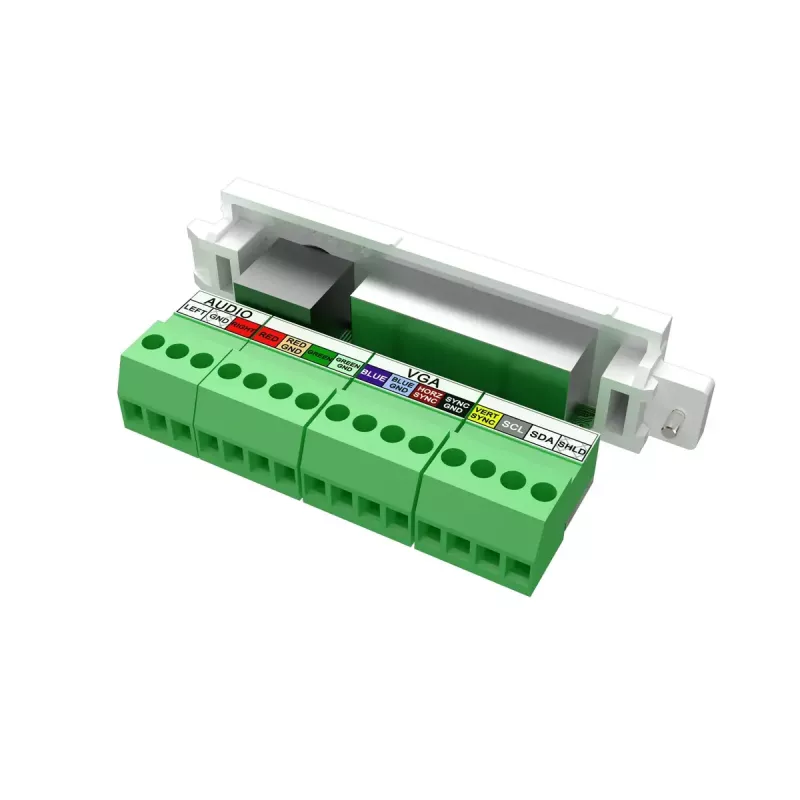

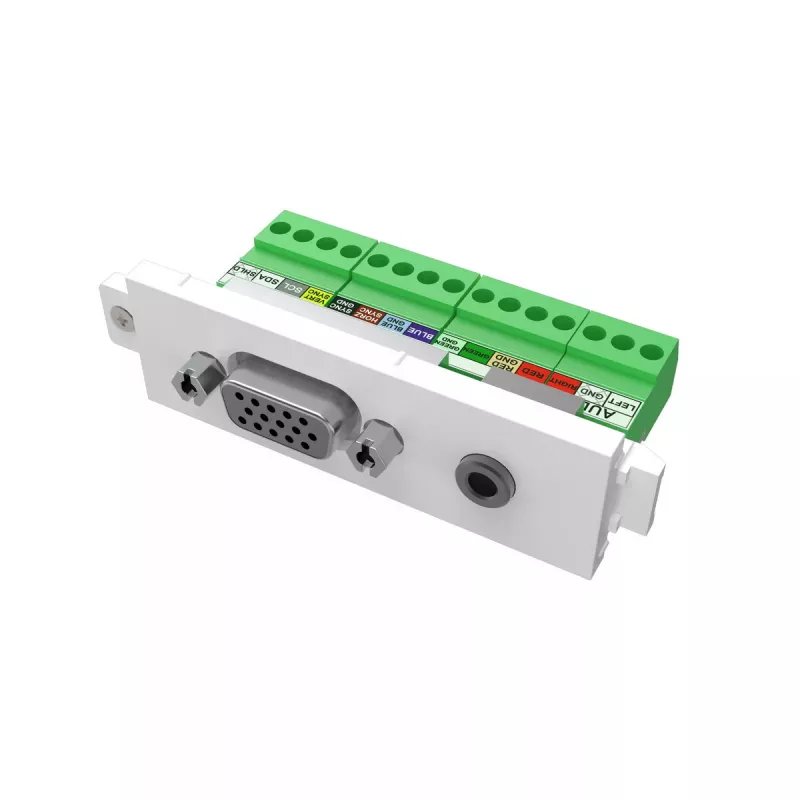

The Vision TC3 VGAF3.5MM socket outlet combines a standard VGA connector and a 3.5 mm audio jack in a compact white module. With overall dimensions of 64 mm width, 38 mm depth and 21 mm height, this outlet is designed for flush mounting in wall plates or modular frames to connect projectors, monitors and external audio sources with reliable signal transmission.

Advantages

The unit provides both video and analog audio connections in a single, space-saving module. Its compact dimensions and standard connector types make installation straightforward and ensure broad device compatibility. The neutral white colour integrates unobtrusively into most interiors and AV installations.

Suitable for

Key specifications

How to use

Mount the module into a compatible wall plate or modular frame according to the frame manufacturer's instructions. Connect the VGA cable from the source device to the VGA socket and plug the 3.5 mm audio cable into the audio jack. Ensure cables are secured and routing does not stress the connectors. Configure the source device's video and audio output settings as required for your display and speakers.

Recommendations

Use shielded VGA and audio cables of appropriate length to minimise signal degradation. For long runs or higher-resolution requirements, consider using digital connections (e.g., HDMI or DisplayPort) where available; use this VGA+3.5 mm outlet when legacy analog connections are required.
